HY-C134-RE new-products

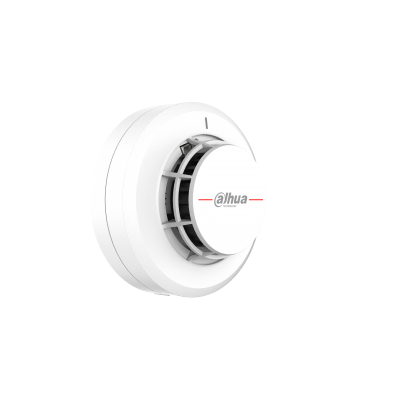

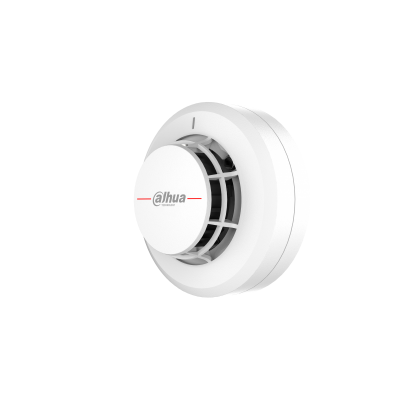

Conventional Smoke Detector

> 4-Wire Conventional Smoke Detector, features a relay output
> The backlight compensation intelligent algorithm allows the smoke detector to automatically adjust the alarm threshold based on maze contamination levels, extending cleaning cycles and simplifying main tenance
> Non-loosening screws on base terminal for easy installation
> Contacts material is highly acid-resistant and rust-resistant
> Designed in accordance with EN54-7 standard


  • Specifications
  • Accessories
  • Download
  • selector-pcimg

    Product Selector

    Technical Specification

    Surveillance Area

    For installation heights below 4 m, the coverage area is 150 m²

    For installation heights between 4 m and 12 m, the coverage area is 80 m²

    Relay Out

    Yes

    Working Principle

    Smoke detection

    Alarm mode

    Indicator light alarm

    Operating Voltage

    DC 24V

    Operating Current

    Static current: ≤ 60μA

    Alarm current: ≤ 20mA

    Operating Temperature

    –10°C to +50°C (14°F to 122°F)

    Operating Humidity

    ≤ 95% RH (no condensation)

    Dimensions (with base)

    Φ100 mm × 46.3 mm (Φ 3.94" × 1.82")

    Weight (with base)

    96 g (0.21 lb)

    Installation

    Ceiling Mount

    Compliance Standard

    EN 54-7
