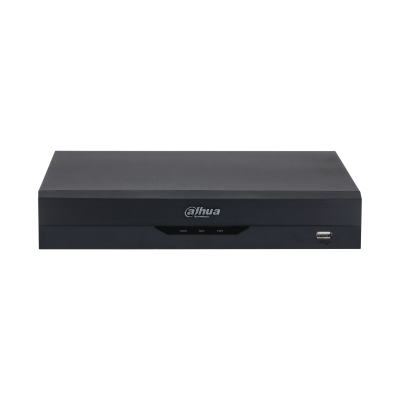

16 Channel Penta-brid 5M-N/1080P Compact 1U 1HDD WizSense Digital Video Recorder

> H.265+/H.265 dual-stream video compression

> Supports Full-channel AI Coding

> Supports HDCVI/AHD/TVI/CVBS/IP video inputs

> Max 24 channels IP camera inputs, each channel up to 6MP; Max 128Mbps incoming bandwidth

> Up to 4 channels video stream (analog channel) Perimeter Protection

> Up to 16 channels video stream (analog channel) SMD Plus

> Up to 2 channels video stream (analog channel) human face recognition

> IoT & POS functionalities

  • Specifications
  • Accessories
  • Download
  • System

    Main Processor

    Embedded processor

    Operating System

    Embedded Linux

    Perimeter Protection

    Perimeter Performance AI by Recorder (Number of Channels)

    Advanced Model: 2 channel, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel

    Face Detection

    Face Attributes

    6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time.

    Face Detection Performance of AI by Recorder (Number of Channels)

    2 channels, and a single channel can detect up to 12 faces.

    Face Recognition

    Face Database Capacity

    Up to 10 face databases and 10,000 pictures.

    Face Recognition Performance of AI by Recorder (Number of Channels)

    2 channels

    SMD Plus

    SMD Plus by Recorder

    Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

    Audio and Video

    Analog Camera Input

    16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

    Camera Input

    1. CVI: 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
    2. TVI: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.
    3. AHD: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.

    IP Camera Input

    16+8 channels, each channel up to 6MP

    Encoding Capacity

    All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15fps); 1080N/720p/960H/D1/CIF (1fps–25/30 fps)


    Supported (D1/CIF (1 fps–15 fps)).

    Video Frame Rate

    PAL: 1 fps–25 fps.
    NTSC: 1 fps–30 fps.

    Video Bit Rate

    32 Kbps–6144 Kbps Per Channel

    Audio Sampling

    8 KHz, 16 bit Per Channel

    Audio Bit Rate

    64 Kbps Per Channel

    Bit Rate Type

    Video stream and composite stream.

    Video Output

    1 HDMI ,1 VGA
    VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
    HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

    It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.

    Multi-screen Display

    When IP extension mode not enabled: 1/4/8/9/16
    When IP extension mode enabled: 1/4/8/9/16/25

    Third-party Camera Access

    Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung;

    Compression Standard

    Video Compression

    AI Coding/H.265+/H.265/H.264+/H.264

    Audio Compression



    Network Protocol


    Mobile Phone Access

    iPhone, iPad, Android


    ONVIF 16.12, CGI Conformant


    Chrome, IE9 or above, Firefox

    Network Mode

    Single-address mode

    Recording Playback

    Record Mode

    Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

    Recording Playback

    It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.

    Backup Method

    USB Device/Network

    Playback Mode

    Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)


    General Alarm

    Motion detection, Video Loss, tampering

    Anomaly Alarm

    No disk, disk error, low space, offline, ip conflict, MAC conflict

    Intelligent Alarm

    Face detection, face recognition, perimeter protection

    Alarm Linkage

    Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email


    Audio Input

    1, RCA (external)
    16, BNC (coaxial)

    Audio Output

    1, RCA

    Two-way Talk

    Yes (share the same audio input with the first channel)

    HDD Interface

    1 SATA Port, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature


    1 Port, for PTZ Control


    2 USB Ports (1 USB 2.0 , 1 USB 3.0)





    Network Port

    1 (10/100/1000 Mbps Ethernet port, RJ-45)


    Power Supply

    DC12V, 2A

    Power Consumption

    Lower than 12 W

    Net Weight

    1.17 kg (2.58 lb)

    Gross Weight

    1.57 kg (3.46 lb)

    Product Dimensions

    Compact 1U, 260.0 mm × 237.4 mm × 47.6 mm (W × D × H) 10.24" × 9.35" × 1.87" (W × D × H)

    Packaging Dimensions

    333.0 mm × 89.0 mm × 315.0 mm (L × W × H)
    13.11" × 3.50" × 12.40" (L× W × H)

    Operating Temperature

    –10 °C to +55 °C (+14 °F to +131 °F)

    Operating Humidity





    CE: CE-LVD: EN 60950-1/IEC 60950-1
    CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
    FCC: Part 15 Subpart B
