Border Security

Back to Solutions
Background

Pain Point: Land Border

  • · Complex Environmental Conditions:

    Land borders are often remote, complex, and do not have adequate light, making it prone to trespassing and area breach.

  • · Lack of Effective Monitoring Means:

    Ordinary surveillance techniques and patrolling personnel are unlikely to be effective 24/7, and may not be able to detect possible threats in time.

  • · High Level of Equipment Protection Requirements:

    The border environment often has high temperature, and windy and sandy weather all year round, which require equipment with high protection level.

Pain Point: Coastline

  • · Poor Visibility Due to Fog:

    Coastlines are prone to heavy fogs due to high humidity in the sea. Traditional visible light detection method cannot accurately detect targets behind the fog.

  • · Corrosion Problem:

    Salinity in coastlines is high. This can make ordinary equipment rusty after a period of time, resulting in a shorter service life. Thus, all equipment deployed in this area must have corrosion resistance to prolong their product life.

  • · Lack of Intelligent Detection：

    At present, there is a lack of effective automatic detection method for coastlines due to the complexity of different types of water vessels, and the interference caused by waves and animals.

Requirements

  • Wide Coverage

    Long border area requires a single camera to cover a larger area

  • Platform Management

    Platform-based management to easily view and manage multiple devices

  • 24/7 Monitoring

    The camera should be capable of monitoring 24/7 under all weather conditions

  • Quick Alarm Push Notification

    When there is an alarm situation, the solution must be able to send an alarm message in time

  • Intelligentization

    The camera should be able to automatically detect targets with high accuracy rate and low false alarm rate

  • Expandability

    After the system is built, the service cycle must be long and the whole system must be expandable to adopt new demand changes

Solution

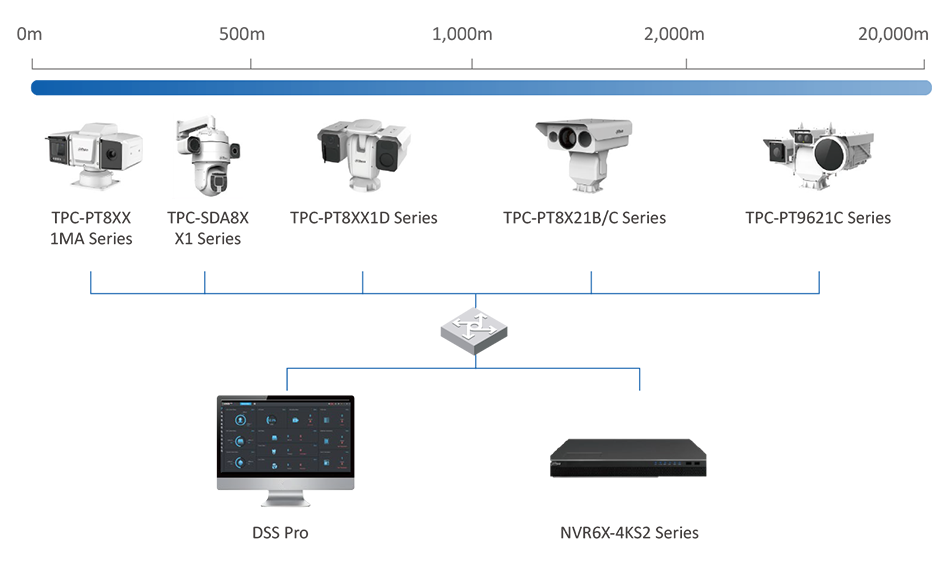

Topology

Perimeter Protection (>2km)

Cooled Long Range Hybrid PTZ Series
  • Thermal

    Lens (mm): 15~300/50~450/65~650/90~900

    Resolution: 640x512

  • Visible

    Lens (mm): 12.5~750

    Resolution: 1080P

  • Pan & Tilt

    Vertical: 0°~360°/sec

    Horizontal: -45~60°/sec

    LRF

  • Application Scenarios:

    Borders, coastlines, ports, critical infrastructures (oil and gas fields, oil pipelines)

  • Value:

    Prevent intrusion

    Prevent border incursions

    Control vessel entry and exit in ports and adjacent sea areas

    Prevent damage to critical infrastructures such as oil and gas fields and oil pipelines

Highlights

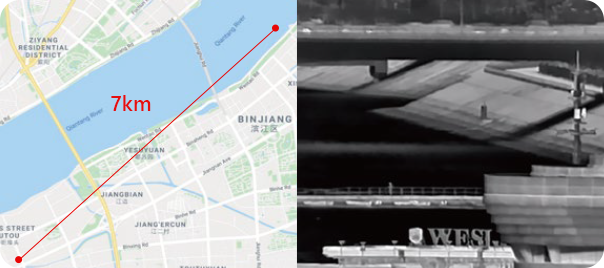

Detection Ability Beyond Visual Range

640x512 cooled thermal detector can spot vehicles up to 20km and human-size targets up to 8km, with fine details.

AI Function Integration

Equipped with built-in deep learning algorithms to meet actual requirements for efficient and accurate video analysis.

High Quality Thermal Images (With Defog)

Thermal imaging can effectively penetrate through fog and haze while maintaining clear images.

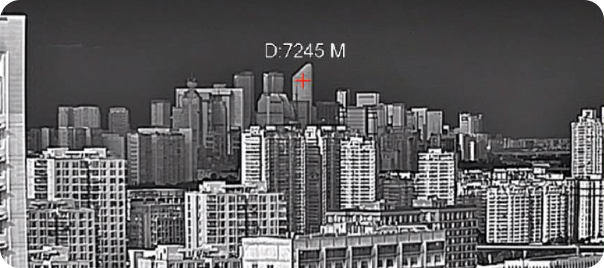

Laser Range Finder

Through the laser range function, the target's distance can be determined quickly, allowing users to act in time accordingly.

Modular System Design

It presents a more flexible and maintainable structured design with different thermal lens alternatives and different visible-light lens alternatives, as well as a laser range finder.

One-key Synchronization

Dahua thermal cameras support one-key synchronization of two images, which can synchronize visible and thermal images to nearly the same field of view with one click, to facilitate users to check the scene from the two image channels.

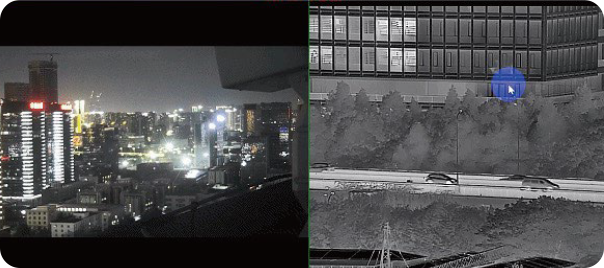

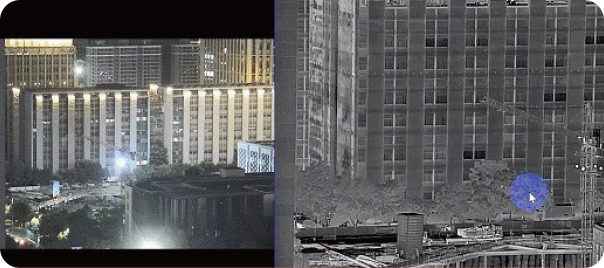

3D Positioning

Support to select any area in the image, the camera will automatically zoom and place this area in the center of the screen, so that the user can observe the target area as soon as possible.

Pic-in-Pic

This function effectively combines the two images (visible and thermal). The user can view these two images simultaneously to obtain more information. It helps users to better judge particular situations in the monitored scene, providing a more efficient surveillance monitoring.

Perimeter Protection (1-2km)

Uncooled Mid-long Range Hybrid Series

TPC-PT8621C

  • Thermal Lens

    20~100mm

    30~150mm

    38~190mm

  • Visible Lens

    15.6-500mm

    12.5~750mm

    16.7~1000mm

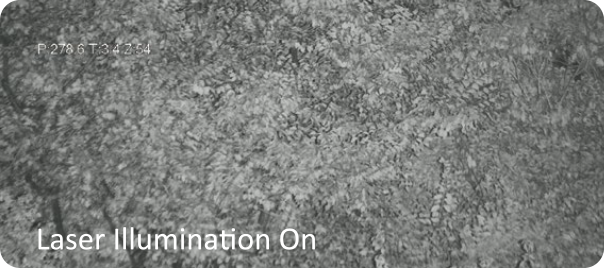

  • Laser Illuminator

    1km

    3 km (optional)

TPC-PT8621B

  • Thermal Lens

    20~100mm

    30~150mm

    38~190mm

  • Visible Lens

    15.6-500mm

    12.5~750mm

    16.7~1000mm

TPC-PTD8621

  • Thermal Lens

    30~150mm (more customizable lenses)

    Visible lens

    12.5~750mm (more customizable lenses)

    Spherical Design for Excellent Wind Resistance

    High Precision PT Unit

Highlights

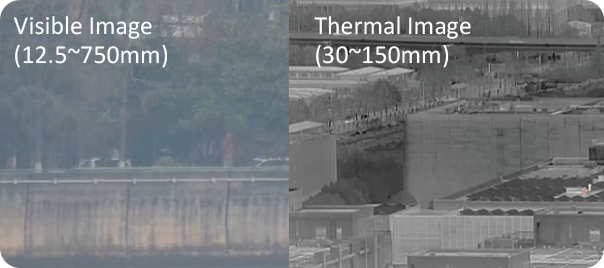

Thermal/Visible Light Camera System

The PTZ series offers a continuous optical and electronic zoom lens. This provides excellent situational awareness while also allowing the possibility to zoom in at suspicious activities, and have a closer look once they are detected.

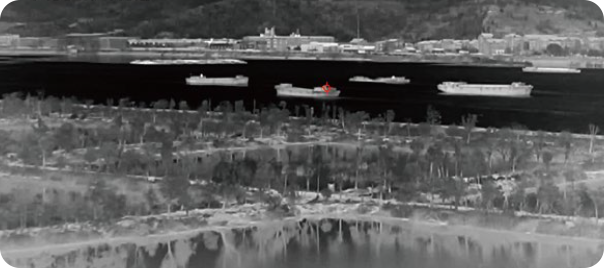

Boat Detection

Visibility on the sea and rivers is often poor at night, making it difficult for authorities to get a clear image of the boat. Thermal imaging cameras have inherent advantages in such scenarios. Combined with Dahua's advanced AI capabilities, they can automatically detect and identify boats.

Multiple Sensors

Includes the uncooled LWIR sensor, CMOS sensor, Laser Illumination (only for the C series), GPS (interface), Electronic Compass & GYRO sensor, etc.

Perimeter Protection (250-1000m)

Uncooled Mid-long Range Hybrid Series

TPC-PT8XX1D

  • Thermal Lens

    50mm

    75mm

    100mm

    Laser Ranger Finder

    1km

  • Visible Lens

    6~336mm



    Laser Illuminator

    800m

TPC-PT8XX1MA

  • Thermal Lens

    7.5mm

    13mm

    25mm

    50mm

  • Visible Lens

    5.5~220mm

    5.5~248mm

    Vehicle-mounted

    Structure Design

  • Auto tracking

TPC-SDA8XX1

  • Thermal Lens

    25mm

    50m

    Visible lens

    5.5~248mm

    Smart linkage between thermal and visible lenses to have full view and details at the same time

    Supports Loudspeaker

Smart linkage
