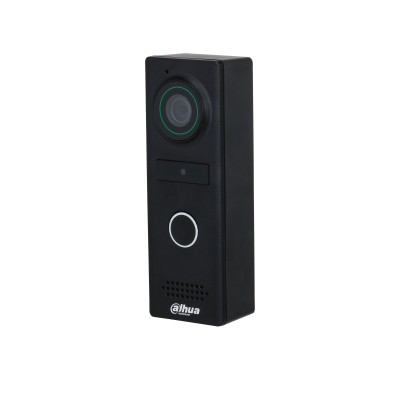

VTO1000JM

Analog Door Station

> Video intercom function: Unlock, voice call, video call and volume
> Multiple bell sounds
> Supports digital wide dynamic range (DWDR)
> Mechanical button
> Metallic appearance
> IK07/IP66


  • Especificações
  • Acessórios
  • Download
  • System

    Button Type

    Mechanical

    Basic

    Camera

    1/4" 1.3 MP CMOS

    Field of View

    Horizontal: 70°
    Vertical: 40°

    WDR

    DWDR

    Illuminator Type

    Auto IR

    Day/Night

    ICR auto switch

    Audio Input

    1 channel to the microphone; pickup distance 0.5 m

    Audio Output

    1 channel to the speaker

    Indicator Light

    1 indicator light; Green: Power on

    Function

    Communication Method

    Analog

    Unlock Mode

    Remote unlock

    Performance

    Casing

    ADC12

    Port

    Unlock Button

    1

    Door Status Detection

    1

    General

    Color

    Black

    Power Supply

    Powered by indoor monitor

    Installation

    Surface mount

    Certifications

    CE/FCC

    Accessory

    Rain cover (included)

    Dimensions

    131.45 mm × 46.00 mm × 33.80 mm (5.18" × 1.81" × 1.33")

    Protection Grade

    IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is
    recommended. For details, see the quick start
    guide.)

    Operating Temperature

    -30°C to +60°C (-22°F to +140°F)

    Operating Humidity

    10%RH–95%RH

    Power Consumption

    ≤ 1W (standby)
    ≤ 3W (working)

    Net Weight

    0.18 kg (0.40 lb)

    Gross Weight

    0.40 kg (0.84 lb)
