KTP04
IP Villa Door Station
DHI-VTO2201F-P
> Anodized alumimum front panel
> CMOS low illumination 2MP HD colorful 140° camera
> Video intercom function
> Access control function that supports two locks
> Mobile phone app, talk to the visitor or unlock the door remotely on your phone
> Supports H.265
> Supports surface and flush mount
> PoE
> IK07&IP65

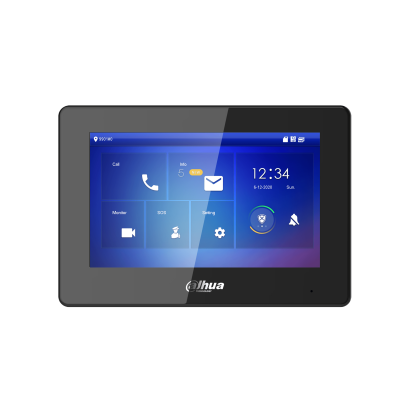

IP Indoor Monitor
> 2.5D screen glass
> 7" TFT capacitive touch screen
> 6-channel alarm input and 1-channel alarm output
> Supports standard PoE
> H.265 video coding (H.264 by default)
> SOS alarm
> Supports daisy chain topology
System
Main Processor
Embedded processor
Operating System
Embedded Linux Operation System
Button Type
Mechanical
Interoperability
ONVIF; CGI
Network Protocol
SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
Basic
Camera
1/2.9" 2MP CMOS Low Illumination HD Colorful Camera
Field of View
Horizontal: 138.6°; vertical: 79.6; diagonal:159°
Focal Length
2.0 mm
WDR
120 dB
Noise Reduction
3D NR
Video Compression
H.265
Video Resolution
50Hz:
Main Stream (720P@25 fps), sub stream (1080P@25 fps)
60Hz:
Main Stream (720P@30 fps), sub stream (1080P@30 fps)Video Frame Rate
25 fps
Video Bit Rate
256 Kbps to 8 Mbps
Light Compensation
Auto IR
Day/Night
Auto (ICR)
Audio Compression
G.711a; G.711u; PCM
Audio Input
1 channel
Audio Output
Built-in speaker
Audio Mode
2-way voice communication
Audio Enhancement
Echo suppression/digital noise reduction
Audio Bit Rate
16 KHz, 16 Bit
Status Indicator Light
3
Port
Electric Lock
1
Alarm Output
1
Power Output
1-ch 12 VDC 100mA
Exit Button
1
Door Status Detection
1
Lock Control
1
Network Port
One RJ45 10M/100M network port
General
Appearance color
Silver
Power Supply
DC 24V 1A
Standard PoEPower Adapter
Optional
Installation
Flush mount
Certifications
CE; FCC; UL
Product Dimensions
130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
Protection
IK07; IP65
Operating Temperature
–30°C to +60°C (–22°F to 140°F)
Operating Humidity
10%–90% (RH, non-condensing)
Operating Altitude
0 m–3000 m
Power Consumption
≤ 8W
Net Weight
0.35 kg (0.77 lb)
Gross Weight
0.4 kg (0.88 lb)
System
Main Processor
Embedded processor
Operating System
Embedded Linux Operation System
Button Type
Touch keypad
Interoperability
ONVIF
Network Protocol
SIP; IPv4; RTSP; RTP; TCP; UDP
ROM
128 MB
RAM
128 MB
CPU
Dual-core 1.2 GHz
Basic
Screen Type
Capacitive
Display Screen
7-inch TFT
Resolution
1024 × 600
Audio Compression
G.711a; G.711u; PCM
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
2-way voice communication
Audio Enhancement
Echo suppression
Audio Bit Rate
16 KHz, 16 Bit
Communication Mode
Full digital
Information Release
Supports viewing text announcement from the center ( insert an SD card to receive and view pictures)
Leave Videos
Yes (SD card inserted in VTH is needed)
Storage
Extensible 64 GB Micro SD card
Port
RS-485
1
Alarm Input
6
Alarm Output
1
Power Output
1, 12V/100mA
Door Bell
Yes, reusing any alarm input port
Network Port
One 10 Mbps/100 Mbps Ethernet port
General
Casing
PC + ABS
Appearance color
White
Power Supply
DC 12V 1A
Standard Poe
Power Adapter
Optional
Installation
Surface mount
Certifications
CE; FCC; UL
Accessory
Bracket (standard)
Alarm ribbon cable (standard)Product Dimensions
189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06")
Operating Temperature
–10°C to +55°C (14°F to 131°F)
Operating Humidity
10%–95% (RH, non-condensing)
Operating Altitude
0 m–3000 m
Power Consumption
Standby ≤ 2W, working ≤ 6W
Net Weight
0.388 kg (0.86 lb)
Gross Weight
0.74 kg (1.63 lb)
General
Network Port
Port 1-4: RJ45 10/100 M (PoE)
Port 5: RJ45 10/100 M (uplink)Appearance color
black
Power Supply
External power adpater: DC 48V–57V
Power Adapter
Standard
Certifications
CE; FCC; UL
Product Dimensions
130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")
Operating Temperature
–10°C to +55°C (14°F to 131°F)
Operating Humidity
5%°–95% (RH, non-condensing)
Operating Altitude
0 m–3000 m
Net Weight
0.29 kg (0.64 lb)
