ASI6213D-W new-products

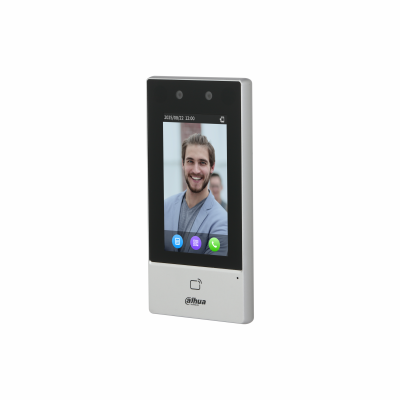

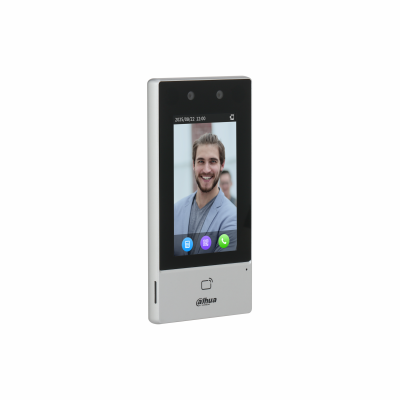

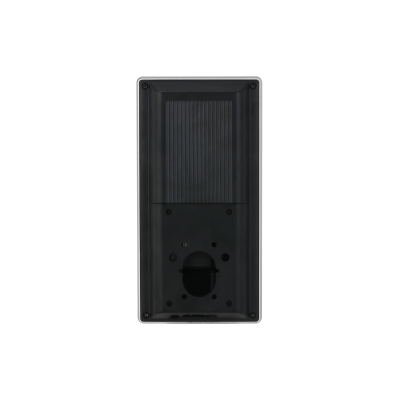

Dahua Single Door Face Recognition,Card Swiping,Password Face Recognition Access Controller

> 4.3 inch glass touch screen with a resolution of 272 × 480.
> 2-MP wide-angle dual-lens camera with IR illumination and DWDR.
> Multiple unlock methods including face, card, password and QR code. You can configure scheduled unlock methods, or combine them to create your own personal unlock methods.
> Supports 6,000 users, 6,000 faces, 10,000 cards, 6,000 passwords, 50 administrators, and 300,000 records.
> Recognizes faces 0.3 to 1.5 m away (0.98–4.92 ft) at an accuracy of 99.9%, and compares 1 face with N faces at the speed of 0.2 sec/person.
> For improved security and to protect against the device being forcefully opened, security module expansion is supported.
> Manages attendance and exports attendance records.
> Features face mask detection and safety helmet detection.
> Supports visitor QR code and doorbell function.
> Video intercom and app control.
> Plays advertisements in video and image format.
> Liveness detection is used to detect spoof attempt, such as using a photo or video to gain access.
> TCP/IP and Wi-Fi connection.
> Supplies power to the electromagnetic lock and card reader, with a maximum output of 12 V and 1 A.


  • Specifications
  • Accessories
  • Download
  • selector-pcimg

    Product Selector

    System

    Main Processor

    Embedded Processor

    Button Type

    Touch button

    Network Protocol

    IPv4;RTSP;UDP;P2P;IPv6;RTP;TCP;SIP

    OSDP Protocol

    Yes

    Interoperability

    ONVIF;CGI

    SDK and API

    Yes

    Basic

    Product Type

    Standalone

    Display Screen

    4.3-inch display screen

    Screen Type

    Capacitive Touchscreen

    Screen Resolution

    272 (H) × 480 (V)

    Camera

    2-MP CMOS HD dual-lens camera

    WDR

    DWDR

    Light Compensation

    Auto IR

    Voice Prompt

    Yes

    Speaker

    Yes

    Casing Material

    PC + ABS

    Function

    Verification Method

    Card;Password;QR Code;Face Recognition

    Door Open Notification Mode

    Quick mode;Simple mode;Standard mode;Comparison mode

    Period List

    128 periods

    Holiday Period

    128 periods

    Network Update

    Yes

    First User Unlock

    Yes

    Remote Verification

    Yes

    Restricted List/Trusted List

    Yes

    Advertisement Playing

    Plays advertisements in video and image format

    Peripheral Card Reader

    1 × RS-485 card reader

    1 × Wiegand card reader

    Multi-user Authentication

    Yes

    Real-time Monitoring

    Yes

    Multi-factor Authentication

    Yes

    Capture Function

    Yes

    Web Configuration

    Yes

    Auto Registration

    Yes

    RFID

    Card Type

    IC card (Mifare card);Desfire card (EV3,Compatible with Dahua card by default)

    Modulation Type

    ASK

    Frequency Range

    13.56 MHz

    Max. Transmission Power

    42 dBuA/m@10 m

    Network

    Max. Transmission Power

    ≤20 dBm@2,400–2,483.5 MHz

    Wi-Fi

    Yes

    Wireless Standard

    IEEE802.11b/802.11g/802.11n

    Wireless Frequency Range

    2.4 GHz

    Performance

    IC Card Encryption

    Yes

    Card Reading Distance

    0 cm–3 cm (0"–1.18")

    Face Recognition Height Range

    0.9 m–2.2 m (2.95 ft–7.22 ft)

    Face Recognition Distance

    0.3 m–2.0 m (0.98 ft–6.56 ft)

    Face Recognition Accuracy

    99.9%

    Face Recognition Time

    0.2 s

    User

    User (Card) Type

    Normal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2

    Capacity

    Face Image Capacity

    6,000

    User Capacity

    6,000

    Card Capacity

    10,000

    Password Capacity

    6,000

    Record Capacity

    300,000

    Port

    RS-485

    1 port that can also be used by the Wiegand card reader.

    Wiegand

    1 port that can also be used by the RS-485 card reader.

    USB

    1 × USB2.0 port

    Network Port

    1 × 10/100 Mbps Ethernet port

    Alarm Linkage

    Yes

    Doorbell

    1 channel

    Exit Button

    1 channel

    Door Status Detection

    1 channel

    Lock Control

    1 channel

    Power Output Port

    1 channel (12 V, 1.0 A)

    Alarm

    Anti-pass Back

    Yes

    Tamper Alarm

    Yes

    Duress Alarm

    Yes

    Door Sensor Timeout

    Yes

    Intrusion

    Yes

    Illegal Card Exceeding Threshold

    Yes

    General

    Power Adapter

    Included

    Power Supply

    12 VDC, 2 A

    Power Consumption

    ≤12 W

    Product Dimensions

    167.4 mm × 84.4 mm × 24.0 mm (6.59" × 3.32" × 0.94") (H × W × D)

    Packaging Dimensions

    219 mm × 122 mm × 58 mm (8.62" × 4.80" × 2.28") (H × W × D)

    Transport Package Dimensions

    513 mm × 375 mm × 469 mm (20.20" × 14.76" × 18.46") (H × W × D)

    Operating Temperature

    –10 °C to +45 °C (+14 °F to +113 °F)

    Operating Humidity

    0%–90% (RH), non-condensing

    Operating Altitude

    0 m–1,300 m (0 ft–4265.09 ft)

    Operating Environment

    Indoor

    Gross Weight

    0.41 kg (0.90 lb)

    Accessory

    The bracket is included.

    Installation

    Wall Mount;Floor Bracket Mount;Desk Bracket Mount

    Storage Temperature

    –20 °C to +70 °C (–4 °F to +158 °F)

    Storage Humidity

    30%–75%
