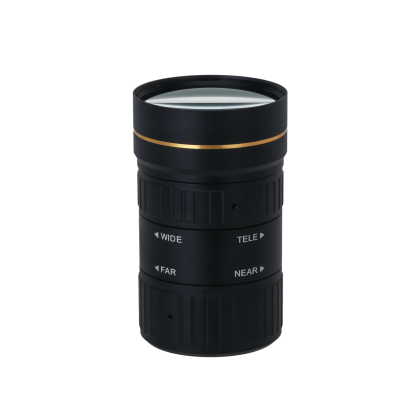

PFL1640-L12P

12MP 1.1" 16-40 mm F1.4 Manual Vari-focal Lens (P-iris)

> 12 MP, strong compatibility.
> 1.1" image sensor with strong compatibility.
> 16-40 mm focal length and F1.4 aperture, covering most surveillance scenes.
> IR correction for 24-hour real-time monitoring.
> Standard C mount for easy installation and strong compatibility.


  • Specifications
  • Accessories
  • Download
  • Performance

    Image Sensor Size

    1.1"

    Focal Length

    16-40 mm

    Lens Pixel

    12 MP

    Aperture

    F1.4 ± 10%

    IR Correction

    Yes

    CRA(Chief Ray Angle)

    Total Optical Length

    130 mm ± 0.3 mm (5.12" ± 0.01") (in air)

    Flange Back Focal Length

    17.52 mm ± 0.2 mm (0.69" ± 0.01") (in air)

    Mechanical Back Focal Length

    11.6 mm ± 0.2 mm (0.46" ± 0.01") (in air)

    Field of View

    1.1":

    W: 60.3° × 50.1° × 34.4°

    T: 25.3° × 21.2° × 14.7°@17.55 mm × 14.47 mm × 9.936 mm

    TV Distortion

    < –9% (wide angle) – < 1.2% (telephoto)

    Minimum Object Distance (MOD)

    W: 1.5 m (4.92 ft); T: 2.5 m (8.20 ft)

    Control Mode

    Zoom Control

    Manual

    Focus Control

    Manual

    Iris Control

    P-iris

    Port

    Port Type

    C mount

    Structure

    Dimension

    Ø66 mm × 112.4 mm (Ø2.60" × 4.43")

    Appearance Color

    Black

    Casing

    Metal

    Net Weight

    0.738 kg ± 0.01 kg (1.62 lb ± 0.02 lb)

    Packaging Method

    20 pcs in each master carton

    Packaging Dimensions

    615 mm × 345 mm × 250 mm (24.21" × 13.58" × 9.84") (L × W × H)

    Environment

    Operating Temperature

    –30 °C to +70 °C (–22 °F to +158 °F)

    Operating Humidity

    95% (RH)

    Storage Temperature

    –40 °C to +85 °C (–40 °F to +185 °F)

    Storage Humidity

    95% (RH)

    Ordering Information

    Type

    Part Number

    Description

    HD Vari-focal Lens

    DH-PFL1640-L12P

    Dahua HD 1.1" 16-40 mm F1.4 Manual Vari-focala Lens (P-iris)

    HD Vari-focal Lens

    PFL1640-L12P

    HD 1.1" 16-40 mm F1.4 Manual Vari-focala Lens (P-iris)
