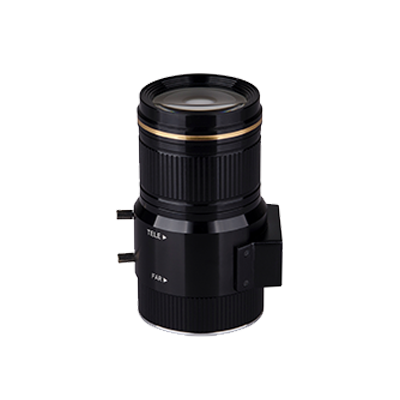

PLZ21C0-P

12MP 1/1.7" 10.5-42 mm Manual Vari-focal Lens

> Beautiful and elegant appearance
> Day and night applicable, effective IR correction
> 12MP for excellent imaging
> Standard interface, easy installation and strong camera compatibility
> RoHS-compliant, CE-marked and FCC-approved


  • Specifications
  • Accessories
  • Download
  • Performance

    Image Sensor Size

    1/1.7"

    Focal Length

    10.5 mm–42 mm

    Pixel

    12MP

    Max. Aperture

    F1.5 (W)–F1.7 (T)

    IR Correction

    Yes

    Chief Ray Angle (CRA)

    2.3° (W)–3.7° (T)

    Total Optical Length

    102.3 mm (40.27")

    Flange Back Focal Length

    12.5 mm (4.92")

    Mechanical Back Focal Length

    8.32 mm (3.27")

    Field of View

    1/1.7":
    W: 46.3° × 36.7° × 27.3° (Diagonal × Horizontal × Vertical)
    T: 14.3° × 10.2° × 8.5° (Diagonal × Horizontal × Vertical)
    1/1.8":
    W: 44.6° × 35.3° × 26.3° (Diagonal × Horizontal × Vertical)
    T: 13.8° × 10.9° × 8.1° (Diagonal × Horizontal × Vertical)
    1/2":
    W: 39.4° × 31.3° × 23.3° (Diagonal × Horizontal × Vertical)
    T: 12.2° × 9.7° × 7.2° (Diagonal × Horizontal × Vertical)

    Distortion

    –6.2% to –2.1%

    Minimum Object Distance (MOD)

    1 m (3.28 ft)

    Lens Control

    Zoom

    Manual

    Focus

    Manual

    Iris

    P-iris

    Mount

    Mount Type

    CS mount

    General

    Product Dimensions

    Ø52.0 mm × 90.5 mm (Φ20.47" × 35.63")

    Color

    Black

    Casing

    Metal

    Net Weight

    0.32 kg (0.71 lb)

    Gross Weight

    0.38 kg (0.84 lb)

    Packaging Method

    40 pcs in each master carton

    Packaging Dimensions

    Inner carton: 126.0 mm × 87.0 mm × 78.0 mm (49.61" × 34.25" ×30.71") (L × W × H)

    Environment

    Operating Temperature

    –30°C to +70°C (–22°F to +158°F)

    Operating Humidity

    10%–90% (RH)

    Storage Temperature

    –30°C to +70°C (–22°F to +158°F)

    Storage Humidity

    10%–90% (RH)
