TPC-HBB

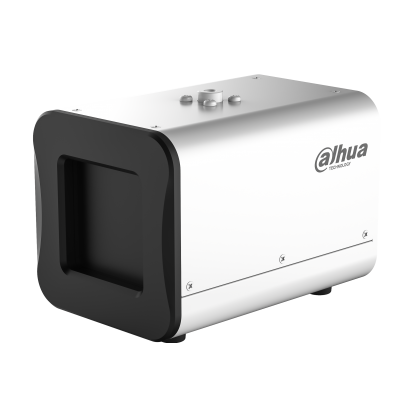

Black body is the calibration device that maintains a constant temperature as a reference point for the thermal camera, to make sure the thermal camera can present the most accurate temperature.
The thermal camera coupled with the blackbody calibration device delivers a contactless solution for continuous, contactless, and non-invasive temperature monitoring.
Technical Specification
Default calibration temp.
35.0°C (95°F)
Range
Ambient temp.+5.0°C (9.00°F) to 50.0°C (122°F)
Effective radiation surface
70 mm × 70 mm (2.76" ×2.76")
Resolution
0.1°C (0.18°F)
Accuracy
±0.2°C (0.36°F)
Stability
±(0.1 to 0.2)°C/30min [±(0.18 to 0.36)°F /30min]
Emissivity
0.97 (±0.01)
Power supply
100-240V AC, 50/60Hz, 0.5A
Net weight
2.35 kg (5.18 lb)
Size (W × H × D)
125 mm × 125 mm × 184 mm (4.92" ×4.92"×7.24")
Operating temperature
0°C to 40°C/≤80%RH [32.18°F to 104.00°F/≤80%RH]
Storage temperature
-10°C to 50°C/≤80%RH [-50.00°F to 122.00°F/≤80%RH]
