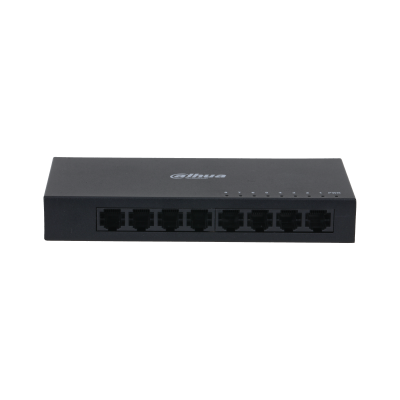

PFS3008-8ET

Unmanaged Desktop Switch

> Plug and play: No configuration required
> Robust design: 24/7 stable performance in operating temperature from 0°C to 40°C
> Optimized performance: Provides full-speed transmission in all ports simultaneously
> Flexible deployment: Supports desktop and wall mount


  • Especificações
  • Acessórios
  • Transferir
  • selector-pcimg

    Seletor de Produtos

    Performance

    Layer

    Layer 2

    Hardware

    Standard Power Supply

    Yes

    Ethernet Port

    8

    Ethernet Port Rate

    1000 Mbps

    Power Supply

    5V/600mA DC

    Operating Temperature

    –10°C to +55°C (+14°F to +131°F)

    Operating Humidity

    10%–90% (RH)

    Storage Temperature

    –20°C to +70°C (–4°F to +158°F)

    Storage Humidity

    10%–90% (RH)

    Power Consumption

    < 3W

    Performance

    Switching Capacity

    1.6 Gbps

    Packet Forwarding Rate

    1.1904 Mpps

    Packet Buffer Memory

    768 Kbit

    MAC Table Size

    2K

    Standards Compliance

    IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE802.3az

    General

    ESD

    Air discharge: 8kV

    Contact discharge: 6kV

    Thunderproof

    Common mode: 2kV

    Net Weight

    210 g (0.46 lb)

    Dimensions

    150 mm × 70 mm × 22.6 mm (5.91" × 2.76" × 0.89")

    (L × W × H)
