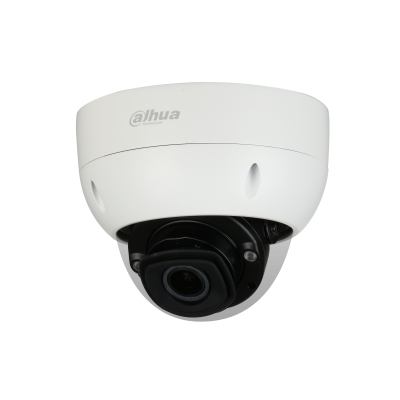

8MP IR Dome WizMind Network Camera
> 8MP, 1/1.8” CMOS image sensor, low illuminance, high image definition
> Max outputs 8MP (3840×2160) @ 25 fps/30 fps
> H.264&H.265 coding, high compression ration
> Wide dynamic, day/night, 3D NR, AWB, HLC, BLC
> ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> With deep learning algorithm, it supports people counting, face detec tion, perimeter protection etc
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card, built-in ports, without cables
> 24V AC/12V DC/PoE power supply
> Three streams for two-channel HD video
> IP67, IK10 protection grade
> 12V DC power output, max. current 165mA , easy for installation
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/1.8” 8Megapixel progressive CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | 3840 (H) × 2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 4 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 2 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.003 Lux@F1.2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Distance | Distance up to 40 m (131.23 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR LEDs Number | 3 (IR LEDs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Motorized vari-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type | Module interface | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.7mm-12mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | Horizontal: 114°(W)–47°(T) Vertical: 59°(W)–27°(T) Diagonal: 141° (W–55°(T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Type | Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | w: 1 m (W: 3.28 ft) T: 2.5 m (T: 8.20 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
W | 87.2 m (286.09 ft) | 34.9 m (144.50 ft) | 17.4 m (57.08 ft) | 8.7 m (28.54 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
T | 186.7 m (612.53 ft) | 74.7 m (245.08 ft) | 37.3 m (122.37 ft) | 18.6 m (61.02 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart event | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General IVS Analytics | Abandoned object, moving object | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Professional, intelligent | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection | Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | Support face image capture | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Attributes | Support 6 kinds of face attributes extraction: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting | Count the entry number and exit number , display and output daily/monthly/annual report Count people in area, display and output daily/monthly/annual report | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265, H.264, H.264H, H.264B, MJPEG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main Stream: 3840 × 2160 (1–25/30 fps) Sub Stream 1: 704 × 576 (1–25/30 fps) Sub Stream 2: 1920 × 1080 (1–25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 8M (3840 × 2160)/6M (3072 × 2048/3072 × 1728)/5M (2592 × 1944)/4M (2688 × 1520)/3M (2048 × 1536/2304 × 1296)/1080p(1920 × 1080)/1.3M (1280 × 960)/720p(1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 32 Kbps–16384 Kbps H.265: 12 Kbps–16384 Kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | ICR switch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D DNR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest(RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Image Stabilization(EIS) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart IR | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution or below.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711a; G.711Mu; G726; AAC; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol | HTTP; Https; 8021.x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec;Bonjour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 20 (Total bandwidth: 160 M.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Storage | FTP; Micro SD card (256 G); NAS; SFTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE: Versions later than IE9 Chrome: Versions later than Chrome 42, Firefox: Versions later than Firefox 48.0.2, | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone | IOS, Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN60950-1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 | 1 (Bit rate: 1200 bps-115200 bps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | Audio Interface: 1/1 channel In/Out | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | Audio Interface: 1/1 channel In/Out | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 3 channel In: 5mA 5V DC 2 channel Out: 1000mA 30V DC/500mA 50V AC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 3 channel In: 5mA 5V DC 2 channel Out: 1000mA 30V DC/500mA 50V AC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12V DC/24V AC/PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | <15.7W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | -40°C to +60°C (-40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | -40°C to +60°C (-40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection | IP67, IK10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Metal + Plastic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 129.1 mm × Φ157.9 mm (5.08" × Φ6.22") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 1600 g (3.53 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 1500 g (3.31 lb) |
