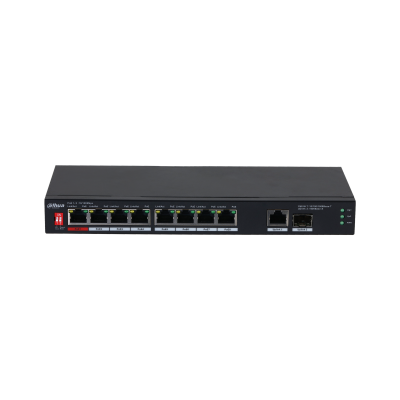

PFS3110-8ET1GT1GF-96

10-Port Unmanaged Desktop Switch with 8-Port PoE

> 100 Mbps PoE ports and gigabit uplink ports.
> The red port meets the IEEE 802.3bt standard.
> Power supply supports up to 90 W.
> PoE watchdog monitors the status of terminals in real-time.
> Supports 250 m long-distance power supply.
> Supports the power management policy.
> 8-pin PoE offers better compatibility and reduces cable loss.
> Durable full-metal housing provides great heat dissipation.


  • Especificações
  • Acessórios
  • Download
  • Hardware

    Included Power Adapter

    Yes

    PoE

    Yes

    Ethernet Port

    8

    Ethernet Port Speed

    10/100 Mbps

    Ethernet Port Uplink Speed

    10/100/1000 Mbps

    Optical Port Uplink Speed

    1 Gbps

    Description of Function Slots

    Port 1-8: 8 × 10/100 Base-T (PoE)
    Uplink 1: 1 × 10/100/1000 Base-T
    Uplink 2: 1 × 1000 Base-X

    Power Supply

    53 VDC, 1.81 A

    Operating Temperature

    –10 °C to +55 °C (+14 °F to +131 °F)

    Operating Humidity

    10%–90% (RH)

    Storage Temperature

    –40 °C to +70 °C (–40 °F to +158 °F)

    Storage Humidity

    5%–95% (RH)

    Power Consumption

    Idling: 3 W
    Full load: 96 W

    Performance

    Layer

    Unmanaged

    Management Type

    No

    Smart Managed Switch

    No

    MTBF

    105.24 year

    Switching Capacity

    5.60 Gbps

    Packet Forwarding Rate

    4.17 Mpps

    Packet Buffer Size

    4 Mbit

    Jumbo Frame

    9K Byte

    MAC Table Size

    8K

    Communication Standard

    IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3x

    PoE

    PoE Protocol

    IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

    PoE Power

    Port 2-8 ≤30 W, port 1 ≤90 W, total ≤96 W

    PoE Power Consumption Management

    Yes

    PoE Pin Assignment

    1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

    Long Distance PoE Transmission

    Yes

    General

    Statics Protection

    Air discharge: 8 kV
    Contact discharge: 6 kV

    Lighting Protection

    Common mode: 4 kV
    Differential mode: 2 kV

    Net Weight

    0.65 kg (1.43 lb)

    Gross Weight

    1.4 kg (3.09 lb)

    Product Dimensions

    240 mm × 105 mm × 28 mm (9.45" × 4.13" × 1.10")

    Packaging Dimensions

    279 mm × 239 mm × 89 mm (10.98" × 9.41" × 3.50")

    Casing Material

    Metal

    Installation

    Desktop mount

    Certifications

    CE; FCC
