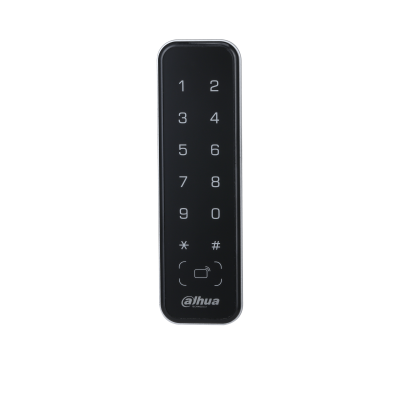

ASR2201A-D
Access Reader
> PC material, tempered glass panel and IP66, suitable for indoor and outdoor use.
> Support contacless recognition of ID card.
> Support card/password unlock.
> Support communication through RS-485 and Wiegand 34 (Wiegand 26 can be configured).
> Support buzzer and indicator prompt.
> Support anti-tampering alarm.
> The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment.
> All connection ports have overcurrent and overvoltage protection.
Basic
Product Type
Slim Card Reader
Buzzer
Yes
Casing
Tempered glass/PC
Function
Unlock Mode
Card swiping/password
Multiple unlocking modes
Card Type
ID card
Modulation Type
AM
Frequency Range
125 kHz
Max Transmission Power
66 dBuA/m @10 m
Performance
Response Time
0.1 s
Card Reading Distance
0 cm–5 cm (0"–1.97")
Port
RS-485
1 channel
Wiegand
1 output channel
Alarm
Tamper Alarm
Yes
General
RS-485
1 channel
Power Supply
12V 0.5A DC
Protection
IP66 (silicon sealant is needed, see the manual)
Power Consumption
Standby ≤ 0.9W, working ≤ 1.7W
Product Dimensions
135 mm × 40 mm × 15 mm (5.31" × 1.57" × 0.59")
(L × W× H)
Packaging Dimensions
195 mm × 75 mm × 52 mm (7.68" × 2.95 × 2.05")
(L × W× H, 1 in inner carton)
415 mm × 400 mm × 230 mm (16.34" × 15.75" × 9.06") (L × W × H, carton)Operating Temperature
–30°C to +70°C (–22°F to +158°F)
Operating Humidity
5%RH–95% (non-condensing)
Operating Environment
Indoor; outdoor
Gross Weight
0.16 kg (0.35 lb)
Installation
Surface mount
Certifications
CE; FCC
