450m Security Radar
> 24/7 all-weather
> Wide-range detection
> High accuracy
> Target filtering
> Radar-PTZ linkage
> Front-end PTZ control
> Centralized management
> Smart tracking
> IP67/IK10
> CE RED
Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Number of Targets | 32 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detection Distance | Human: 450.0 m (1476.38 ft) Vehicle: 600.0 m (1968.50 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detection Angle | Horizontal: 90° Vertical: 13° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Detection Speed | 80 km/h, continuous trajectory | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Detection Speed | 1.8 km/h, continuous trajectory | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Distance Accuracy | ± 1.5 m (± 4.92 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle Accuracy | ± 1° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Number of Areas | 10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Modulation Type | FMCW | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scan Frequency | 8 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Frequency | 24 GHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detection Target Type | Human and vehicle | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Radar+PTZ Smart Tracking | Supported on web manager | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Track Mode | Tour, distance priority, and time priority | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region Setting | Alarm area, pre-warning area, and shield area | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Target Filtering | Human and vehicle filtering | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode | Manual record, scheduled record, and alarm record Record priority: Manual>Alarm>Scheduled | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Restore to Factory Default | Restore to default settings with one click | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security | Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Positioning | GPS, Glonass | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Map Encoding | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet | RJ-45 (10Base-T/100Base-TX) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF Profile S&G, CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Management | 19 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | NAS; FTP; micro SD card (256 G) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE: Versions later than IE7 Google: Versions earlier than Chrome45 Firefox: Versions earlier than Firefox46 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | SmartPSS, DSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 1 channel (support 5V DC potential and 5mA current) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 5 channels (wet contact; support max 12V DC potential and max 300mA current) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage | Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, electronic map displaying, and email sending | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event | Radar alarm, no SD card, insufficient SD card storage, SD card error, network disconnection, IP conflict, full disk, and illegal access | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SD Card | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicator Light | Network connection: Yellow Running status: Red/Green Power: Green | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | DC 12V (±30%), AC 24V (±30%), PoE (802.3at) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 20W Max.: 24W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40°C to +65°C (–40°F to +149°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | –40°C to +80°C (–40°F to +176°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | ≤95% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade | IP67/IK10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ESD | Contact discharge: 6k Air discharge: 8k | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Surge Protection Grade | Common mode: ± 6kV Differential Mode: ± 2kV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Color | White | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | ADC12+PC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 244.9 mm × 184.9 mm × 61.2 mm (9.64" × 7.28" × 2.41") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions | 328.0 mm × 146.0 mm × 278.0 mm (12.90"×5.75" × 10.95") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 2.0 kg (4.41 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 3.2 kg (7.06 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

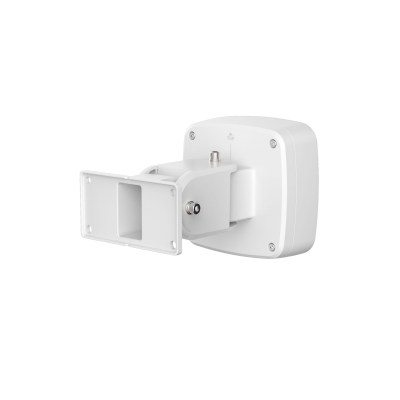

Installation Method | Wall mount, ceiling mount, pole mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Height | 3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to 16.40 ft) (9.84 ft recommended) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Position | Install separately | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE: EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1 |
Package Information | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security radar | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Waterproof connector for network cable | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wrench | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Quick start guide | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Quality certificate | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Legal and regulatory information | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QR code label | 1 |
