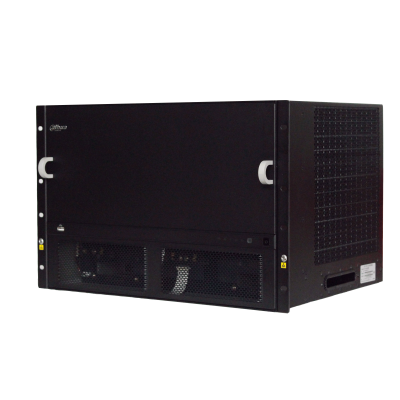

DSCON3000-7U

Multi-screen Controller

> 19” standard 7U ATCA industry box

> Easy and flexible configuration with pluggable card module design

> High speed passive rear panel design, reliable and stable

> FPGA array framework, built in ultrahigh bandwidth switch matrix, high image processing capacity, flexible data exchange

> PCI-E bus, high system bandwidth

> Support analog/digital video signals input and matrix output

> Support non-compressed digital signal encoding output

> Support 4K/30fps video inputs and 4K/30fps outputs

> Maximum 320ch@1080P or 1280ch@D1 signal decoding (full configured)

> Remote cast analog/digital video onto the video-wall

> Redundant power optional and smart temperature controlled fan

> Remote reboot/upgrade/default setting and other operations


  • Spezifikationen
  • Zubehöre
  • Herunterladen
  • Model

    Model

    DSCON3000-7U

    System Parameter

    Main Processor

    Intel X86 Baytrail microprocessor

    Operating System

    Embedded LINUX

    Bus

    PCI-E

    Slot

    22(2 Main Control Board Slot, 20 Video Function Board)

    Mainframe

    Power module (redundant power optional), main control board, control board, PCI-E bus rear panel, smart temperature controlled fan

    Video Input Card

    Max. 20

    Video Output Card

    Max. 20

    Video Input

    VI0201UH-DC3000(HDMI)

    Interface

    2ch HDMI1.4 support HDCP

    Access Capability

    2ch@4K, downward compatibility

    VI0401HH-DC3000(HDMI)

    Interface

    4ch HDMI1.3 support HDCP

    Access Capability

    4ch@1080P, support resolution: 1080P/720P/UXGA/SXGA+/SXGA/XGA/SVGA/VGA

    VI0801HH-DC3000(HDMI)

    Interface

    8ch HDMI1.4 support HDCP and I-SYSTEM

    Access Capability

    8ch 1080P@60Hz(30fps effective), support resolution: 1080P/720P/UXGA/SXGA+/SXGA/XGA/SVGA/VGA

    VI0401HD-DC3000 (DVI-I)

    Interface

    4ch DVI-I (support VGA/HDMI1.3 with convertor)

    Access Capability

    4ch@1080P, support resolution: 1080P/720P/UXGA/SXGA+/SXGA/XGA/SVGA/VGA

    VI0401HS-DC3000(3G-SDI)

    Interface

    4ch BNC

    Signal Format

    3G-SDI, 2.97Gbps

    Access Capability

    4ch@1080P, downward compatibility

    VI3201FB-DC3000 (CVBS)

    Interface

    2ch DVI-D, 2 BNC interface braided lines which is 16 in 1

    Signal Format

    PAL

    Access Capability

    32ch@960H or D1

    Network Video

    Transfer Protocol

    TCP/UDP/RTP/RTSP/RTCP

    Support Device

    IPC, NVR, EVS and etc.

    Video Resolution

    4K/1080P/UXGA/720P/D1/HD1/2CIF/CIF/QCIF

    Video Output (Without decoding)

    VO0801HH-DC3000 (HDMI)

    Interface

    8ch HDMI1.3

    Split

    Max 32 layers

    Resolution

    1920*1080@60Hz(30fps effective)/1600*1200@60fps/1400*1050@60fps/1366*768@60fps/1280*720@60fps/1280*1024@60fps/1024*768@60fps

    VO0401HS-DC3000(3G-SDI)

    Interface

    4ch BNC

    Split

    Max 32 layers

    VO0801HS-DC3000(HD-SDI)

    Interface

    8ch BNC

    Split

    Max 32 layers

    Video Decoding Output

    VO0405UH-DC3000(HDMI)

    Interface

    4ch HDMI1.4

    Split

    1/4/9/16/32, free split

    Decoding Capability

    2ch@12Mp(15fps)/4ch@4K(25fps)/16ch@1080P(25fps)/32ch@720P(25fps)/64ch@D1(25fps), supporting H.265

    Resolution

    3840*2160@30fps(HDMI 2, 3)/1920*1080@60fps/1600*1200@60fps/1400*1050@60fps/1366*768@60fps/1280*1024@60fps/1280*720@60fps/1024*768@60fps

    Matrix Switch

    Video Input

    Analog Camera, Digital Camera, IPC, NVR, EVS and etc.

    IP HD Matrix Switch

    1024 IP input, 160ch@1080p, 320ch@720p, 640ch@D1

    Video-Wall

    VideoWall Splicing

    Splicing

    Support videowall splicing (max 160 LCD display units)

    Video-Wall

    Support Splicing/Zoom/Merge/Roam/Overlay

    Input Source

    HD/SD, Digital/Analog (support hybrid input)

    Output Port

    HDMI

    Control Mode

    PC client/Local GUI/Network Keyboard/iPad

    Network

    Interface

    2 RJ-45 ports (10/100/1000M)

    Serial Port

    4 RS232 ports (1 DB9, 3 RJ45), for console and control

    1 RS485 port

    USB

    3 USB2.0, 1 USB3.0

    Environmental

    Power Supply

    100~120V AC, 200~240V AC (Redundant power optional)

    Power Consumption

    90W(Minimum system)/590W(Full configuration)

    Working Environment

    -10°C ~+55°C (14 °F to 131 °F) / 10~90%RH / 86~106kpa

    Dimension

    7U, 482.6 × 434 × 310 mm (19 × 17.1 × 12.2 inch), (W*D*H)

    Weight

    ≤35Kg (77.16 lb) (full configured)
