HAC-HFW1200R-Z-IRE6(-A)

2MP HDCVI IR Bullet Camera

* The parameters and datasheets below can only be applied to 1200-S5 series.

> Max 30fps@1080P

> HD and SD output switchable

> 2.7-12 mm motorized lens

> Built-in mic(-A)

> Max. IR length 60 m, Smart IR

> IP67, DC12V


  • Spezifikationen

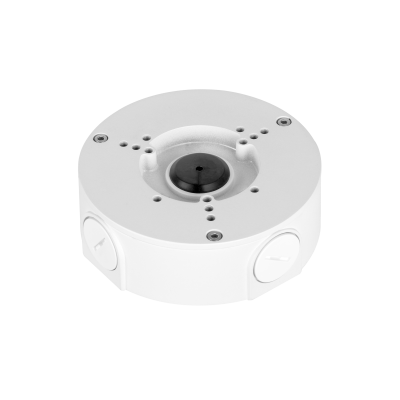

  • Zubehöre
  • Herunterladen
  • Camera

    Image Sensor

    1/2.7 inch CMOS

    Effective Pixels

    1920(H)×1080(V), 2MP

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL: 1/25s–1/100000s
    NTSC: 1/30s–1/100000s

    S/N Ratio

    >65dB

    Minimum Illumination

    0.02Lux/F1.7, 30IRE, 0Lux IR on

    Fill Light Working Distance

    60 m (196.9 ft)

    IR On/Off Control

    Auto; manual

    IR LED Number

    4

    Pan/Tilt/Rotation Range

    Pan: 0°–360°
    Tilt: 0°–90°
    Rotation: 0°–360°

    Lens

    Lens Type

    Motorized vari-focal

    Auto Focus

    N/A

    Mount Type

    φ14

    Focal Length

    2.7 mm-12 mm

    Max. Aperture

    F1.7

    Field of View

    Diagonal: 38°– 125°

    Horizontal: 33°–102°

    Vertical: 19°– 53°

    Iris Type

    Fixed iris

    Close Focus Distance

    1.2 m (3.9 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.7 mm

    49.7 m (163.1 ft)

    19.9 m (65.3 ft)

    9.9 m

    (32.5 ft)

    5 m

    (16.4 ft)

    12 mm

    82.8 m (271.7 ft)

    33.1 m (108.6 ft)

    16.6 m (54.5 ft)

    8.3 m

    (27.2 ft)

    Video

    Frame Rate

    CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
    AHD: 1080P@25/30fps; 720P@25/30fps;
    TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
    CVBS: 960H

    Resolution

    1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

    Day/Night

    Auto switch by ICR

    BLC

    BLC/HLC/DWDR

    WDR

    DWDR

    White Balance

    Auto; manual

    Gain Control

    Auto; manual

    Noise Reduction

    2D NR

    Smart IR

    Yes

    Electronic Defog

    Yes

    Mirror

    Off/On

    Privacy Masking

    Off/On (8 area, rectangle)

    Certifications

    Certifications

    CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

    Port

    Audio Output

    One channel built-in mic (-A)

    Video Output

    Video output choices of CVI/TVI/AHD/CVBS by one BNC port

    Power

    Power Supply

    12V ±30% DC

    Power Consumption

    Max 12.1W (12V DC, IR on)

    Environment

    Operating Temperature

    -30°C to +60°C (-22°F to 140°F);<95% (non-condensation)

    Storage Temperature

    -30°C to +60°C (-22°F to 140°F);<95% (non-condensation)

    Protection Grade

    IP67

    Structure

    Casing

    Metal throughout the whole casing

    Camera Dimensions

    209.9 mm × 90.4 mm × 90.4 mm (8.26" × 3.56" × 3.56")

    Net Weight

    0.55 Kg (1.21 lb)

    Gross Weight

    0.7 Kg (1.54 lb)
