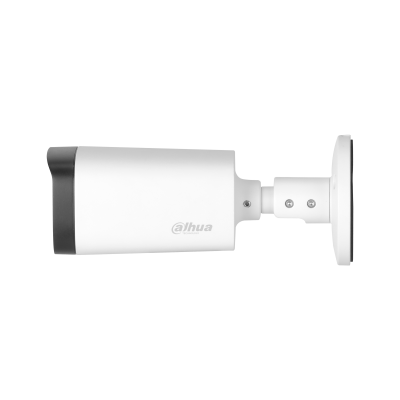

HAC-HFW1200R-Z-IRE6-A-POC

2MP HDCVI POC Fixed IR Bullet Camera

> Max 30 fps@1080P.
> 2.7mm-12mm motorized lens.
> CVI/CVBS/AHD/TVI switchable.
> Built-in mic.
> Max. IR length 60m, Smart IR.
> IP67, PoC (only CVI)/12V±30% DC.


  • Spezifikationen
  • Zubehöre
  • Herunterladen
  • Camera

    Image Sensor

    2MP CMOS

    Max. Resolution

    1920 (H) × 1080 (V)

    Pixel

    2MP

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL: 1/25 s–1/100000 s

    NTSC: 1/30 s–1/100000 s

    S/N Ratio

    > 65 dB

    Min. Illumination

    0.02Lux/F1.7, 30IRE, 0Lux IR on

    Illumination Distance

    60m (196.9 ft)

    Illuminator On/Off Control

    Auto;

    Illuminator Number

    4 (IR light)

    Pan/Tilt/Rotation Range

    Pan: 0°–360°

    Tilt: 0°–90°

    Rotation: 0°–360°

    Lens

    Lens Type

    Motorized Vari-focal

    Auto Focus

    N/A

    Mount Type

    φ14

    Focal Length

    2.7 mm-12 mm

    Max. Aperture

    F1.7

    Field of View

    Diagonal: 38°– 125°

    Horizontal: 33°–102°

    Vertical: 19°– 53°

    Iris Type

    Fixed

    Close Focus Distance

    1.2 m (3.9 ft)

    DORI Distance

    2.7mm: D: 49.7 m (163.1 ft); O: 19.9 m (65.3 ft); R: 9.9 m

    (32.5 ft); I: 5 m(16.4 ft)

    12mm: D: 82.8 m (271.7 ft); O: 33.1 m (108.6 ft); R: 16.6 m (54.5 ft); I: 8.3 m(27.2 ft)

    Video

    Frame Rate

    CVI:

    1080P@25/30fps;

    720P@25/30fps;

    AHD:

    1080P@25/30fps;

    720P@25/30fps;

    TVI:

    1080P@25/30fps;

    720P@25/30fps;

    CVBS: 960H

    Resolution

    1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

    Day/Night

    Auto switch by ICR

    BLC

    BLC/DWDR/HLC

    White Balance

    Auto/Area WB

    Gain Control

    Auto; manual

    Noise Reduction

    2D NR

    Smart IR

    Yes

    Mirror

    Yes

    Privacy Masking

    Off/On (8 area, rectangle)

    Certifications

    Certifications

    CE (EN55032, EN55024, EN50130-4)

    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

    Port

    Video Output

    Video output choices of CVI/TVI/AHD/CVBS by one BNC port

    Audio Input

    One channel built-in mic

    Power

    Power Supply

    POC (only CVI)/12V±30% DC

    Power Consumption

    Max7.2W (12V DC, IR on); PoC (AT)

    Environment

    Operating Temperature

    –30°C to +60°C (–22°F to 140°F);﹤ 95%

    (non-condensation)

    Storage Temperature

    –30°C to +60°C (–22°F to 140°F);﹤ 95%

    (non-condensation)

    Protection Grade

    IP67

    Structure

    Casing

    Mental throughout the whole casing

    Camera Dimensions

    209.9 mm × 90.4 mm × 90.4 mm (8.26" × 3.56" × 3.56")

    Net Weight

    0.57 Kg (1.3 lb)

    Gross Weight

    0.72 Kg (1.6 lb)
