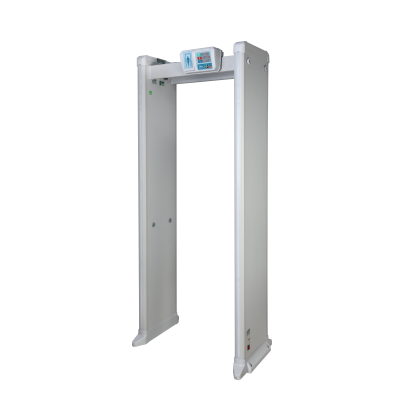

ISC-D218

Walk-through Metal Detector

> Two sets of high-brightness red-green LEDs, super bright double-row area indicator lights and independent interactive 18-zone function with 12 detectors
> Count the numbers of passes and alarms respectively
> 72 application scenarios selectable
> Zone sensitivity adjustable from 0 to 399
> Security degree adjustable from 0 to 99
> 50 working frequencies selectable
> Alarm sound volume adjustable from 0 to 99; support mute mode
> 100 alarm tones selectable
> Multiple start-stop modes for IR
> 100 alarm duration levels selectable
> Support using remote control for configuration
> 2 pairs of sensors, and multiple start-stop modes
> High-strength Fire Retardant High-pressure Laminate (HPL) material
> Easy to install and use with modular design


  • Spezifikationen
  • Zubehöre
  • Herunterladen
  • General

    Overall Exterior Size

    2210 mm × 928 mm × 572 mm (87" × 36.5“ × 22.5")

    Passageway Interior Size

    2057 mm × 714 mm × 421 mm (81" × 28.1" × 16.6")

    Packing Size

    2409 mm × 868 mm × 303.5 mm (94.8" × 34.2" × 11.9")

    Net Weight

    45 kg (99.2 lb)

    Gross Weight

    62 kg (136.7 lb)

    Operating Voltage

    90V–240V AC 50/60Hz

    Max Power Consumption

    9 W

    Standby Power Consumption

    8 W

    Operating Temperature

    –20°C to +65°C (–4°F to +149°F)

    Operating Humidity

    0%–95%

    Storage Temperature

    –20°C to +70°C (–4°F to +158°F)

    Storage Humidity

    0%–90% RH

    Working Frequency

    1–50 frequency ranges (5000–8999Hz)

    With Remote Control

    Yes

    Certification

    Certifications

    GB15210-2018

    IEC 60068-2-1

    IEC 60068-2-2

    CE-LVD: EN62368-1

    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

    FCC: 47 CFR FCC Part 15, Subpart B
