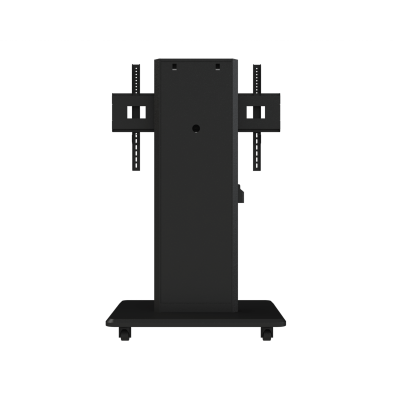

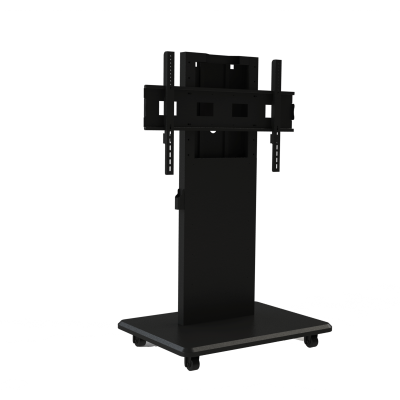

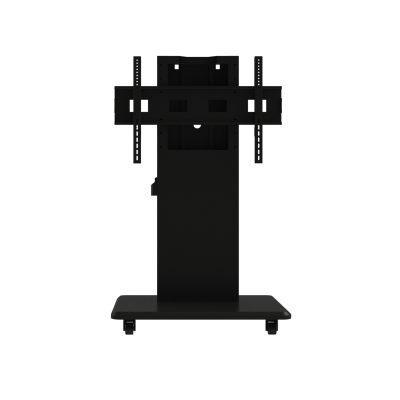

PKC-MS1B

Smart Interactive Whiteboard Mobile Stand

> Liftable bracket with a standard modular design.


  • Specifications
  • Accessories
  • Download
  • Structure

    Color

    Black

    Applicable Model Size

    86"–98"

    Maximum Load-bearing

    180 kg (396.83 lb)

    Maximum Stroke

    840 mm (Vertical) × 606 mm (Horizontal) (33.07" × 23.86")

    Dimensions

    Dimensions of Finished Products after Assembly (L × W × H)

    1100 mm × 800 mm × 1706 mm (43.31" × 31.50" × 67.17")

    Packing Dimensions (L × W × H)

    1710 mm × 850 mm × 200 mm (67.32" × 33.46" × 7.87")

    Weight

    Gross Weight

    47 kg (103.62 lb)

    Net Weight

    54 kg (119.05 lb)

    Environment

    Operating Temperature

    –20 °C to +60 °C (–4 °F to +140 °F)

    Operating Humidity

    20%–90%
