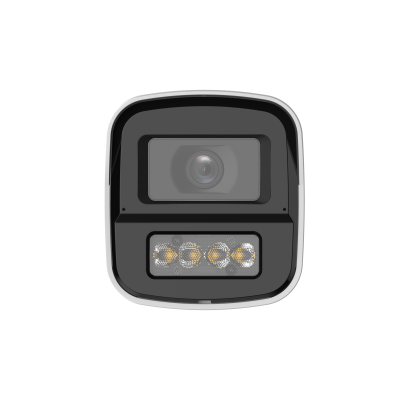

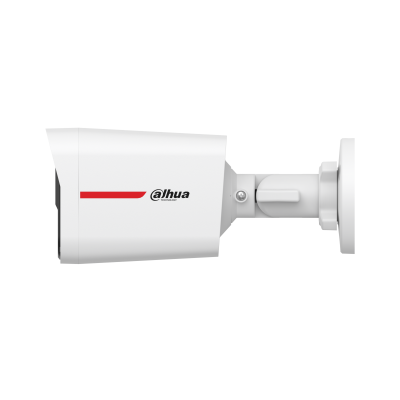

HAC-HFW1549X-IL-A-PRO
5MP WizColor HDCVI Fixed-focal Bullet Camera
> * The parameters and datasheets below can only be applied to 1549 series.
> * In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
> Max. 25 fps@5MP (16:9 video output)
> AI-ISP.
> Distortion Correction.
> Smart Dual Light.
> Smart Light+.
> 50 m illumination distance
> Super Adapt,130 dB true WDR, 3D NR
> Built-in Dual Mic
> Quick-to-install eyeball saves installation time.
> 3.6 mm fixed lens (2.8 mm optional)
> CVI/CVBS/AHD/TVI switchable
> IP67, 12 VDC
Camera
Image Sensor
5 MP CMOS
Max. Resolution
2880 (H) × 1620 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 sMin. Illumination
0.0001 lux@F1.0 (Color, 30 IRE)
0.00001 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)S/N Ratio
>65 dB
Illumination Distance
IR: 50 m (164.04 ft)
Warm light: 50 m (164.04 ft)Illuminator On/Off Control
Auto/Manual
Illuminator Number
4 (Multi-core light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F1.0
Field of View
2.8 mm: H: 111°; V: 58.5°; D: 136.3°
3.6 mm: H: 91.1°; V: 48.7°; D: 107.9°Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.4 m (4.59 ft)
3.6 mm: 2.0 m (6.56 ft)DORI Distance
Lens Detect Observe Recognize Identify 2.8 mm 63.8 m
( 209.32 ft)25.5 m
( 83.66 ft)12.8 m
( 41.99 ft)6.4 m
( 21.00 ft)3.6 mm 77.8 m
( 255.25 ft)31.1 m
( 102.03 ft)15.6 m
( 51.18 ft)7.8 m
( 25.59 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Video
Video Frame Rate
CVI:
PAL: 5M@25 fps; 5M@12.5 fps;
NTSC: 5M@25 fps; 5M@10 fps;
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M@20 fps
NTSC: 5M@20 fps
CVBS:
PAL: 960H
NTSC: 960HResolution
5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
Day/Night
Auto(ICR)/Color/B/W
WDR
130 dB
White Balance
Auto
Gain Control
Auto
Noise Reduction
3D NR
Motion Detection
Yes (It needs to be controlled through the XVR)
Illumination Mode
Smart IR&WL; WL Mode; IR Mode
Mirror
Yes (It needs to be controlled through the XVR)
Privacy Masking
Yes (It needs to be controlled through the XVR)
Certification
Certifications
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;Audio
Built-in Mic
Yes, built-in dual Mic
Camera Audio
CVI
Pick-up Distance
12 m (39.37 ft)
Port
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply
12 VDC (±30%)
Power Consumption
Max 6.1 W (12 VDC, LED on)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
<95% (RH), non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
<95% (RH), non-condensing
Protection
IP67
Anti-corrosion Level
Basic Protection
Structure
Casing Material
Metal front cover + plastic rear barrel + metal bracket
Product Dimensions
186.5 mm × 75 mm × 82.2 mm (7.34" × 2.95" × 3.24") (L × W × H)
Net Weight
0.35 kg (0.77 lb)
Gross Weight
0.49 kg (1.08 lb)
Installation
Wall mount; ceiling mount; vertical pole mount
