IPC-PFW83242-A180

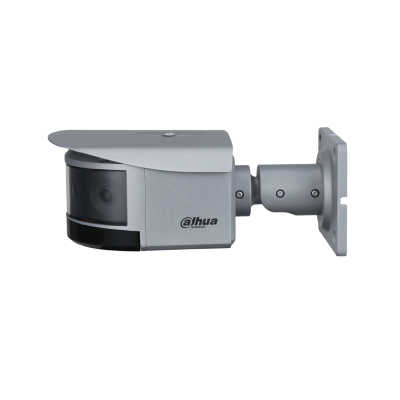

4x8MP WizMind Multi-Sensor Panoramic Bullet Network Camera

* A garantia de 5 anos é aplicável a parceiros IPP, VSIP e SSIP. Para obter mais detalhes, entre em contato com seu contato da Dahua ou sales.iberia@dahuatech.com

> 4 × 8MP, 1/1.8" CMOS image sensor, low illuminance, high image definition

> Outputs max. 32MP (8192 × 3840) @25/30 fps; with intelligent functions enabled, it can output 32MP (8192 × 3840) @25 fps

> Built-in IR LED, max. IR distance: 30 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Intelligent detection: Intrusion, tripwire

> Intelligent functions: Crowd distribution map, Vehicle situation

> Supports object tracking and image correction

> Support video clip, the image can be clipped as needed

> Supports max. 256 G Micro SD card

> 12V DC power supply

> IP67, IK10 protection


  • Especificações
  • Acessórios
  • Transferir
  • Video
  • Camera

    Image Sensor

    1/1.8” 8Megapixel progressive CMOS

    Max. Resolution

    8192 (H) × 3840 (V)

    ROM

    4 GB

    RAM

    8 GB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.005 Lux@F1.6 (Color,30IRE)

    0.0005 Lux@F1.6 (B/W,30IRE)

    0 Lux (Illuminator on)

    S/N Ratio

    >56 dB

    Illumination Distance

    30 m (98.4 ft) (IR LED)

    Illuminator On/Off Control

    Auto/Manual

    Illuminator Number

    8 (IR LED)

    Pan/Tilt/Rotation Range

    Tilt: 0°–90°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Mount Type

    M12

    Focal Length

    2.8 mm

    Max. Aperture

    F1.6

    Field of View

    Horizontal: 180°; vertical: 90°

    Iris Type

    Fixed

    Close Focus Distance

    1.8 m (5.9 ft)

    DORI Distance

    Detect

    Observe

    Recognize

    Identify

    84.0 m

    ( 275.6 ft)

    33.6 m

    (110.2 ft)

    16.8 m

    (55.1 ft)

    8.4 m

    ( 27.6 ft)

    Professional, intelligent

    Vehicle Density

    Vehicle density; parking upper limit;

    vehicle congestion alarm

    IVS (Perimeter Protection)

    Intrusion; tripwire

    Crowd Distribution Map

    Crowd map, global people counting; people counting in area

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

    Smart Codec

    Smart H.264+/Smart H.265+

    Video Frame Rate

    Main stream: 8192 × 3840 (1–25/30 fps)
    Sub stream: 1280 × 600 (1–25/30 fps)
    Third stream: 2304 × 1080 (1–25/30 fps)

    Stream Capability

    3 streams

    Resolution

    Splicing:
    32M (8192 × 3840); 7680 × 3600; 7168 × 3360; 6720 × 3152; 5760 × 2700; 4800 × 2252; 4096 × 1920; 2880 × 1360; 2304 × 1080; 1280 × 600; 2408 × 960; 1520 × 712
    Non-splicing:
    4320 × 7680; 2880 × 5120; 2160 × 3840; 720 × 1280; 1080 × 1920

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 96 kbps–65536 kbps
    H.265: 38 kbps–55612 kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    DWDR

    White Balance

    Auto/natural/street lamp/outdoor/manual/regional custom

    Gain Control

    Auto/Manual

    Noise Reduction

    3D NR

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest (RoI)

    Yes (4 areas)

    Smart Illumination

    Yes

    Privacy Masking

    4 areas

    Audio

    Audio Compression

    G.711A; G.711Mu; G.726; G.723

    Alarm Event

    Alarm Event

    No SD card; SD card full; SD card error; service life warning; network disconnection; IP conflict; illegal access; voltage detection; safety exception; motion detection; video tampering; scene changing; Input Abnormal detection; intensity change detection; external alarm; tripwire; intrusion; crowd density detection; traffic congestion; maximum vehicle

    Network

    Network

    RJ-45 (10/100/1000 Base-T)

    SDK and API

    Yes

    Cyber Security

    Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

    Protocol

    IIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour

    Interoperability

    ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; RTMP

    User/Host

    20

    Storage

    FTP; SFTP; Micro SD card (support max. 256 G); NAS

    Browser

    IE:IE10 and later

    Management Software

    Smart PSS; DSS

    Certification

    Certifications

    CE-LVD: EN62368-1
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
    FCC: 47 CFR FCC Part 15, Subpart B
    UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

    Port

    RS-485

    1 (baud rate range: 1200 bps–115200 bps)

    Audio Input

    1 channel (RCA port)

    Audio Output

    1 channel (RCA port)

    Alarm Input

    2 channels in: 5mA 3V–5V DC

    Alarm Output

    2 channels out: 1,000mA 30V DC/500mA 50V DC

    Power

    Power Supply

    12V DC

    Power Consumption

    Basic power consumption: 13.6W (12V DC)

    Max. power consumption (Intelligent functions enabled + IR full intensity + WDR ): 24.3W (12V DC)

    Environment

    Operating Temperature

    –40°C to +60°C (–40°F to +140°F)

    Operating Humidity

    ≤ 95%

    Storage Temperature

    –40°C to +60°C (–40°F to +140°F)

    Protection Grade

    IP67; IK10

    Structure

    Casing

    Metal

    Dimensions

    298.3 mm × 172.5 mm × 120.5 mm

    Net Weight

    3.16 kg (7.0 lb)

    Gross Weight

    4.06 kg (9.0 lb)
