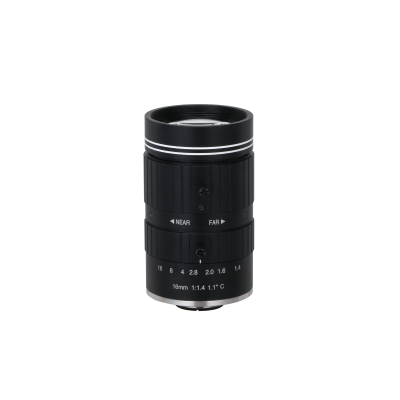

PFL16-L12M-A

12MP 1.1" F1.4 16 mm Fixed-focal Lens (Manual Iris)

> 1.1" image sensor with high compatibility for ITC cameras.
> IR correction ensures 24 hours real-time monitoring.
> Standard C mount for easy installation and strong compatibility.
> ROHS standard.


  • Specifikace
  • Příslušenství
  • Stáhnout
  • selector-pcimg

    Výběr produktu

    Performance

    Image Sensor Size

    1.1"

    Focal Length

    16 mm

    Lens Pixel

    12MP

    Aperture

    F1.4 ± 10%

    IR Light

    Yes

    CRA

    10.3°

    Total Optical Length

    96.6 mm ± 0.5 mm (in air)

    Flange Back Focal Length

    17.52 mm ± 0.2 mm (in air)

    Mechanical Back Focal Length

    11.74 mm ± 0.2 mm (in air)

    Field of View

    61.3° × 50.3° × 37° (D × H × V)

    Distortion

    –2.35%

    Minimum Object Distance (MOD)

    0.3 m (0.98 ft)

    Control Mode

    Zoom

    Fixed

    Focus Control

    Manual

    Iris Control

    Manual

    Port

    Port Type

    C mount

    Structure

    Product Dimensions

    Ф48 mm x 84.25 mm

    Appearance Color

    Black

    Casing

    Metal

    Net Weight

    0.356 kg ± 0.005 kg (0.78 lb ± 0.01 lb)

    Gross Weight

    0.408 kg ± 0.010 kg (0.90 lb ± 0.02 lb)

    Packaging Dimensions

    124 mm × 82 mm × 89 mm (4.88" × 3.23" × 3.50")

    Environment

    Operating Temperature

    –30°C to +70°C (–22°F to +158°F)

    Operating Humidity

    95% (RH)

    Storage Temperature

    –30°C to +70°C (–22°F to +158°F)

    Storage Humidity

    ≤ 95% (RH)
