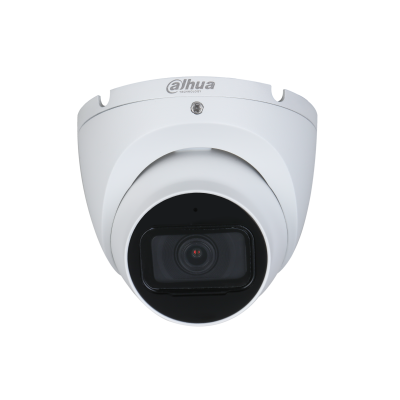

HAC-HDW1231TLM

2MP Starlight HDCVI IR Eyeball Camera

> Max 30 fps@1080P
> Starlight, 130 dB true WDR, 3D NR
> 3.6 mm fixed lens (2.8mm optional)
> CVI/CVBS/AHD/TVI switchable
> Super Adapt
> Built-in mic (-A)
> Max. IR length 30 m, Smart IR
> IP67, DC12V


  • 사양
  • 액세서리
  • 다운로드
  • selector-pcimg

    제품 선택기

    Camera

    Image Sensor

    2M CMOS

    Max. Resolution

    1920 (H) × 1080 (V)

    Pixel

    2MP

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL: 1/25 s–1/100000 s
    NTSC: 1/30 s–1/100000 s

    S/N Ratio

    > 65 dB

    Min. Illumination

    0.002 Lux/F1.6, 30 IRE, 0 Lux IR on

    Illumination Distance

    > 65 dB

    Illuminator On/Off Control

    30 m (98.4 ft)

    Illuminator Number

    1 (IR light)

    Pan/Tilt/Rotation Range

    Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed lens

    Mount Type

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    F1.6

    Field of View

    2.8 mm: H: 107°; V: 56°; D: 127°
    3.6 mm: H: 86°; V: 46°; D: 101°

    Iris Type

    Fixed

    Close Focus Distance

    2.8 mm: 0.7 m (2.3 ft)
    3.6 mm: 1.1 m (3.6 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    43.9 m

    (144 ft)

    17.5 m

    (57.4 ft)

    8.8 m

    (28.9 ft)

    4.4 m

    (14.4 ft)

    3.6 mm

    53.7 m

    (176.2 ft)

    21.5 m

    (70.5 ft)

    10.7 m

    (35.1 ft)

    5.4 m

    (17.7 ft)

    DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Video

    Frame Rate

    CVI:
    PAL:1080P@25fps;
    NTSC:1080P@30fps;
    AHD:
    PAL:1080P@25fps;
    NTSC:1080P@30fps;
    TVI:
    PAL:1080P@25fps;
    NTSC:1080P@30fps;
    CVBS:
    PAL:960×576H;
    NTSC:960×480H

    Resolution

    1080P (1920×1080)
    960H (960× 576/960×480)

    Day/Night

    Auto switch by ICR

    BLC

    BLC/HLC/WDR

    WDR

    130dB

    White Balance

    Auto; Area WB

    Gain Control

    Auto/Manual

    Noise Reduction

    3D NR

    Smart IR

    Yes

    Mirror

    Off/On

    Privacy Masking

    Off/On (8 area, rectangle)

    Certifications

    Certifications

    CE (EN55032, EN55024, EN50130-4, EN62368-1)
    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

    Port

    Video Output

    Video output choices of CVI/TVI/AHD/CVBS by one BNC port

    Audio Input

    One channel built-in mic (-A)

    Power

    Power Supply

    12V ±30% DC

    Power Consumption

    Max 3.1W (12V DC, IR on)

    Environment

    Operating Temperature

    –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)

    Storage Temperature

    –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)

    Protection Grade

    IP67

    Structure

    Casing

    Metal throughout the whole casing

    Camera Dimensions

    φ94.0 mm × 85.7 mm (φ3.70" × 3.37")

    Net Weight

    0.33 kg (0.73 lb)

    Gross Weight

    0.47 kg (1.04 lb)
