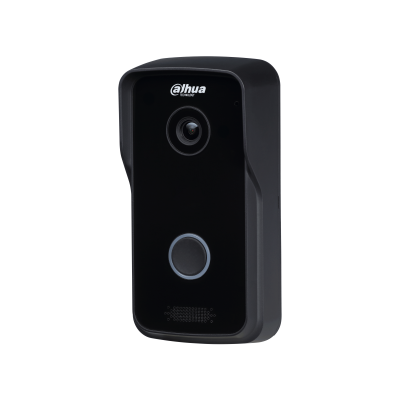

VTO1101D-P

Sub Door Station

> High definition camera; true WDR.

> Operating temperature -30°C to 60°C.

> IP65 (Silicone sealant is need. For details, see the quick start guide.).

> Supports auto IR illumination and D/N.

> Supports two-way voice call.

> Tamper alarm.

> Support standard PoE power supply.

  • 사양
  • 액세서리
  • 다운로드
  • System

    Main Processor

    Embedded processor

    Operating System

    Embedded Linux operation system

    Button Type

    Mechanical

    Interoperability

    ONVIF

    Internet Protocol

    SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

    Baisc

    Camera

    1/4" 1MP CMOS high definition, low illumination/WDR, color/IR

    Angle of View

    Horizontal: 107°; vertical: 61°; diagonal: 122°

    WDR

    Yes

    Noise Reduction

    3D noise reduction

    Video Compression

    H.264

    Video Resolution

    Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1

    Frame Rate

    PAL: 25 fps NTSC: 30 fps

    Video Bit Rate

    256K to 4M

    Light Compensation

    Auto IR

    D/N

    ICR auto switch

    Audio Compression

    G.711a; PCM; AAC

    Audio Input

    1

    Audio Output

    Built-in speaker

    Audio Mode

    Two-way voice call

    Audio Enhancement

    Echo suppression and cancellation/digital noise reduction

    Audio Bit Rate

    16KHz, 16Bit

    Function

    Communication

    Full digital

    Motion Detection

    Video Motion Detection

    Auto Snapshot

    Auto snapshot can only be enabled on indoor monitors

    Leave Photos and Messages

    Yes (SD card is needed)

    Web Configuration

    Yes

    Performance

    Casing

    PC+Acrylic

    Port

    Network

    1 10Mbps/100Mbps network port (8-core white ribbon cable)

    Alarm

    Tamper

    Yes

    General

    Color

    Black

    Power Supply Mode

    12V DC 1A
    Standard POE

    Installation

    Surface or flush mount

    Certifications

    CE
    FCC
    UL

    Accessory

    Brackets and alarm ribbon cable

    Dimensions

    135mm×70.4mm×34.4mm (5.31"×2.77"×1.35")

    Protection Grade

    IP 65 (silicone sealant is needed, for details, see the quick start guide)

    Operating Temperature

    -30°C to +60°C (-20°F to +60°F)

    Operating Humidity

    10%RH–90%RH (non-condensing)

    Operating Altitude

    Beneath 3000 m (9842.52 ft)

    Operating Environment

    Outdoor

    Power Consumption

    Standby≤1W, working≤5W

    Gross Weight

    326 g (0.72 lb)
