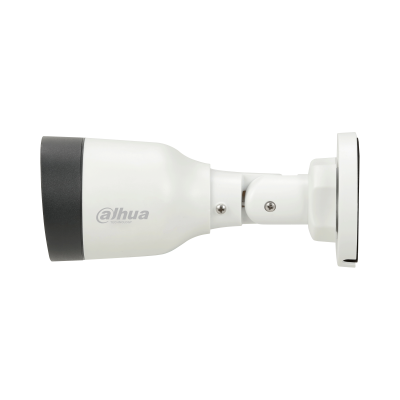

IPC-HFW1230T1-ZS-S5

2MP Entry IR Vari-focal Bullet Netwok Camera

> 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2MP (1920 × 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Abnormality detection: Motion detection, privacy masking, no SD card, SD card full, SD card error, network disconnection, IP conflict, and illegal access
> Max. 256 G SD card.
> 12V DC/PoE power supply.
> IP67 protection.


  • Especificações
  • Acessórios
  • Download
  • Camera

    Image Sensor

    1/2.8" CMOS

    Max. Resolution

    1920 (H) × 1080 (V)

    ROM

    16 MB

    RAM

    128 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Min. Illumination

    0.005 Lux@F1.5 (Color, 30 IRE)

    0.0005 Lux@F1.5 (B/W, 30 IRE)

    0 Lux (Illuminator on)

    S/N Ratio

    > 56 dB

    Illumination Distance

    50 m (164.04 ft) (IR)

    Illuminator On/Off Control

    Auto; Manual

    Illuminator Number

    2 (IR)

    Pan/Tilt/Rotation Range

    Pan: 0°–360°

    Tilt: 0°–90°

    Rotation: 0°–360°

    Lens

    Lens Type

    Motorized vari-focal

    Lens Mount

    φ14

    Focal Length

    2.8 mm–12 mm

    Max. Aperture

    F1.5

    Field of View

    Horizontal: 101°–33.5°; Vertical: 52.5°–19°;

    Diagonal: 125°–38.5°

    Iris Control

    Fixed

    Close Focus Distance

    1.2 m (3.94 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    W

    48 m

    (157.48 ft)

    19 m

    (62.34 ft)

    10 m

    ( 32.81 ft)

    5m

    (16.40 ft)

    T

    131 m

    (429.79 ft)

    52 m

    (170.60 ft)

    26 m

    ( 85.30 ft)

    13m

    (42.65 ft)

    Video

    Video Compression

    H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    Video Frame Rate

    Main stream:1920 × 1080@1–25/30 fps

    Sub stream: 704 × 576@1–25 fps/704 × 480@1–30 fps

    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Stream Capability

    2 streams

    Resolution

    1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 32 kbps–6144 kbps

    H.265: 12 kbps–6144 kbps

    Day/Night

    Auto(ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    DWDR

    Scene Self-adaptation (SSA)

    NA

    White Balance

    Auto; natural; street lamp; outdoor; manual; regional custom

    Gain Control

    Auto; manual

    Noise Reduction

    3D NR

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest (RoI)

    Yes (4 areas)

    Smart Illumination

    Yes

    Image Rotation

    0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

    Mirror

    Yes

    Privacy Masking

    4 areas

    Alarm

    Alarm Event

    No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception; defocus detection

    Network

    Network Port

    RJ-45 (10/100 Base-T)

    Wi-Fi

    NA

    SDK and API

    Yes

    Cyber Security

    Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

    Network Protocol

    IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS

    Interoperability

    ONVIF (Profile S/Profile T); CGI; P2P; Milestone

    User/Host

    6

    Storage

    FTP; Micro SD card (Support max. 256 G)

    Browser

    IE

    Chrome

    Firefox

    Management Software

    Smart PSS; DSS; DMSS

    Mobile Client

    IOS; Android

    Certification

    Certifications

    CE-LVD: EN60950-1

    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

    FCC: 47 CFR FCC Part 15, Subpart B

    Power

    Power Supply

    12 V DC; PoE

    Power Consumption

    Basic: 1.6W (12 V DC); 2.3W (PoE)

    Max. (H.265 + ICR + IR intensity): 4.3 W (12V DC); 5.5 W (PoE)

    Environment

    Operating Temperature

    –30 °C to +60 °C (–22 °F to 140 °F)

    Operating Humidity

    ≤95%

    Protection

    IP67

    Structure

    Casing

    Metal + plastic

    Product Dimensions

    243.5 mm × Ø90.7 mm (9.59" × Ø3.57")

    Net Weight

    0.43 kg (0.95 lb)

    Gross Weight

    0.68 kg (1.50 lb)
