ITC218-RC3A-LF4

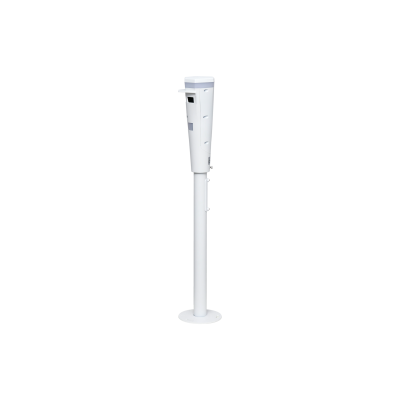

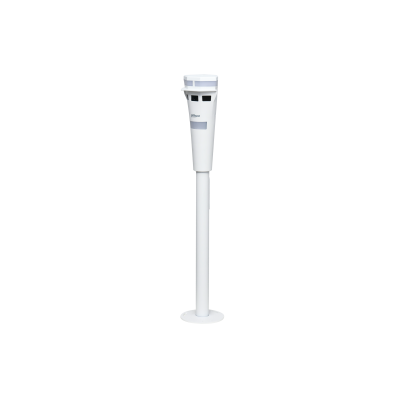

Dahua 2MP ANPR pillar
> Integrated with a 2MP starlight camera, 7-color indicator and illuminator.
> Vehicle detection and ANPR technologies that allow the device to be triggered to take snapshots, recognize license plates, and control the parking space indicator light.
> Detects video tampering, unlicensed vehicles and non-motor vehicles.
> Detects whether the parking space is available or not, and detects when vehicles are parked in the opposite direction or parked across multiple spaces.
> Supports a wide range of voltages from 9 VDC to 36 VDC for power supply.
> For network cascading, up to 20 devices can be comfortably cascaded. The network cable can also be up to 100 meters.
Basic
Image Sensor
1/2.8" CMOS
Max.Detection Spot
1
Indicator Light
1×, 7 customizable colors (red, yellow, blue, green, cyan, white, and pink)
Image Resolution
1920 (H) × 1080 (V) (OSD black background is not calculated in the pixels)
Video Resolution
1920 (H) × 1080 (V)
Noise Reduction
3D NR
WDR
100 dB
White Balance
Auto; Indoor; Outdoor; Regional Custom; Natural; Street Lamp
Video Compression
H.265;H.264B;H.264M;H.264H;MJPEG
Image Encoding Format
JPEG
Video Bit Rate
H.264: 1106 kbps–8847 kbps H.265: 1106 kbps–8847kbps MJPEG: 3318 kbps–26542 kbps
Video Frame Rate
Main stream: 1920 × 1080@25fps; 2560 × 720@25fps Sub stream: 1408 × 576@25fps
Edge Enhancement
Yes
Exposure Mode
Auto; Manual (Select from shutter values or customize shutter range)
Vehicle Speed
0 km/h–30 km/h
Field of View
4 mm: Single lens: H: 87.5° V: 44.4° D: 104.9°
General
Electronic Shutter Speed
Auto/Manual 1/25 s–1/100,000 s
Power Supply
24 VDC, wide voltage between 9–36 VDC
Power Consumption
<10 W
Operating Temperature
–30 °C to +65 °C (–22 °F to +149 °F)
Operating Humidity
10%–95% (RH), non-condensing
Protection
IP54
Product Dimensions
152.1 mm × 135.6 mm × 933.0 mm (5.99" × 5.34" × 36.73") (L × W × H)
Packaging Dimensions
720.0 mm × 355.0 mm × 247.0 mm (28.35" × 13.98" × 9.72")
Net Weight
4.4 kg (9.70 lb)
Gross Weight
6.4 kg (14.11 lb)
Installation
Bracket mount
Lens
Included
Lens Type
Fixed-focal
Focal Length
4 mm
Function
Security
Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control
Shutter Mode
Single shutter
OSD Overlay
Time, date, address, the type, color and number of the plate, vehicle color, parking space status, alarm type and more.
Alarm Event
Vehicles parked in the opposite direction, video tampering, unlicensed vehicle, vehicles parked across multiple spaces and non-motor vehicles parked in the parking spaces of motor vehicles.
Automatic Network Replenishment (ANR)
Yes
Auto Registration
Yes
Image Tampering Prevention
Watermark and verification are available for videos and images
Intelligence
Parking Spot Status Detection
Yes; the indicator light color is customizable.
Parking Direction Detection
Recognizes the front and back of the vehicle, and detects when vehicles are parked in the opposite direction.
Illegal Parking Detection
Detects when vehicles are parked across multiple spaces.
Non-motor Vehicle Detection
Detects when non-motor vehicles are parked in the parking spaces of motor vehicles.
Capture Triggered by Unlicensed Vehicle
Takes snapshots of unlicensed vehicles.
Port
RS-485
1
I/O
1
Alarm Input
1
Network Port
2, RJ-45 Ethernet port, 100 M network transmission
