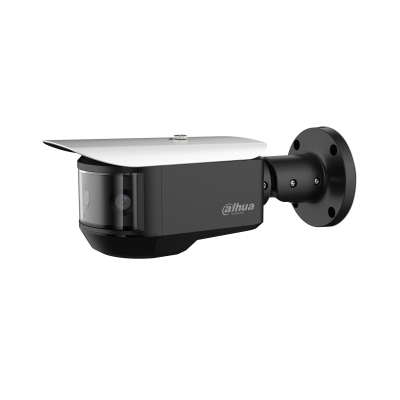

HAC-PFW3601-A180-AC24

3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera

> Three 1/2.8” 2Megapixel progressive scan CMOS
> 1 panoramic view &3 individual 2MP video output simultaneously
> Max. 15fps@4K,25fps@4M
> 120db true WDR,2D&3D NR
> HDCVI starlight technology
> Max.20m IR distance
> IP67&IK10 ingress protection
> Up to 500m transmission with RG59 coaxial cable


  • 사양
  • 액세서리
  • 다운로드
  • Camera

    Image Sensor

    Three 1/2.8" 2MP STARVISTM CMOS

    Effective Pixels(Panorama)

    4K(3840x832)/4M(2560x554)

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL:1/4s~1/100,000s

    NTSC:1/3s~1/100,000s

    Minimum Illumination

    0.005Lux/F1.8( Color), 30IRE,0Lux/F1.8(IR on)

    S/N Ratio

    More than 65dB

    IR Distance

    20m

    IR On/Off Control

    Auto (ICR)/Color/B/W

    IR LEDs

    6

    Lens

    Lens Type

    Fixed lens / Fixed iris

    Mount Type

    Board-in

    Focal Length

    3.6mm

    Max Aperture

    F1.8

    Angle of View

    H: 180°

    Focus Control

    N/A

    Close Focus Distance

    500mm

    19.7''

    DORI Distance

    Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

    DORI

    Definition

    Distance

    Detect

    25px/m (8px/ft)

    50m(163ft)

    Observe

    63px/m (19px/ft)

    20m(65ft)

    Recognize

    125px/m (38px/ft)

    10m(33ft)

    Identify

    250px/m (76px/ft)

    5m(16ft)

    Pan / Tilt / Rotation

    Pan/Tilt/Rotation

    Pan: 0° ~ 360°

    Tilt: 0° ~ 90°

    Rotation: 0° ~ 360°

    Video

    Resolution

    4K (3840X2160)/4MP(2560×1440)

    Frame Rate

    PAL:3840×2160@12.5fps,2560x1440@25fps;

    NTSC:3840×2160@15fps,2560x1440@25fps;

    Video Output

    1-channel BNC HDCVI panoramic video output & 3-channels BNC 2MP HDCVI video output

    Day/Night

    Auto (Electronic) / Manual

    OSD Menu

    Multi-language

    BLC Mode

    BLC / HLC / WDR

    WDR

    120dB

    Gain Control

    AGC

    Noise Reduction

    2D/3D

    White Balance

    Auto / Manual

    Smart IR

    Auto / Manual

    Certifications

    Certifications

    CE (EN55032, EN55024, EN50130-4)

    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

    Interface

    Alarm I/O

    2/1

    Audio Interface

    1-channel audio in(JACK)

    Test interface

    1-channel 2-pin CVBS video output

    Upgrade Interface

    1-channel 4-pin USB input

    Code switcher

    1 physical code switch(switch the preset video source)

    Menu set

    1 Five-direction button

    Eelectrical

    Power Supply

    24V AC ±25%

    Power Consumption

    24W

    Environmental

    Operating Conditions

    -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

    * Start up should be done at above -30°C (-22°F)

    Storage Conditions

    -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

    Ingress Protection & Vandal Resistance

    IP67&IK10

    Construction

    Casing

    Aluminium

    Dimensions

    286mm x 119mmx 106mm(11.26"×4.68"×4.19")

    Net Weight

    2.05kg (4.5lb)

    Gross Weight

    2.43kg (5.36lb)
