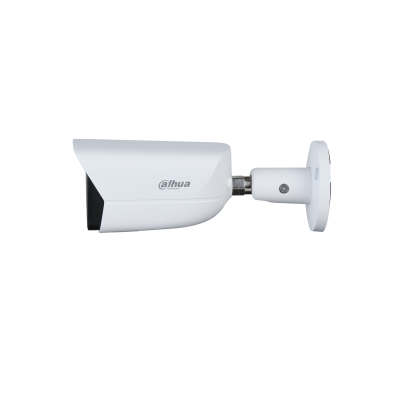

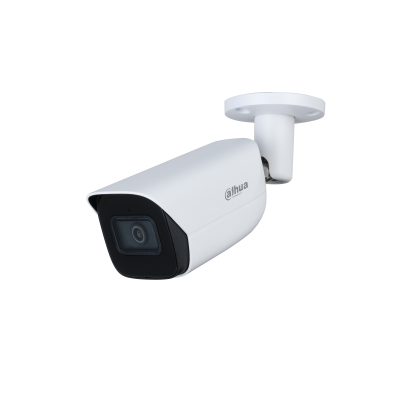

IPC-HFW3841E-SA
8MP IR Fixed focal Bullet WizSense Network Camera
> 8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs max. 8MP (3840 × 2160) @20 fps (AI function enabled by default)and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled)
> H.265 codec, high compression rate, low bit rate · Built-in IR LED, max. IR distance: 30 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection , no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
> Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports)
> Supports max. 256 G Micro SD card, built-in Mic
> 12V DC/PoE power supply
> IP67 protection
> SMD Plus
Camera
Image Sensor
1/2.8”8Megapixel progressive CMOS
Max. Resolution
3840 (H) × 2160 (V)
ROM
128 MB
RAM
512 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.007 Lux@F1.4 (Color, 30IRE)
0.0007 Lux@F1.4 (B/W, 30IRE)
0 Lux (Illuminator on)
S/N Ratio
> 56 dB
Illumination Distance
30 m (98.4 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
1 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F1.4
Field of View
2.8 mm: Horizontal 108° × Vertical 58° × Diagonal 127°
3.6 mm: Horizontal 85° × Vertical 45° × Diagonal 100°Iris Type
Fixed
Close Focus Distance
2.8 mm: 1.4 m (4.6 ft)
3.6 mm: 2.4 m (7.9 ft)DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
85.5 m (280.5 ft)
34.2 m
(112.2 ft)
17.1 m
(56.1 ft)
8.6 m
(28.2 ft)
3.6 mm
110.3 m (361.9 ft)
44.1 m
(144.7 ft)
22.1 m
(72.5 ft)
11.0 m
(36.1 ft)
Professional, intelligent
Perimeter Protection
Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H.265+/ Smart H.264+
Video Frame Rate
Main stream:
3840 × 2160 @(1–20 fps by default)
3840 × 2160 @(1–25/30 fps when AI function disabled)
sub stream:
704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps)
third stream:
1920 × 1080 @(1–25/30 fps)
Stream Capability
3 streams
Resolution
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
Scene Self-adaptation (SSA)
Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Yes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
Mirror
Yes
Privacy Masking
4 areas
Audio
Built-in MIC
Yes
Audio Compression
G.711a; G.711Mu; G726
Alarm
Alarm Event
- AS:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception
-SA:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exceptionNetwork
Network
RJ-45 (10/100 Base-T)
SDK and API
Yes
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host
20 (Total bandwidth: 72 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE: IE8; IE9; IE11
Chrome
FirefoxManagement Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07Port
Audio Input
1 channel (RCA port) (Only - AS supports)
Audio Output
1 channel (RCA port) (Only - AS supports)
Alarm Input
1 channel in: 5mA 3V–5V DC (Only - AS supports)
Alarm Output
1 channel out: 300mA 12V DC (Only - AS supports)
Power
Power Supply
12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 3W (12V DC); 3.5W (PoE)
Max. power consumption (WDR + H.265 + IR LED intensity): 5.5W (12V DC); 6.3W (PoE)
Environment
Operating Conditions
–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Conditions
–40°C to +60°C (–40°F to +140°F)
Protection Grade
IP67
Structure
Casing
Metal
Dimensions
192.7 mm × 70.5 mm × 66.4 mm (7.6" × 2.8" × 2.6") (L × W × H)
Net Weight
590 g (1.3 lb)
Gross Weight
780 g (1.7 lb)
