SOLUTIONS

Innovative Technology | Reliable Quality | End-to-End Service

Substation

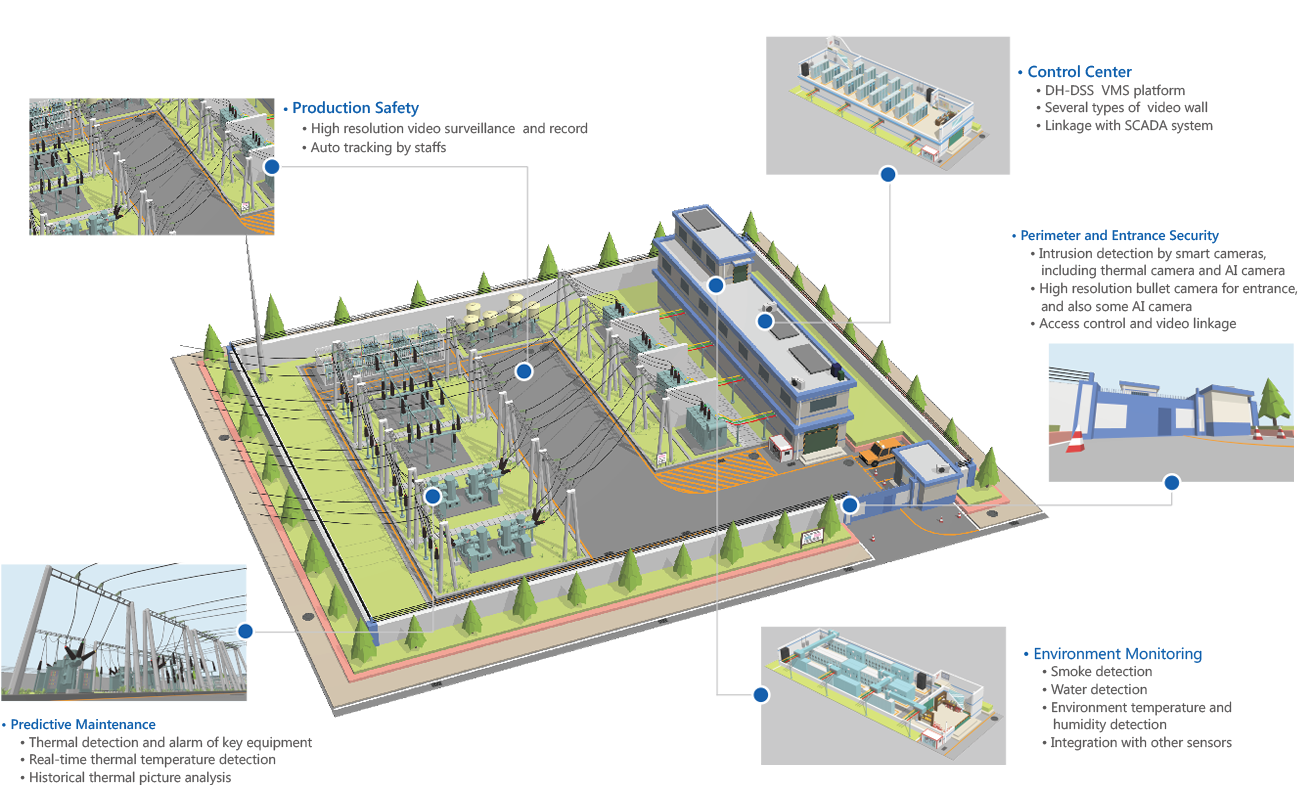

SOLUTION OVERVIEW



Perimeter Security

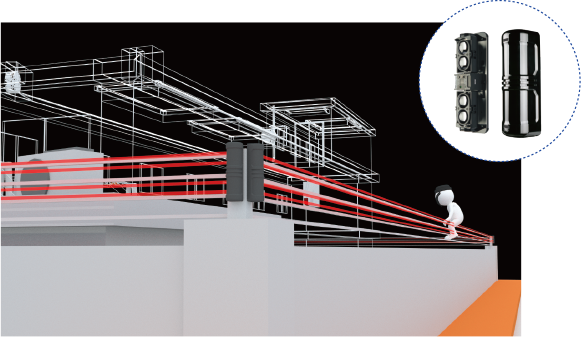

Traditional Security Solution

• Install PIR detector at the corner of fence for intrusion detection
• Send intrusion alarm to alarm controller or FSU and send alarm out
• Send intrusion alarm to DSS platform in the control center

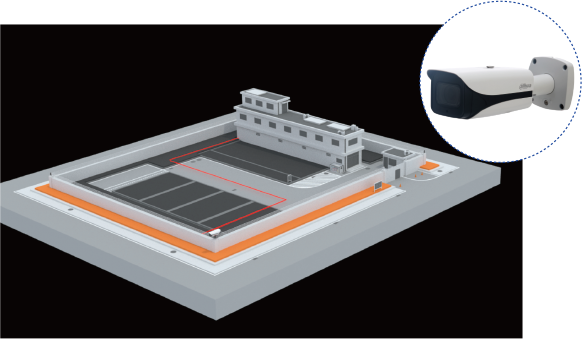

ePOE Video Solution

• IR network camera monitors the perimeter both day and night
• ePOE is one of Dahua key technologies
• For normal camera, it supports the video and power transmission less than 100m, and ePOE camera supports 800m transmission

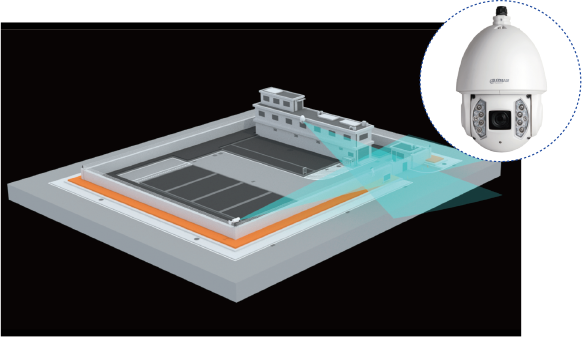

Smart Video Solution

• Thermal camera supports perimeter surveillance both day and night
• Thermal camera supports human body detection and intrusion alarm
• Make linkage with PTZ camera

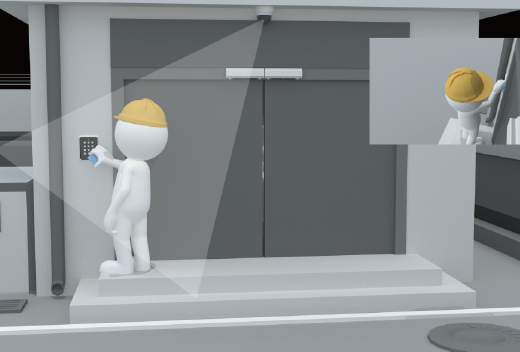

Access Control

Substation Rooms

• Door controller manages doors in the substation
• Open the door with cards
• Make linkage with camera

Predictive Maintenance

Easy Maintenance for Smart Power Grid

• Easy Connect : Camera + PC + DSS Pro
• Easy Test: All functons in one model
• Professional for maintenance

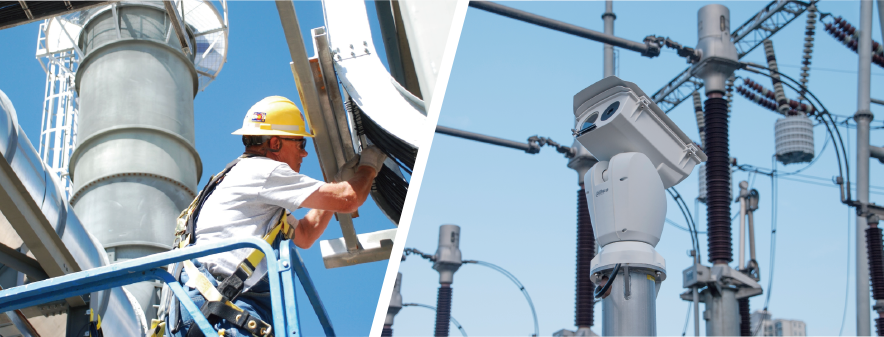

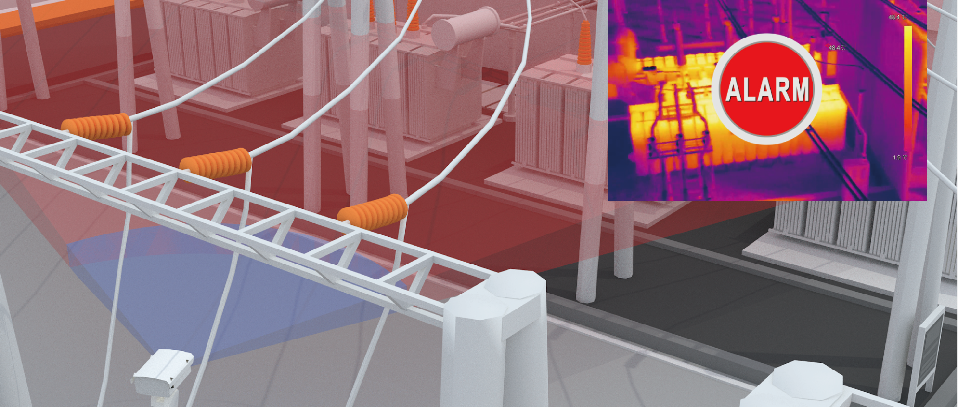

Thermal temperature measurement is the most effective means for real-time, remote on-line detection of high-voltage equipment.

• Typical Subjects of Thermal Temperature Measurement


Environment Surveillance

Temperature and humidity detector, water detector, smoke detector and others all connect to this unit. It can connect to the platform and can also be used by local device.

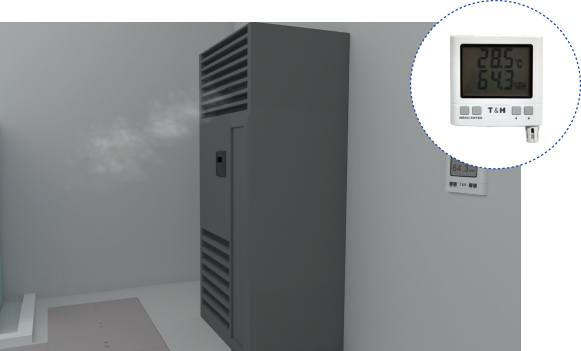

T & H Detection

• Temperature and humidity detection and alarm
• Make linkage with air conditioner

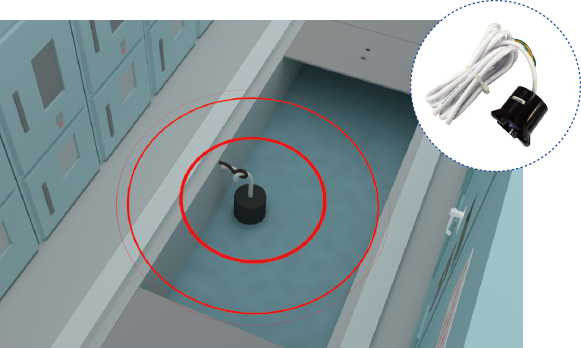

Water Detection

• If water flows into the room, it gets alarm

Smoke Detection

• It will send an alarm if the device gets on fire

Production Safety

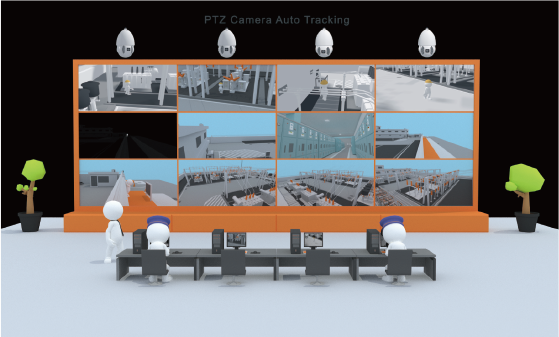

Staff Auto-tracking and Record

• Dahua PTZ camera automatically tracks the process of production and records it.
• The production safety manager can remotely inspect the staff in the substation.
• If some accident happens unfortunately, the video recorded will help manager do analysis.

Remote Surveillance and Control

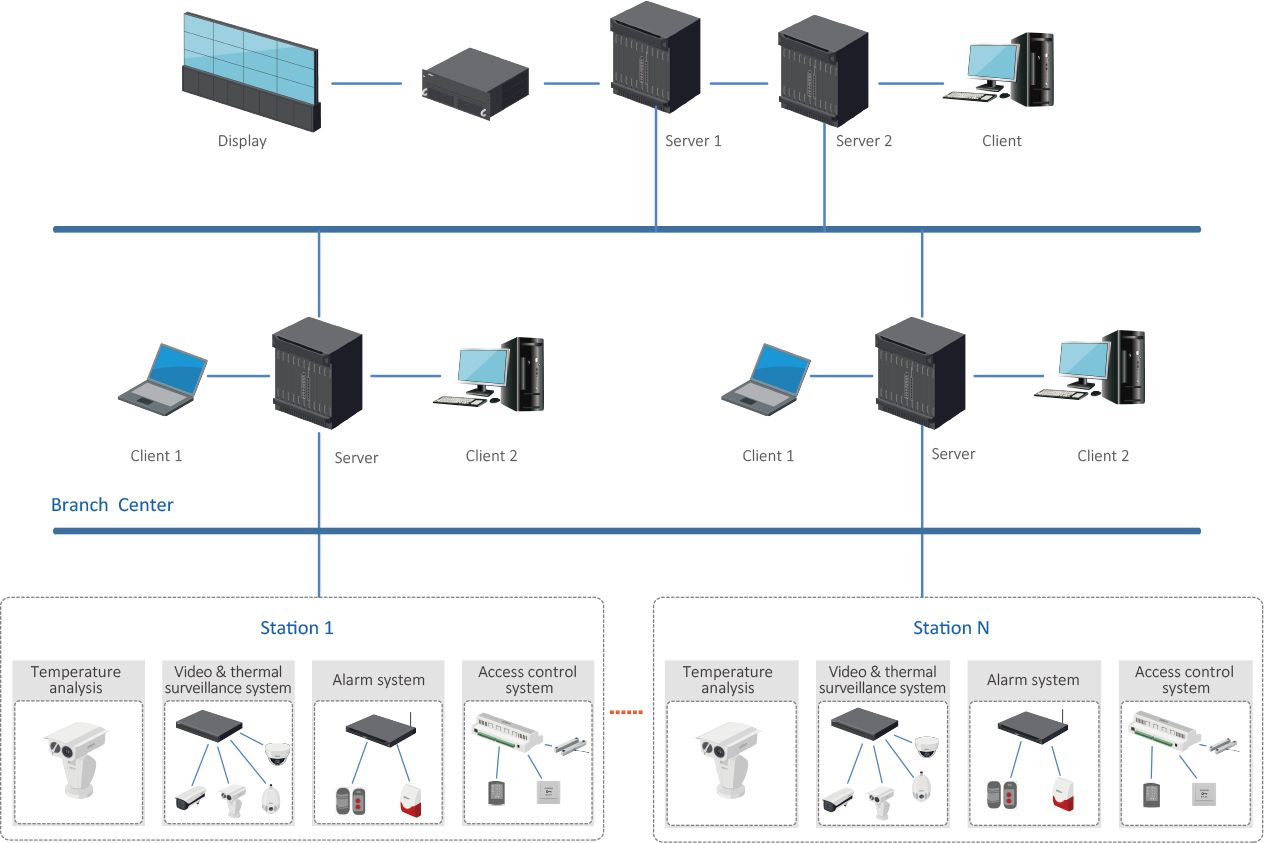

Power Grid Control Center

• Power grid control center manages all its substations with Dahua VMS platform and video wall. Dahua system also supports the linkage with SCADA system.

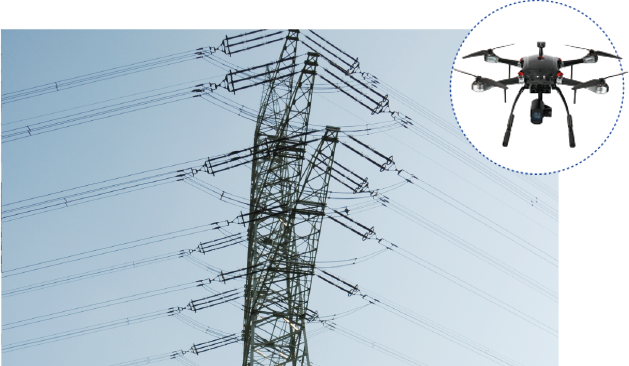

Drone for Transmission Line

Tour Inspection

• Power transmission line inspection is hard work and drone tour inspection makes it easy.
• By drone tour inspection, staff can check the power transmission line and tower remotely.

Distribution Room Surveillance

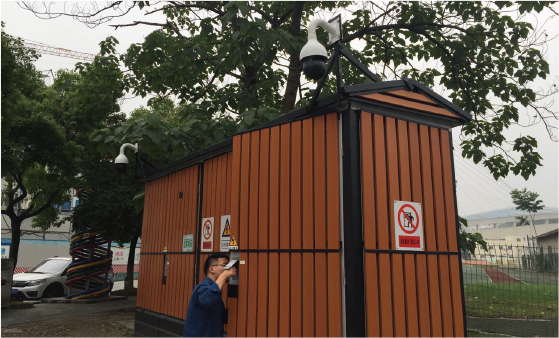

Outdoor Switch Room

• Install camera outside of switch room for damage prevention.
• Managers can check the equipment by cameras inside the switch room.

Indoor Switch Room

• Cameras in this kind of switch room can monitor the whole room including the entrance, windows and equipment.
