ASM101A

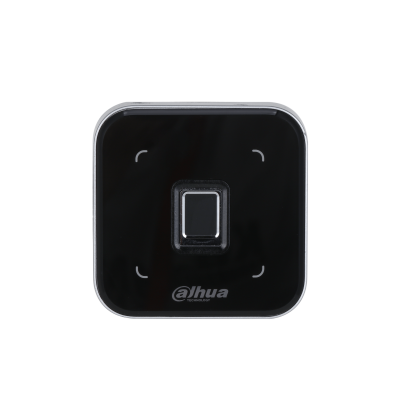

Fingerprint Enrollment Reader

> PC material and acrylic panel suitable for indoor use
> Support IC card (Mifare card), ID card issuing, and fingerprint collection
> USB2.0 interface. Plug and play, no need to install driver
> LED indicator and buzzer prompt for successful card issuing and
> Supports SmartPSS AC and DSS Pro platforms


  • Especificações
  • Acessórios
  • Transferir
  • Basic

    Product Type

    Capacitive fingerprint enrollment reader

    Buzzer

    Yes

    Casing

    PC/acrylic panel

    Function

    Communication Mode

    ID card; IC card (Mifare card)

    Prompt of Succeeded in Issuing Card

    Card issuer flashes green

    Performance

    IC Card Encryption

    Yes

    Card Reading Frequency

    13.56MHz/125KHz

    Card Issuing Distance

    0 cm–5 cm (0"–0.20")

    Fingerprint Sensor Type

    Capacitive fingerprint sensor

    Fingerprint Recording Time

    1800 ms

    General

    Power Supply

    5V 0.5A DC

    Power Consumption

    Standby ≤ 1.0W, working ≤ 1.7W

    Product Dimensions

    70 mm × 70 mm × 26 mm (2.76" × 2.76" × 1.02") (L × W × H)

    Packaging Dimensions

    110 mm × 97 mm × 90 mm (4.33" × 3.82" × 3.54")

    (L × W × H, 1 in inner carton)

    578 mm × 313 mm × 204 mm (22.76" × 12.32" × 8.03")

    (L × W × H, carton)

    Operating Temperature

    –20°C to +65°C (–4°F to +149°F)

    Operating Humidity

    5%RH–95% (non-condensing)

    Operating Environment

    Indoor

    Gross Weight

    0.17 kg (0.37 lb)

    Installation

    Desk mount

    Certifications

    CE; FCC
