SCP3024B-CBZ

Présentation Spécifications Télécharger Demande commerciale
Comparer Favoris

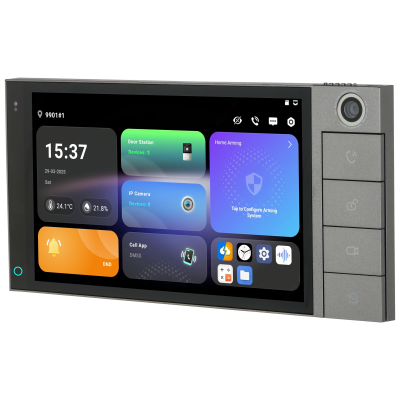

SCP3024B-CBZ

4-Wire Hybrid Smart Control Panel

Points clés
    • Android 14 System
    • Full-Screen Design with an Ultra-Narrow Black Border
    • 7-inch IPS Capacitive Touchscreen
    • Supports IP, Wi-Fi and IP Four-Wire Communication Mode
    • Equipped with a Built-In Light Sensor for Automatically Adjusting the Screen Brightness
    • Built-In Temperature and Humidity Detectors
    • Mechanical Buttons Can Be Removed and Replaced, and Their Related Functions Can Be Personalized
    • Support Camera Module for Indoor Monitor Video Communication
Demande commerciale
Fiche technique

Spécifications

System

Main Processor

Embedded Processor

Operating System

Android 14

Button Type

Mechanical

Network Protocol

IPv4;RTSP;UDP;DNS;FTP;RTP;TCP;SIP

Basic

Screen Type

Capacitive Touchscreen

Display Screen

7-inch display screen

Screen Resolution

1024 (H) × 600 (V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz, 16 bit

Field of View

H: 75°; V: 47°; D: 83°

Video Compression

H.264

Video Resolution

Main stream: 1080P/720P/D1/WVGA/CIF/QVGA
Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA

Video Frame Rate

PAL: 25 fps
NTSC: 30 fps

Video Bit Rate

224 kbps–8,192 kbps

Function

Communication Mode

Full digital;Analog 4-wire

Information Release

Receive and view the published information from the management center

Elevator Control

Residents can call the elevator through this device to their floor.

Leave Videos

Yes (SD card is inserted in the indoor monitor or door station)

DND Mode

Do not disturb period can be set

Number of Extensions

Villa: 1 main VTH and 9 extensions
Apartment: 1 main VTH and 4 extensions

Storage

Supports micro SD card storage (up to 512 GB)

Network

Wi-Fi

Yes

Wireless Standard

IEEE 802.11b/g/n

Wireless Frequency Range

2.4 GHz

Max. Transmission Power

≤ 20 dBm @ 2400-2483.5 MHz

Bluetooth

Wireless Standard

BR/EDR/BLE

Wireless Frequency Range

2400-2483.5 MHz

Max. Transmission Power

≤ 20 dBm @ 2400-2483.5 MHz

Bluetooth

Yes

Zigbee

Wireless Standard

802.15.4

Wireless Frequency Range

2400-2483.5 MHz

Max. Transmission Power

≤ 10 dBm @ 2400-2483.5 MHz

Zigbee

Zigbee 3.0: Reserved to realize third-party access.

Sub 1G

Wireless Frequency Range

868-868.6 MHz

Max. Transmission Power

14 dBm @ 868-868.6 MHz

Modulation Method

FSK/GFSK

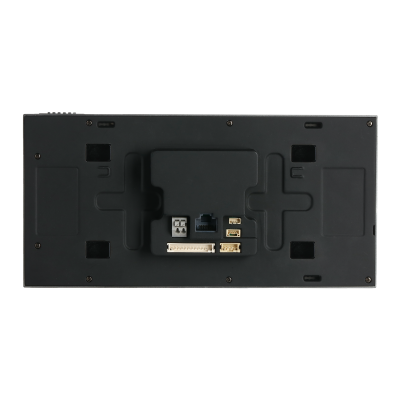

Port

RS-485

1

USB

1

Alarm Input

8 channels

Alarm Output

1 channel

Power Output

1 port (12 V, 200 mA)

Doorbell

Yes (use the alarm input port)

Network Port

1 × 10/100 Mbps Ethernet port

4-wire

1

Performance

Casing Material

PC + ABS

General

Appearance Color

Gray

Power Supply

12 VDC, 2 A
Standard PoE

Power Adapter

Optional

Installation

Flush Mount

Certifications

CE

Accessory

Included: RS-485, power output cable, bracket, alarm cable, and analog cable.
Optional: Power cord

Product Dimensions

210.2 mm × 103.1 mm × 32.2 mm (8.28" × 4.06" × 1.27") (H × W × D)

Operating Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–95% (RH), non-condensing

Operating Altitude

Below 3,000 m (9,842.52 ft)

Power Consumption

≤ 10 W (standby), ≤ 14 W (working)

Gross Weight

1,250 g (2.76 lb)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

30%–75%

Operating Environment

Indoor
