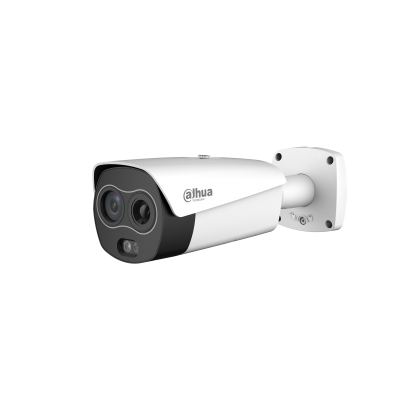

TPC-BF5421-T

·400 × 300 uncooled VOx thermal sensor technology

·Athermalized lens (thermal), focus-free

·Support body temperature measurement

·Measurement Accuracy: ±0.3°C, with blackbody

·Active deterrence with white light & siren

·2/1 alarm in/out

·Micro SD memory, IP67, PoE,ePoE

  • Specifications
  • Accessories
  • Download
  • Video

  • Thermal

    Detector Type

    Vanadium oxide uncooled focal plane detector

    Effective Pixels

    400 × 300

    Pixel Pitch

    17 μm

    Spectral Range

    8μm–14μm

    Thermal Sensitivity (NETD)

    ≤40 mK@f/1.0

    Focal Length

    13 mm

    Field of View

    13 mm: horizontal: 30°, vertical: 22.6°

    Focus Mode

    Fixed-focal

    Aperture

    F1.0

    Thermal Image Stabilization

    Electronic Image Stabilization

    Image Flip

    90°/180°/mirror

    Digital Detail

    Enhancement (DDE)

    Yes

    AGC

    Auto; manual

    Noise Reduction

    2D NR; 3D NR

    Color Palettes

    18 color modes selectable such as Whitehot/Blackhot/Ironrow/Icefire.

    Temperature

    Measurement Range

    30°C ~+45°C(86℉~113℉)


    Temperature Accuracy

    ±0.3°C with blackbody


    Temperature Mode

    Spot: 12

    Line: 12

    Area: 12

    Support 12 rules simultaneously

    Visible

    Image Sensor

    1/2.8 inch CMOS

    Effective Pixels

    1920(H)x1080(V)

    Min. Illumination

    Color: 0.005Lux; B/W: 0.0005Lux; 0Lux (IR on)

    Electronic Shutter Speed

    1/3s–1/30,000s

    Focal Length

    8mm

    Field of View

    H: 40°; V: 22°

    IR LEDs

    1

    Aperture

    F2.0

    IR On/Off control

    Auto; manual

    IR Distance

    ≥50m

    Audio and Video

    Video Compression

    H.265; H.264M; H.264H; H.264B; MJEPG

    Resolution

    Thermal
    Main stream:
    (1280 × 1024/1024 × 768/640 × 480/256 × 192@), 1280 × 960 by default;
    Sub stream: (640 × 512/256 × 192@), 256 × 192 by default
    Visible
    Main stream: (1920 × 1080/1280 × 720/704 × 576@), 1920 × 1080 by default;
    Sub stream: (704 × 576/352 × 288@), 355 x 288 by default

    Video Frame Rate

    Thermal:
    50Hz:
    Main stream (1fps-25fps),25fps by default;
    sub stream (1fps-25fps),15fps by default;
    60Hz:
    Main stream (1fps-30fps),30fps by default;
    sub stream (1fps-30fps),15fps by default;
    Visual:
    50Hz:
    Main stream (1fps-25fps),25fps by default;
    sub stream (1fps-25fps),15fps by default;
    60Hz:
    Main stream (1fps-30fps),30fps by default;
    sub stream (1fps-30fps),15fps by default;

    Audio Compression

    G.711a; G.711mu; AAC; PCM

    Image Encoding Format

    JPEG

    General Function

    Two-way Talk

    Yes

    Network Protocol

    HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

    Region of Interest (ROI)

    Yes

    Edge Storage

    FTP; Micro SD card (256G, hot plug)

    Browser

    IE: IE9 and the later,
    Google: 42 and the earlier
    Firefox: 52 and the earlier

    User/Host

    20 channels at most (the total bandwidth 64M)

    Security

    Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

    User Management

    Support 20 users at most and users are classified as two groups-administrator group and user group.

    Malfunction Detection

    Network disconnection; IP addresses conflict; SD card error (status or storage space)

    Interoperability

    CGI; Dahua SDK

    Power

    Power Supply

    12V±20% DC, 1.2A, PoE (802.3af), ePoE

    Power Consumption

    Basic: 5.0W
    Maximum: 12W (power adapter excluded)

    Environment

    Operating Temperature

    10°C to +30°C

    Operating Humidity

    ≤95%

    Self-Adaptive

    Auto heating to protect the chip under the cold environment

    Physical Characteristics

    Protection Grade

    IP67, anti-surge 6KV, anti-elctrostatic 8KV (touched by objects), anti-elctrostatic 15KV (air)

    Packaging Dimensions

    365 mm × 175 mm × 176 mm (14.37" × 6.89" × 6.93")

    Net Weight

    ≤1.4 kg (3.09 lb)

    Gross Weight

    ≤1.9 kg (4.19 lb)

    Certification

    Certifications

    CE; FCC
