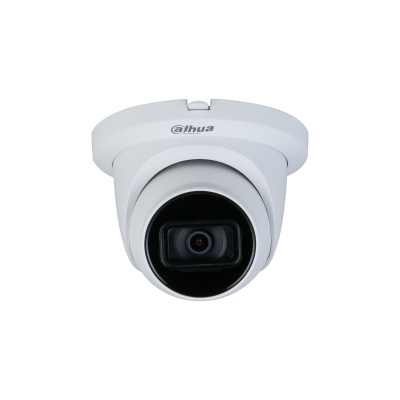

HAC-HDW1500TLMQ(-A)

5MP Starlight HDCVI Quick-to-install IR Eyeball Camera

* The parameters and datasheets below can only be applied to 1500-S2 series.

* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

> Max 25 fps@5MP (16:9 video output)

> Quick-to-install eyeball saves installation time
> CVI/CVBS/AHD/TVI switchable
> 3.6 mm fixed lens (2.8 mm optional)
> Built-in mic(-A)
> Max. IR length 30 m, Smart IR
> IP67, DC12V


  • Specifications
  • Accessories
  • Download
  • Camera

    Image Sensor

    1/2.7 inch CMOS

    Max. Resolution

    2880 (H) × 1620 (V)

    Pixel

    5MP

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL: 1/25s–1/100000s
    NTSC: 1/30s–1/100000s

    S/N Ratio

    >65 dB

    Min. Illumination

    0.005 Lux/F1.6, 30IRE, 0 Lux IR on

    Illumination Distance

    30 m (98.4 ft)

    Illuminator On/Off Control

    Auto; manual

    Illuminator Number

    1

    Pan/Tilt/Rotation Range

    Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Mount Type

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    F1.6

    Field of View

    2.8 mm: 132° × 111° × 58°

    (diagonal × horizontal × vertical)

    3.6 mm: 109° × 92° × 48°

    (diagonal × horizontal × vertical)

    Iris Type

    Fixed iris

    Close Focus Distance

    2.8 mm: 0.9 m (3.0 ft)

    3.6 mm: 1.6 m (5.2 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    63.6 m (208.7 ft)

    25.4 m

    (83.3 ft)

    12.7 m

    (41.7 ft)

    6.4 m

    (21.0ft)

    3.6 mm

    80 m

    (262.5 ft)

    32 m

    (105.0 ft)

    16 m

    (52.5 ft)

    8 m

    (26.2 ft)

    Video

    Frame Rate

    CVI:

    PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;

    NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps

    AHD:

    PAL: 4M@25 fps;

    NTSC: 4M@30 fps

    TVI:

    PAL: 4M@25 fps;

    NTSC: 4M@30 fps

    CVBS:

    PAL: 960H;

    NTSC: 960H

    Resolution

    5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)

    Day/Night

    Auto switch by ICR

    BLC

    BLC/HLC/DWDR

    WDR

    DWDR

    White Balance

    Auto; manual

    Gain Control

    Auto; manual

    Noise Reduction

    2D NR

    Smart IR

    Yes

    Mirror

    Off/On

    Privacy Masking

    Off/On (8 area, rectangle)

    Certifications

    Certifications

    CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

    Port

    Audio Interface

    One channel built-in mic (-A)

    Video Output

    Video output choices of CVI/TVI/AHD/CVBS by one BNC port

    Power

    Power Supply

    12V ±30% DC

    Power Consumption

    Max 3.2W (12V DC, IR on)

    Environment

    Operating Temperature

    -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

    Storage Temperature

    -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

    Protection Grade

    IP67

    Structure

    Casing

    Metal dome+metal cover+plastic decorative ring

    Camera Dimensions

    φ109.9 mm × 88.1 mm ( φ4.33" × 3.47" )

    Net Weight

    0.33 kg (0.73 lb)

    Gross Weight

    0.44 kg (0.97 lb)
