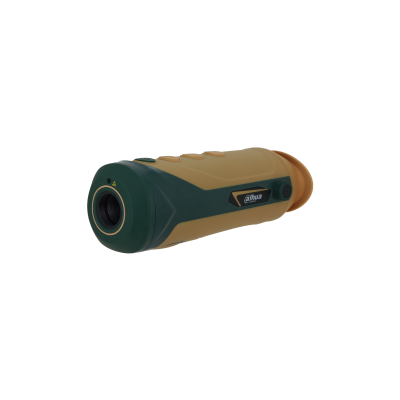

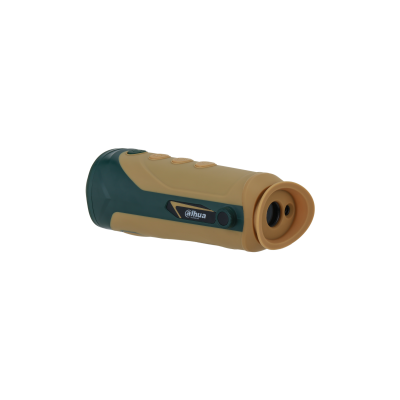

TPC-M20

Thermal Monocular Camera

> Vanadium oxide uncooled focal plane detector.

> Ultra-low power consumption.

> Fire detection and alarm.

> Connects to the mobile app through Wi-Fi.

> Connects to the external display through the CVBS port.

> Provides a laser for aiming.

> Calculates distance using video analysis.

> Lightweight and portable.

> IP67 rated.

  • ์‚ฌ์–‘
  • ์•ก์„ธ์„œ๋ฆฌ
  • ๋‹ค์šด๋กœ๋“œ
  • selector-pcimg

    ์ œํ’ˆ ์„ ํƒ๊ธฐ

    General

    Appearance

    Thermal Monocular Camera

    Type

    Monitor

    Thermal

    Detector Type

    Vanadium oxide uncooled focal plane detector

    Effective Pixels

    256 ร— 192

    Pixel Pitch

    12 ฮผm

    Spectral Range

    8 ฮผmโ€“14 ฮผm

    Sensitivity (NETD)

    โ‰ค40 mK@f/1.0

    Focal Length

    7.5 mm; 10 mm; 15 mm

    Aperture

    F1.0

    Field of View

    7.5 mm
    (H: 24.0ยฐ; V: 18.0ยฐ)
    10 mm
    (H: 17.3ยฐ; V: 13.1ยฐ)
    15 mm
    (H: 11.7ยฐ; V: 8.8ยฐ)

    Focus Control

    Fixed-focal

    Close Focus Distance

    7.5 mm
    1 m (3.28 ft)
    10 mm
    2 m (6.56 ft)
    15 mm
    3 m (9.84 ft)

    Detection Range

    7.5 mm

    345 m (1,131.89 ft)

    10 mm

    460 m (1,509.19)

    15 mm

    710 m (2,329.4 ft)

    Digital Zoom

    4 levels

    Color Palettes

    4 (white hot; alarm; black hot; iron red)

    Display

    Video Compression

    H.265

    Frame Rate

    50 Hz

    Display Screen Dimensions

    0.2 inch

    Resolution

    720 ร— 540

    Function

    Storage

    Micro SD card (Max. 256G)

    Laser Aiming

    180 m (590.55 ft), Class 2 (IEC 60825-1)

    Buzzer

    Yes

    Intelligence

    Fire Detection

    Yes

    Cold/Hot Spot Trace

    Yes

    Port

    Analog Output

    1 ร— CVBS output

    Wi-Fi Hotspot

    Yes

    USB

    Micro USB

    Power

    Power Supply

    5 VDC, 0.3 A or builtโ€“in battery

    Battery Capacity Display

    Yes

    Power Consumption

    <1.5 W

    Battery Life

    >9 h (Wi-Fi hotspot off, @25ยฐC)

    Charging Time

    <3 h

    Environment

    Operating Temperature

    โ€“20 ยฐC to +55 ยฐC (โ€“4 ยฐF to +131 ยฐF)

    Operating Humidity

    โ‰ค90%

    Storage Temperature

    โ€“20 ยฐC to +60 ยฐC (โ€“4 ยฐF to +140 ยฐF)

    Physical Characteristics

    Protection

    IP67

    Product Dimensions

    170.9 mm ร— 57.6 mm ร— 58.6 mm (6.73" ร— 2.27" ร— 2.31") (L ร— W ร— H)

    Packaging Dimensions

    205 mm ร— 148 mm ร— 111 mm (8.07" ร— 5.83" ร— 4.37") (L ร— W ร— H)

    Net Weight

    350 g (0.77 lb)

    Gross Weight

    1 kg (2.20 lb)

    Installation

    Handheld; tripod

    Power Adapter

    Included

    Lens

    Included

    Bracket

    Optional

    Drop Test Height

    2 m (6.56 ft)

    Certification

    Certification

    CE_DHQA-ESH-P21060763B
    FCC_DHQA-ESH-P21060764B
