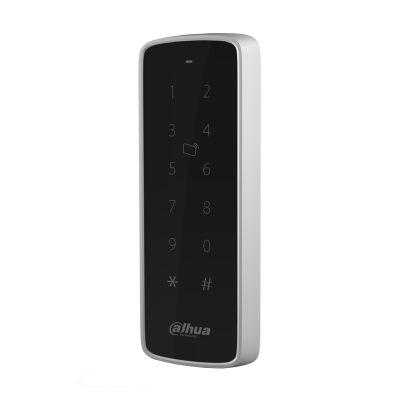

ASR2201D-B ASR2201D-BD

Slim Water-proof Bluetooth Reader

> Wiegand34(26 optional) bits RS-485 protocol
> Support OSDP;
> 13.56MHz(Mifare)
> 125KHz(EM-ID)
> Water-proof design
> Red, blue and green indicator LEDs
> Surface mounted installation


  • Specifications
  • Accessories
  • Download
  • Technical Specification

    Mode

    ASR2201D-B

    ASR2201D-BD

    System

    Main Processor

    32 Bit

    Read

    Read Format

    13.56MHz

    125KHz

    Read Range

    1cm–3cm (max.)

    Card Response

    <0.5s

    Bluetooth Range

    0m–5m

    Bluetooth Response

    <1s

    Function

    Water-proof

    IP55

    Interface

    To Controller

    RS485,Wiegand 34(26 optional)

    General

    Beep Tone

    Buzzer

    Power Supply

    9V–15V DC/200mA

    Operating Temperature

    -30°C to +60°C

    Working Humidity

    ≤95%

    Dimension(W×D×H)

    47.5mm×16mm×135mm

    Weight

    0.2kg

    Working Environment

    Outdoor

    Certificates

    CE

    Yes

    FCC

    Yes
