LM25-E231BN

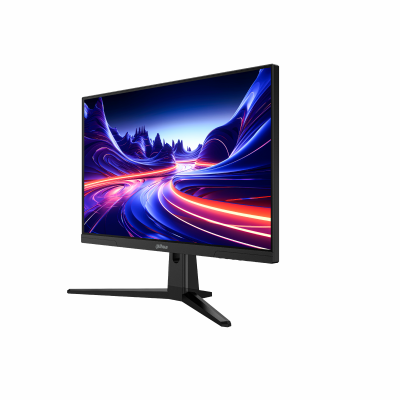

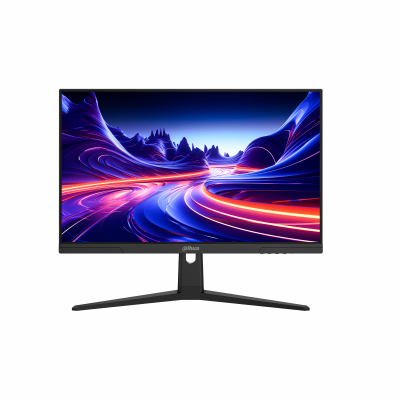

Dahua 24.5" FHD Gaming Monitor

Points clés
    200Hz
Demande commerciale
Fiche technique

Spécifications

Display

Model DHI-LM25-E231BN
LCD Technology IPS
Backlight ELED
Screen Size 24.5 inch
Aspect Ratio 16:9
Viewing Size 543.744 (H) × 302.616 (V) mm
Screen-to-Body Ratio ≥85%
Viewing Angle 178° (H) / 178° (V)
Display Mode Horizontal
Pixel Pitch 0.0944 mm × 0.2802 mm
Pixels Per Inch 89.91
Resolution 1920 (H) × 1080 (V)
Refresh Rate 200 Hz
Display Color 8 bit, 16.7M colors
Color Gamut 85% NTSC
Brightness 350 cd/m² (typ.)
Contrast Ratio 1000: 1
Response Time MPRT 1 ms, OD 0.5 ms
Lifespan 30,000 hrs
Surface Treatment Haze 25%, 3 H
Low Blue Light Software blue light protection

Function

HDR HDR 10

Device Ports

Input Port 1 × DP 1.4 (1920 × 1080@200 Hz), 1 × HDMI 2.0 (1920 × 1080@200 Hz)
Output Port 1 × Audio out

Power & Environmental Conditions

Power Supply 12 VDC, 3 A
Power Type power adapter
Power Consumption 18 W (basic), 19 W (typ.), 23.8 W (max)
Standby Power Consumption <0.5 W
Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity 10%–85% (RH)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Storage Humidity 5%–90% (RH)

General

Inclined Angle -5° ± 2° /20° ± 2°
Product Dimensions 557.7 mm × 330.6 mm × 58.0 mm (21.96" × 13.02" × 2.28") (W × H × D), without wall-mount bracket
Package Size 620 mm × 431 mm × 134 mm (24.41" × 16.97" × 5.28") (W × H × D)
Unilateral Splicing U/L/R/D: 6.98 mm/ 6.98 mm/ 6.98 mm/ 19.61 mm (0.27" / 0.27" / 0.27" /0.77")
Net Weight 2.93 kg (6.5 lb)
Gross Weight 4.0 kg (8.82 lb)
Casing Color Black
Control Mode Five-button
Status Indicator Light Yes
Wall Mount VESA 100 mm × 100 mm (3.94"×3.94")
Accessory Power adapter, DP cable, user's manual, legal and regulatory information etc.

Certification

Certifications CE EMC, CE LVD, CE ERP, CB
