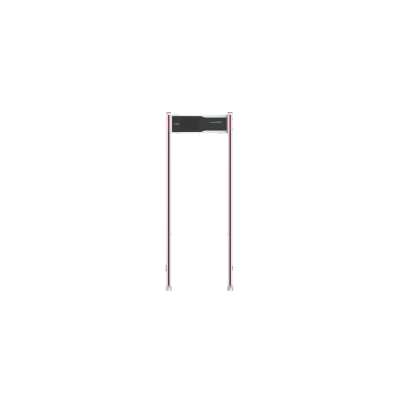

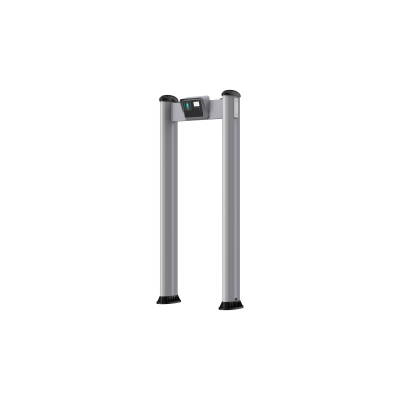

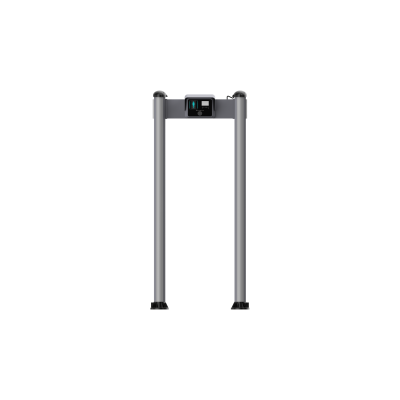

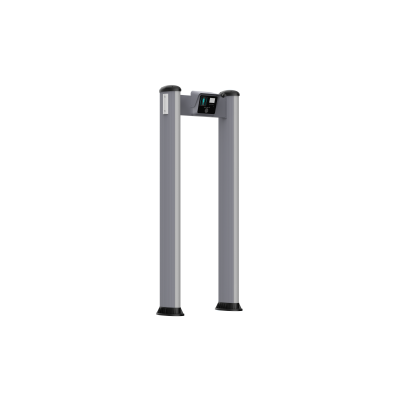

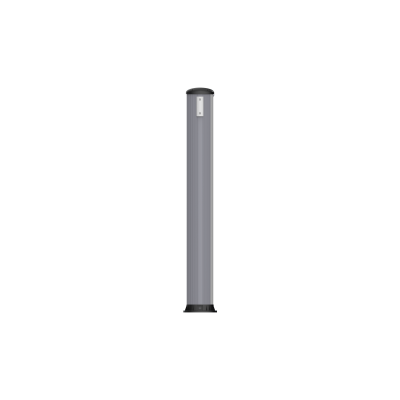

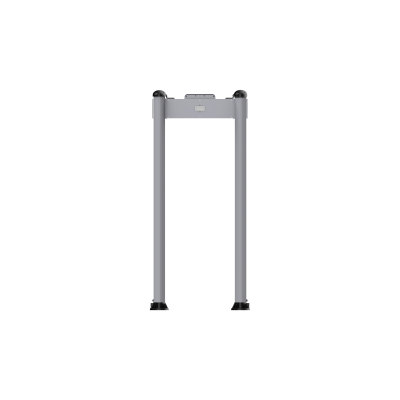

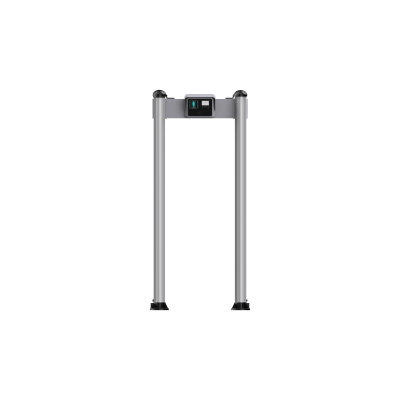

ISC-D318C
Walk-through Metal Detector
> 3.5-inch LCD screen and user-friendly interface.
> Monitoring and real-time display of ambient interference signal strength.
> Supports automatic and manual frequency search, as well as 20-level adjustable frequency.
> Supports the statistical record of pass number, and the respective record of pass number and alarm times.
> Supports the respective record of pass number and alarm number, which supports search by day.
> Modular design for easy installation.
> Low voltage design for more secure performance.
> Supports sensitivity adjustment of detection objects and 10,000-level adjustable sensitivity.
> Supports 12 scenarios and setting detection parameters for different scenarios.
> Supports the statistical record of pass number, and the respective record of pass number and alarm times.
> Supports outdoor installation and use, and IP65 level.
> Supports multiple detectors used in parallel with an interval of more than 50 cm.
Technology
Detection Type
Minimum detection type: a No.8 folding knife.
Precise Positioning
Equipped with dual-sided transmission and dual-sided reception capabilities, this system features 18 overlapping mesh detection areas that enable precise localization of detected objects. The detector panels are integrated with a row of LED indicators, providing a visual display of the alarm zones.
Multi-zone Alarm
Supports 6-12-18 zone settings, multiple positions of metal can be located simultaneously.
IR Sensor
Scattered infrared device reduces false and missed alarms, and achieves automatic statistics of alarm number and pass number.
Adjustable Sensitivity
Adjustable sensitivity: 256-level sensitivity available for each detection zone (0–255), which can be adjusted to the appropriate sensitivity according to the detection requirements (the larger the sensitivity value, the higher the sensitivity).
Leakage Current
The leakage current of the device during operation meets the safety requirements of electronic devices, less than 0.5mA.
Regular
Operating Voltage
12 VDC, equipped with 100-240 V, 50/60 Hz power adapter.
Max. Power Consumption
35 W
Typical Power Consumption
31.8 W
Whole Machine Weight
32 kg (70.55 lb)
Packaging Weight
38 kg (83.77 lb)
Product Dimensions
2,280 mm × 1,038 mm × 346 mm (89.76'' × 40.87'' × 13.6'') (H x W x D)
Packaging Dimensions
2,406 mm × 694 mm × 439 mm (94.65'' × 27.36'' × 17.28'') (L x W x H)
Operating Temperature
–20 °C to 60 °C (–4 °F to 140 °F)
Working Humidity
0% to 95%
Storage Temperature/Humidity
–20 °C to 60 °C (–4 °F to 140 °F)/ 0% to 95%
Power Button
The main power buttons locate on two sides of the detector.
Indicator
Green Working Indicator
Human-shaped Alarm Zone Prompt
18-Zone Human-shaped Alarm Panel
Environment Noise
Supports environment noise detection and interface dynamic real-time display signal level.
Installation
Vertical Mount
Port
RS-485 Port
*1
Alarm Input/Output
1-channel Input / 1-channel Output
Network Port
*1 RJ-45, 100 Mbps Ethernet port
Power Output
12 VDC
