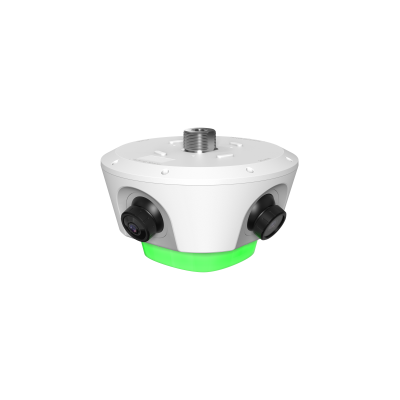

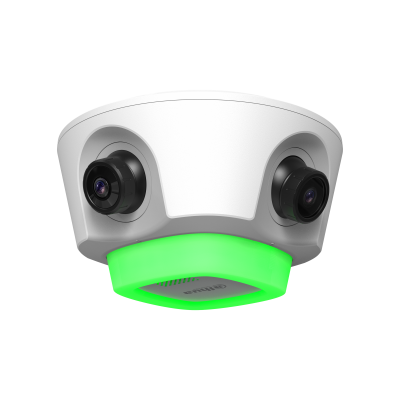

ITC514-PH6D-Q22-F21-POE
Dahua 5MP Spot Detection Camera
> Features illegal parking detection, smoke detection, unauthorized occupation, line crossing detection, sound and light alarms, and detects spaces that are being occupied by non-allowlist vehicles.
> In parking space mode, it can monitor up to 12 parking spaces in real time. The detection rate is higher than 99.5%. In license plate mode, it can monitor up to 8 parking spaces & license plates in real time. The detection rate is over 99.5%, and the recognition rate for European vehicle plates is over 98%.
> Supports dual lane monitoring.
> Offers 7 colors for indicating the parking status.
> Included RS-485 port for connecting external indicators. One indicator is assigned to each parking space.
> H.265 codec that supports high compression ratio and ultra-low bit rate.
> Supports H.264, H.265, and MJPEG flexible coding, and is applicable to various bandwidth and storage environments.
> Supports True WDR, 3D NR, HLC, BLC, and digital watermarking, and is suitable for indoor parking lots.
> PoE power supply and 12–48 VDC.
> The lens angle can be freely adjusted manually.
Basic
Image Sensor
1/2.7" CMOS
Max.Detection Spot
Parking space detection:12
Parking space detection+ License Plate recognition: 8
Indicator Light
1, 7 customizable colors (red, yellow, blue, green, cyan, white, and pink)
Electronic Shutter Speed
Auto/Manual 1/25 s–1/10,000 s
Pixel
5 MP
Image Resolution
2880 (H) × 1620 (V) (OSD black background is not calculated in the pixels)
Video Resolution
5 MP (2880×1620); 1080p (1920 × 1080); 720p (1280 × 720)
Noise Reduction
3D NR
WDR
100 dB
White Balance
Auto; Outdoor; Partial white balance; Manual; Natural; Street lamp
Video Compression
H.265;H.264B;H.264M;H.264H;MJPEG
Image Encoding Format
JPEG
Video Bit Rate
H.264: 2,488 kbps–30,720 kbps;
H.265: 2,488 kbps–30,720 kbps;
MJPEG: 7,465 kbps–30,720 kbps
Video Frame Rate
PAL: Main stream (1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream (704 × 576@25 fps)
Edge Enhancement
Yes
Exposure Mode
Auto; Manual (Select from shutter values or customize shutter range)
Field of View
Channel 1 (Parking Space): 2.1 mm
Channel 2 (Lane): 3.6 mm
Channel 3 (Parking Space): 2.1 mm
Channel 4 (Lane): 3.6 mm: Channel 1 (Parking Space): H: 141.1°; V: 74.5°; D: 170.1°;
Channel 2 (Lane): H: 90.3°; V: 47.8°; D: 108.6°;
Channel 3 (Parking Space): H: 141.1°; V: 74.5°; D: 170.1°;
Channel 4 (Lane): H: 90.3°; V: 47.8°; D: 108.6°
Lens Angle
Vertical adjustable (depression angle of 43°–0°)
Horizontal adjustable (from left 20° to right 20 °)
20° clockwise to 20° counterclockwise
DORI Distance
Lens
Detect
Observe
Recognize
Identify
Channel 1 (Parking Space): 2.1 mm
Channel 2 (Lane): 3.6 mm
Channel 3 (Parking Space): 2.1 mm
Channel 4 (Lane): 3.6 mm
78.0 m
31.2 m
15.6 m
7.8 m
Built-in Speaker
Yes, built-in speaker
Function
Security
Username and password authorization; MAC address binding; HTTPS encryption; IEEE 802.1x; network access control
Shutter Mode
Single shutter
OSD Overlay
Time; address; parking space No.; parking space status; plate number; vehicle model; vehicle logo and color
Alarm Event
Illegal access, security error and other events
Auto Registration
Yes
Image Tampering Prevention
Yes. Watermarks can be added to videos and images for verification.
Voice Broadcast
Voice broadcast (adjustable volume and customizable content)
Network Protocol
HTTP;HTTPS;TCP/IP;RTSP;NTP;DHCP
API
Yes
SDK
Yes
Interoperability
ONVIF (Profile S & Profile G & Profile T);CGI;ITSAPI
Intelligence
Vehicle Recognition
In the recommended installation and lighting condition, recognizes vehicle model, logo, color, and plate number, and collects metadata for unlicensed vehicles. Vehicle recognition rate is over 99.5%, and the recognition rate for European vehicle plates is over 98% .
Parking Spot Status Detection
Yes, indicator color is customizable
Illegal Parking Detection
Detects illegal parking events including vehicle occupying two parking spaces, non-allowlist vehicle occupying a parking space, small vehicle parked in a large vehicle's space and parking in a restricted area.
Non-motor Vehicle Detection
Supports the detection of non-motor vehicle occupancy.
Capture Triggered by Unlicensed Vehicle
Yes
Smoke and Fire Detection
Supports fire and smoke detection.
Unauthorized Occupation
Detects non-motor vehicles, traffic cones, shopping carts and no parking signs.
Port
RS-485
1
Network Port
1 × RJ-45 Ethernet port, 100/1000 Mbps network transmission
Power Output
12 VDC ± 10% voltage output, ≤ 1 A current output
General
Power Supply
12–48 VDC; PoE+ (802.3at)
Power Consumption
＜24 W
Operating Temperature
–30 °C to +50 °C (–22 °F to +122 °F)
Storage Temperature
–35 °C to +55 °C (–31 °F to +131 °F)
Operating Humidity
10%–95% (RH), non-condensing
Storage Humidity
10%–95% (RH), non-condensing
Protection
IP54
Anti-corrosion Level
Basic Protection
Product Dimensions
200.6 mm × 202.4 mm × 131.2 mm (7.90" × 7.97" × 5.17") (L × W × H)
Packaging Dimensions
250 mm × 250 mm × 200 mm (9.84" × 9.84" × 7.87") (L × W × H)
Net Weight
1.07 kg (2.36 lb)
Gross Weight
1.83 kg (4.03 lb)
Installation
Ceiling mount; bracket mount
Lens
Included
Lens Type
Fixed-focal
Focal Length
Channel 1 (Parking Space): 2.1 mm
Channel 2 (Lane): 3.6 mm
Channel 3 (Parking Space): 2.1 mm
Channel 4 (Lane): 3.6 mm
