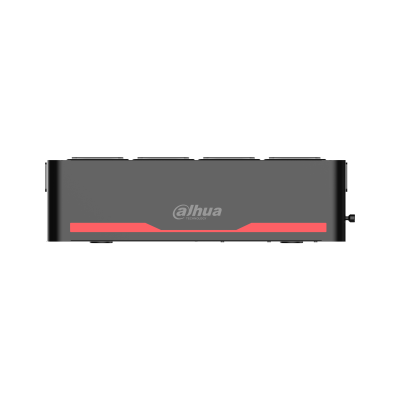

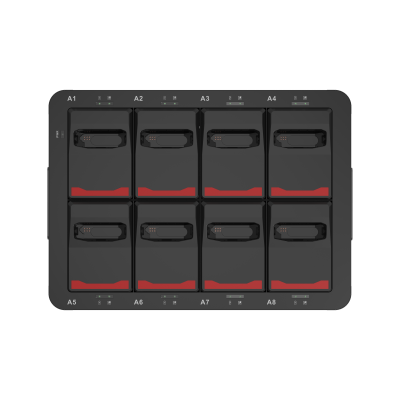

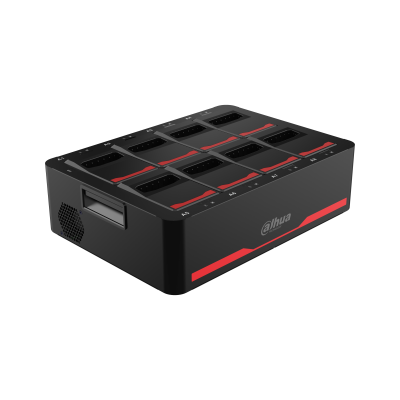

EEC400-D
Dahua Data Collection Station
> Downloads recording files from MPT230 series Body Camera and charges them when they are connected.
> Supports searching for files by time, user ID, type and more. It can search for videos, audios and images under type.
> The Body Camera firmware can be manually or automatically updated.
> Up to 4 hard drives with 16 TB each can be installed.
System
Main Processor
Industrial-grade embedded controller
Operating System
Embedded Linux

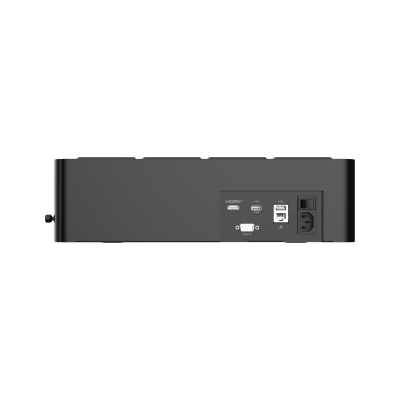

External Port
Network Port
1 × RJ-45 gigabit Ethernet ports
USB
2 (USB2.0 & USB3.0)
RS-232
1
Disk Interface
4× SATA3.0; max. 16 TB for one HDD. Use at least 2 HDDs for optimal collection speed
HDMI
1 (1920×1080@60 Hz)
Function
Device Access Status Indication
Yes
Device Update
Supports updating MPTs or body cameras automatically or manually;
Supports local or online updating of collection stationAuto Acquisition
Yes
Priority Acquisition
Yes
Web Configuration
Yes
FTP
Yes
Performance
Collection Speed
Max. downloading speed: 64 MB/s
General
Power Adapter
3-core power port
Power Supply
100–240 VAC, 50/60 Hz
Power Consumption
Single control module (no HDD): 7 W
Product Dimensions
398.8 mm × 280.0 mm × 107.0 mm (15.70" × 11.02" × 4.21")
Packaging Dimensions
477.0 mm × 373.0 mm × 249.0 mm (18.78" × 14.69" × 9.80")
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
0%–90% (RH), non-condensing
Operating Environment
Indoor
Net Weight
5.30 kg (11.69 lb) (without disks)
Gross Weight
7.00 kg (15.44 lb)
