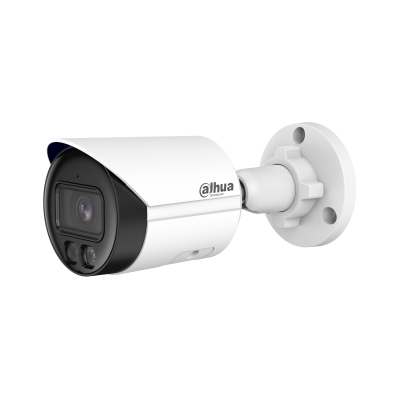

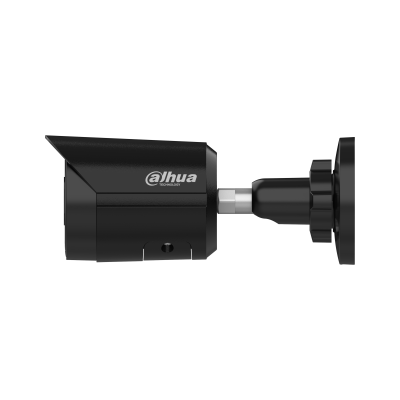

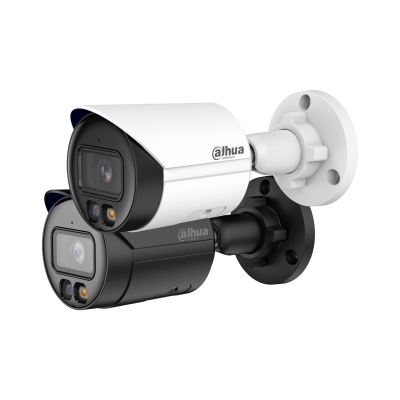

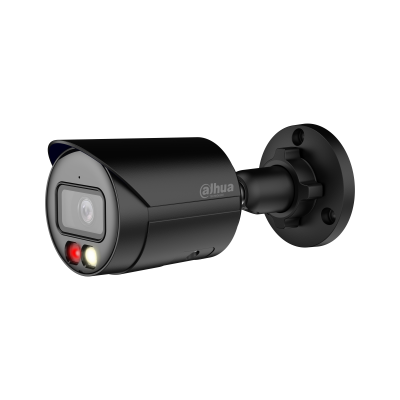

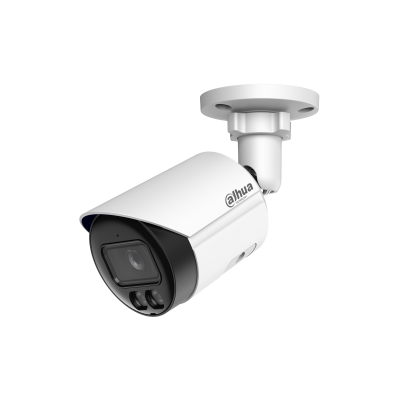

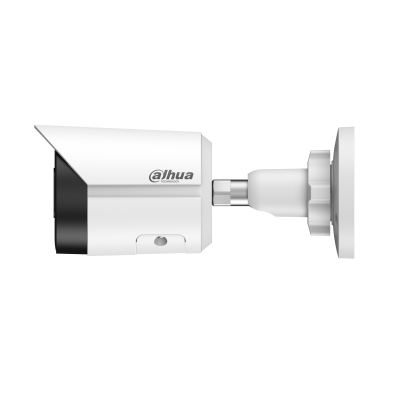

IPC-HFW2649S-S-IL
6MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera
>Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67 protection.
>SMD Plus.
Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
3288 (H) × 1850 (V)
ROM
128 MB
RAM
256 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.007 lux@F1.6 (Color, 30 IRE)
0.0007 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control
Auto;Manual
Illuminator Number
1 (IR LED); 1 (Warm light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F1.6
Field of View
2.8 mm: H: 112°; V: 61°; D: 132°
3.6 mm: H: 91°; V: 46°; D: 110°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.0 m (3.28 ft)
3.6 mm: 1.7 m (5.58 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
61.2 m
( 200.79 ft)
24.5 m
( 80.38 ft)
12.2 m
( 40.03 ft)
6.1 m
( 20.01 ft)
3.6 mm
85.4 m
( 280.18 ft)
34.2 m
( 112.20 ft)
17.1 m
( 56.10 ft)
8.5 m
( 27.89 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Intelligence
IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD
SMD Plus
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
Smart Codec
Smart H.265+; Smart H.264+
Video Frame Rate
Main stream: 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability
2 streams
Resolution
6M (3288 × 1850/3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
VBR;CBR
Video Bit Rate
H.264: 32 kbps–8192 kbps;
H.265: 12 kbps–8192 kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto/Manual
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Yes
Smart Dual Light
Yes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror
Yes
Privacy Masking
4 areas
Audio
Built-in MIC
Yes, built-in Mic
Audio Compression
G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network Port
RJ-45 (10/100 Base-T)
SDK and API
Yes
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
Interoperability
ONVIF (Profile S & Profile G &Profile T); CGI
User/Host
20 (Total bandwidth: 48 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser
IE;
Chrome;
Firefox
Management Software
Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client
iOS;Android
Cyber Security
Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Certification
Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power
Power Supply
12 VDC; PoE
Power Consumption
Basic: 2.5 W (12 VDC); 3.3 W (PoE);
Max.: 4.4 W (12 VDC); 5.4 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
≤95% (RH), non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
≤95% (RH), non-condensing
Protection
IP67
Structure
Casing Material
Metal
Product Dimensions
169.8 mm × 70 mm × 70 mm (6.69" × 2.76" × 2.76") (L × W × H)
Net Weight
0.47 kg (1.04 lb)
Gross Weight
0.59 kg (1.30 lb)
