Hardware

Sold in Pairs

No

Function Slots

Port 1: 1 × RJ-45 10/100 Mbps (LAN1)
Port 2: 1 × RJ-45 10/100/1000 Mbps (LAN2, PoE In)

Power Supply

PoE(802.3 af/at); 12-48 VDC, 0.58 A

Power Consumption

Idle:2.7W;Typical:3W;Max:3.6W

Antenna

IPEX

Memory

DDR 128 MB

Indicator Light

1 × Power
2 × LAN port
1 × Cloud management
1 × Wireless signal strength

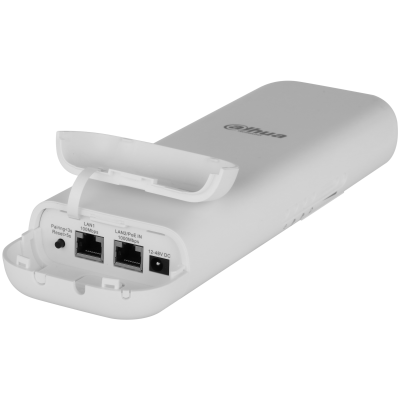

External Port

2 × RJ–45; 1 × DC IN(12-48V)

Performance

Wireless Standard

2.4 GHz: IEEE 802.11b/g/n
5 GHz: IEEE 802.11a/n/ac

Recommended Video Channels

Point to Point：
1000m：25-ch 4-MP IPC；
3000m：12-ch 4-MP IPC；
5000m：5-ch 4-MP IPC；
Point to Multi-Point：
1000m：8-ch 4-MP IPC；
500m：16-ch 4-MP IPC；
200m：32-ch 4-MP IPC；

Operating Frequency

2.4 GHz: 2.400 GHz–2.484 GHz；
5 GHz: 5.150 GHz–5.850 GHz

Wireless Transmission Rate

2.4 GHz: 300 Mbps;
5 GHz: 867 Mbps

Channel Width

20/40/80 MHz

Max. Output Power

CE EIRP:
≤20 dBm@2400-2483.5 MHz；
≤23 dBm@5150-5250 MHz；
≤20 dBm@5250-5350 MHz；
≤27 dBm@5470-5725 MHz；
≤14 dBm@5725-5850 MHz

Antenna Direction Angle

Horizontal: 90°; vertical: 30°

Receiver Sensitivity

11ac VHT20_MCS0:-94 dBm
11ac VHT20_MCS8:-72 dBm
11ac VHT40_MCS0:-91 dBm
11ac VHT40_MCS0:-68 dBm

Polarization

Vertical/horizontal

Transmission Distance

Point to Point:3 km;
Point to Multi-Point:1km;

Connected Wireless Terminals

8

PoE

PoE In: 802.3af/at

Function

Operating Mode

AP(default mode); STA

Equipment Management

WEB；
APP

Protection Mode

WPA-PSK/AES/TKIP

Security Mechanism

WPA/WPA2; hidden SSID

DFS

Yes

DHCP

Yes

Software

Device Management: wireless bridge configuration on the app through WLAN; local web management; cloud management (cloud web and app); quick configuration guide; scanning code to add; Wi-Fi hotspot access cloud;
System Management: system log; factory settings; backup restore configuration; import configuration; DMZ; diagnosis and restart; Network Management: DHCP/Static IP configuration; VLAN configuration; LLDP; topology display;
Wireless Network Management: 2.4 GHz Wi-Fi access management; working mode selection (access point/client); hide SSID (only access point); wireless output power adjustment; channel selection and channel width configuration; Protection mode configuration (non-encrypted and WPA2-PSK; wireless frame segmentation and aggregation

General

Operating Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Storage Temperature

–40 °C to +80 °C (–40 °F to +176 °F)

Operating Humidity

5%–95% (RH), non-condensing

Net Weight

0.35 kg (0.77 lb)

Gross Weight

0.58 kg (1.28 lb)

Product Dimensions

268 mm × 82 mm × 35 mm (10.55" × 3.23" × 1.38") (L × W × H)

Packaging Dimensions

138mm×66mm×347mm (L × W × H)

Protection

IP65

Statics Protection

Air discharge: 15 kV;
Contact discharge: 8 kV

Lightning Protection

Common mode: 6 kV;
Differential mode: 4 kV

Installation

Pole mount

Certifications

CE

Packing List

1 × Wireless bridge;
1 × Metal hoop;
1 ×Wall-Mount Bracket ;
1 × Quick start guide;
1 × Legal and regulatory information
