Technical Specification

Model

DH-PFM976-631

Material

Material

PC + brass

Gold Plating Thickness

15u inch

Flammability Rating

UL94V-2

Electrical

Voltage

150V AC MAX

Rated Current

1.5AMPS@25℃

Contact Resistance

≤20mΩ

Insulation Resistance

1000MΩ Min. @100V DC

Withstand Voltage

1000V AC RMS/1500V DC @ 0.5mA 50Hz or 60Hz 1Minute

Mechanical

Strength

50N for 60s±5s

Service life

750 insertions

Environmental

Operating Temperature

-25℃ to +55℃(-13℉ to +131℉)

Storage Temperature

-10℃ to +40℃(14℉ to +104℉)

Environment Humidity

<80%RH

Storage Time

12 months

Structural

Cable Type

Single strand

Wire Diameter

24 to 26 AWG

Cable Insulation Diameter

0.89 to 0.99mm(0.035" to 0.040")

Cable Sheath Maximum Diameter

5.7mm(0.022")

Packaging Method

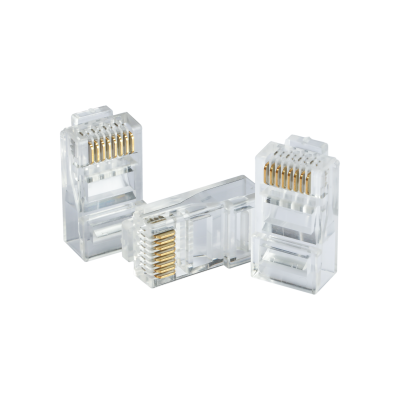

1pc=1box, 100pcs RJ45 connectors/box
