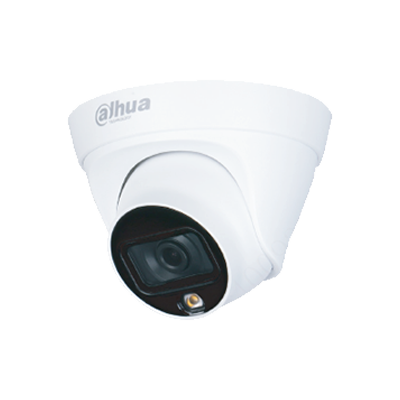

IPC-HDW1239T1-LED-S5(only for Jordan)

2MP Lite Full-color Fixed-focal Eyeball Netwok Camera

> 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in warm light, and the max. illumination distance is 15 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
> 12V DC/PoE power support
> IP67 protection


  • Specifications
  • Accessories
  • Download

  • Camera

    Image Sensor

    1/2.8" CMOS

    Effective Pixels

    1920 (H) × 1080 (V)

    ROM

    16 MB

    RAM

    64 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100000 s

    Min. Illumination

    0.005 lux@F1.6 (Color, 30 IRE)

    0.0005 lux@F1.6 (B/W, 30 IRE)

    0 lux (Illuminator on)

    S/N Ratio

    > 56 dB

    Illumination Distance

    2.8 mm: 10 m (32.81 ft) (Warm light)

    3.6 mm: 15 m (49.21 ft) (Warm light)

    Illuminator On/Off Control

    Auto; Manual

    Illuminator Number

    1 (Warm light)

    Pan/Tilt/Rotation Range

    Pan: 0°–360°

    Tilt: 0°–78°

    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Mount Type

    M12

    Focal Length

    2.8 mm
    3.6 mm

    Max. Aperture

    2.8 mm: F1.6

    3.6 mm: F1.6

    Field of View

    2.8 mm: Pan 110° × Tilt 59° × Diagonal 132°

    3.6 mm: Pan 91° × Tilt 48° × Diagonal 109°

    Iris Type

    Fixed

    Close Focus Distance

    2.8 mm: 0.6 m (2.0 ft)

    3.6 mm: 1.1 m (3.6 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    37.3 m
    (122.4 ft)

    14.9 m

    (48.9 ft)

    7.5 m

    ( 24.6 ft)

    3.7 m
    (12.1 ft)

    3.6 mm

    53.3 m

    (174.9 ft)

    21.3 m

    (69.9 ft)

    10.7 m
    (35.1 ft)

    5.3 m
    (17.4 ft)

    Video

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG

    Smart Codec

    Yes

    Video Frame Rate

    Main Stream:

    1920 × 1080 (1 fps–25/30 fps)

    Sub stream:

    704 × 576 (1 fps–25 fps)

    704 × 480 (1 fps–30 fps)

    Stream Capability

    2 streams

    Resolution

    1080p (1920 × 1080); 1.3m (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 32 Kbps–6144 Kbps
    H.265: 12 Kbps–6400 Kbps

    Day/Night

    Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    DWDR

    White Balance

    Auto/natural/street lamp/outdoor/manual/regional custom

    Gain Control

    Manual/Auto

    Noise Reduction

    3D DNR

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest(RoI)

    Yes (4 areas)

    Smart Light

    Yes

    Image Rotation

    0°/90°/180°/270° (Support 90°/270° with 1080p resolution.)

    Mirror

    Yes

    Privacy Masking

    4 areas

    Network

    Network

    RJ-45 (10/100 Base-T)

    Protocol

    IPv4; IPV6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; DDNS ;Multicast

    Interoperability

    ONVIF (Profile S); CGI; P2P; Genetec

    User/Host

    20

    Edge Storage

    FTP; Dahua Cloud

    Browser

    IE
    Chrome
    Firefox

    Management Software

    Smart PSS; DSS; DMSS

    Mobile Phone

    IOS; Android

    Certification

    Certifications

    CE-LVD: EN62368-1
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
    FCC: 47 CFR FCC Part 15, Subpart B

    Power

    Power Supply

    12V DC/PoE (802.3af)

    Power Consumption

    <4.8 W

    Environment

    Operating Conditions

    -40°C to +60°C (-40°F to +140°F)/less than ≤ 95%

    Storage Temperature

    -40°C to +60°C (-40°F to +140°F)

    Ingress Protection

    IP67

    Structure

    Casing

    Metal + plastic

    Dimensions

    85.5 mm × Φ109 mm (3.4" × Φ4.3")

    Net Weight

    0.24 kg (0.5 lb)

    Gross Weight

    0.37 kg (0.8 lb)
