YJ104

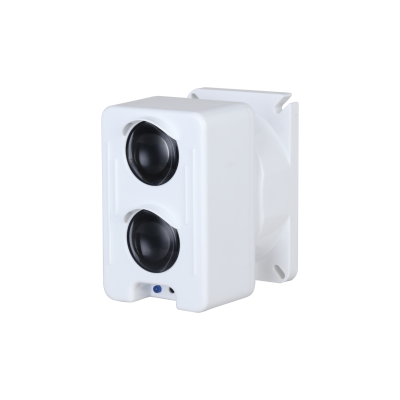

Linear Beam Detector


  • Specifications
  • Accessories
  • Download
  • Technical Specification

    Working Voltage

    24V (36V to 18V)

    Working Current

    30mA (25mA to 45mA)

    Indicator Light

    Standby: Blue indicator flashes once every 4 seconds

    Alarm: Red indicator is steady on

    Working Distance

    5 m—100 m (16.40 ft—328.08 ft)

    Alarm Sensitivity

    1.8dB

    Dimensions

    78.5 mm × 123.0 mm × 115.0 mm (3.09"× 4.84" × 4.53")

    Weight

    0.3 kg (0.66 lb)

    Operating Temperature

    -35°C to +65°C (-31°F to +149°F)

    Operating Humidity

    ≤ 95% RH (non condensing)

    Adjustment Angle

    About ±5° up and ±10° down

    Installation Angle

    <15° offset :±0.2 m/60 m
