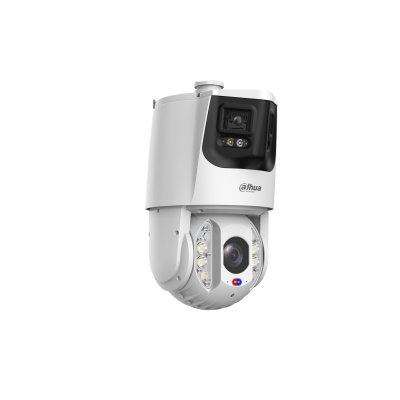

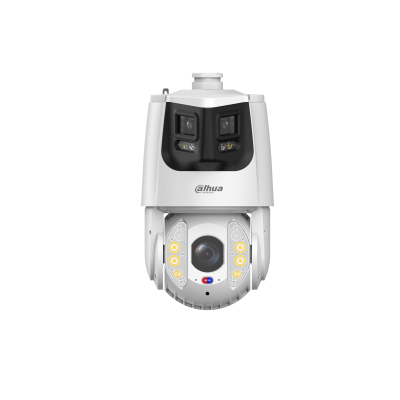

SDT6E432-8P-MB-A-PV1 new-products

8+4MP 32x Smart Dual Illumination Active Deterrence X-Spans Network PTZ Camera

> Overview channel: Outputs 180° wide angle splicing image Max. 25/30 fps@8M
> Detail channel: 1/2.8"4Megapixel STARVIS™ CMOS 32× optical zoom Max. 25/30 fps@4M
> IR distance up to 250m
> Warm light distance up to 100m
> Xinghan Large-Scale AI Models
> WizTracking
> Face detection
> Perimeter protection Active deterrence
> Smart dual light +
> Built-in dual mics and a speaker for two-way talk
> Sound and light alarm (red and blue lights)
> Gyroscope Image Stabilization (GIS)
> Acupick
> SMD 4.0
> IP67
> IK10


  • Specifications
  • Accessories
  • Download
  • Camera

    Image Sensor

    Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS

    Pixel

    Overview channel: 8 MP; Detail channel: 4 MP

    Max. Resolution

    Overview channel: 4096 (H) × 1860 (V); Detail channel: 2560 (H) × 1440 (V)

    ROM

    Overview channel: 4 GB; Detail channel: 4 GB

    RAM

    Overview channel: 2 GB; Detail channel: 2 GB

    Electronic Shutter Speed

    1 s–1/30,000 s

    Scanning System

    Progressive

    Min. Illumination

    Overview channel:

    0.005 lux@F1.4 (Color, 30 IRE)

    0.0005 lux@F1.4 (B/W, 30 IRE)

    0 lux (illuminator on)

    Detail channel:

    0.005 lux@F1.6 (Color, 30 IRE)

    0.0005 lux@F1.6 (B/W, 30 IRE)

    0 lux (illuminator on)

    Illumination Distance

    Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light)

    Detail channel: 100 m (328.08 ft) (warm light); 250 m (820.21 ft) (IR)

    Illuminator On/Off Control

    Overview channel: Manual; Auto; Off

    Detail channel: Zoom Prio; Manual; Auto; Off

    Illuminator Number

    Overview channel: 2 (IR light); 2 (White light); Detail channel: 6 (Dual light fusion)

    Lens

    Focal Length

    Overview channel: 2.8 mm; Detail channel: 4.8 mm–154 mm

    Max. Aperture

    Overview channel: F1.4; Detail channel: F1.6-F4.0

    Field of View

    Overview channel: H: 180°; V: 86°; Detail channel: H: 55.8°–2.3°; V: 31.9°–1.3°; D: 63.7°–2.7°

    Optical Zoom

    Overview channel: NA; Detail channel: 32×

    Focus Control

    Auto; manual; semi-auto

    Close Focus Distance

    Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–1.5 m (0.33 ft–4.92 ft)

    Iris Control

    Overview channel: NA; Detail channel: Auto; manual; iris prio

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    Overview channel: 2.8 mm

    56.0 m

    ( 183.72 ft)

    22.4 m

    ( 73.49 ft)

    11.2 m

    ( 36.74 ft)

    5.6 m

    ( 18.37 ft)

    Detail channel: W

    96.0 m

    ( 314.96 ft)

    37.9 m

    ( 124.41 ft)

    19.2 m

    ( 62.99 ft)

    9.6 m

    ( 31.50 ft)

    T

    3080.0 m

    ( 10104.99 ft)

    1216.6 m

    ( 3991.47 ft)

    616.0 m

    ( 2021.00 ft)

    308.0 m

    ( 1010.50 ft)

    DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    PTZ

    Pan/Tilt Range

    Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180°

    Manual Control Speed

    Pan: 0°/s–260°/s; Tilt: 0°/s–140°/s

    Preset Speed

    Pan: 300°/s; Tilt:200°/s

    Preset

    300

    Tour

    8 (up to 32 presets per tour)

    Pattern

    5

    Scan

    5

    Power-off Memory

    Yes

    Idle Motion

    Preset;Pattern;Tour;Scan

    Intelligence

    Video Metadata

    Overview channel: NA

    Detail channel: Supports detection of motor vehicles, non-motor vehicles, faces and human bodies, optimization, capturing pictures, and uploading high-quality face snapshots. It extracts attributes from motor vehicles and non-motors, detecting up to 10 attributes for motor vehicles and 8 for non-motor vehicles. It also extracts attributes from human faces and bodies, detecting up to 6 attributes for faces, and 8 for bodies.

    IVS (Perimeter Protection)

    Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking

    Face Detection

    Overview channel: NA

    Detail channel: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.

    Vehicle Density

    Overview channel:Vehicle density; parking upper limit; traffic congestion; vehicle status alarm

    Detail channel: NA

    Construction Monitoring

    Overview channel: NA

    Detail channel: Detects 6 helmet colors: Red, orange, yellow, blue, white, and black. An alarm will be triggered when a person is not wearing a helmet or when the color of the helmet that they are wearing does not match the configured color. It also supports compliance detection for work uniforms. Up to 5 work uniform sample libraries can be uploaded, which together can contain up to 1,000 images (the images must be 1080p and in the JPG format). An alarm will be triggered when the similarity between the detected work uniform and the samples in the library is below the set threshold (that is, below the minimum compliance standard for work uniforms). The system supports detecting the attributes of work uniforms such as the color of the uniform, and whether or not the person is wearing a mask and wearing shoe covers. An alarm will be triggered when the target is detected as not meeting the set requirements. It also detects and triggers alarms when only one person is in the construction site, and when no one is present in the detection area such as when a worker leaves their post or an area is left unmanned.

    Smart Tracking

    WizTracking

    Crowd Distribution Map

    Overview channel: Crowd map (Large-Scale AI Models), global crowd density; crowd density in area; people counting in area; crowd status

    Detail channel: NA

    SMD

    SMD 4.0

    AcuPick

    Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets

    Auto Patrol

    Overview channel: NA

    Detail channel: After an IVS event occurs, the PTZ camera immediately initiates automated patrol of predefined key points to quickly cover potential risk areas and detect unknown threats in real time.

    Active Deterrence

    Light Warning

    Red-Blue light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low

    Sound Warning

    Offers 11 sound alarm and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10.

    Video

    Video Compression

    Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

    Streaming Capability

    3 streams

    Resolution

    Overview channel: 8M (4096 × 1860); 2M (2048 × 928); 1080p (1920 × 1080); 720p (1280 × 720); 1024 × 448; D1 (704 × 576/704 × 480);VGA (640 × 480);CIF (352 × 288/352 × 240); Detail channel: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);VGA (640 × 480); CIF (352 × 288/352 × 240)

    Video Frame Rate

    Overview channel: Main stream: 4096 × 1860 @(1–25/30 fps) Sub stream 1: 1024 × 448/D1/VGA/CIF @(1–25/30 fps) Sub stream 2: 2048 × 928/1080p/1.3M/720p @(1–25/30 fps); Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF @(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    Overview channel: H264: 128 kbps–16,384 kbps H265: 51 kbps–13,312 kbps; Detail channel: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps;

    Day/Night

    Overview channel: Auto; Color; B/W; Electronic

    Detail channel: Auto; Color; B/W; Electronic

    BLC

    Yes

    WDR

    Overview channel: DWDR; Detail channel: 120 dB

    HLC

    Yes

    White Balance

    Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

    Gain Control

    Overview channel: Auto; manual; gain prio Detail channel: Auto; manual; gain prio

    Noise Reduction

    Overview channel: 2D NR; 3D NR

    Detail channel: Auto: 2D NR; 3D NR

    Motion Detection

    Yes

    Region of Interest (RoI)

    Yes

    Image Stabilization

    Overview channel: NA

    Detail channel: Gyroscope Image Stabilization (GIS)

    Defog

    Overview channel: Electronic Detail channel: Electronic

    Digital Zoom

    Overview channel: NA; Detail channel: 16×

    Image Rotation

    Overview channel: NA Detail channel: 180°

    Privacy Masking

    Up to 24 areas can be set, with up to 8 areas in the same view Multiple colors and mosaic available

    S/N Ratio

    ≥55 dB

    Audio

    Audio Compression

    PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729

    Built-in MIC

    Yes

    Built-in Speaker

    Yes

    Network

    Network Port

    RJ-45 (100/1,000 Base-T)

    Network Protocol

    HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS

    Interoperability

    ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P

    Streaming Method

    Unicast/Multicast

    User/Host

    20 (total bandwidth: 64 M)

    Storage

    Micro SD card (512 GB); FTP/SFTP; NAS

    Browser

    web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions

    Management Software

    DMSS;DSS Pro

    Mobile Client

    iOS;Android

    Certification

    Certifications

    CE:EN55035;EN IEC61000-3-2;EN55032;EN60950;EN62368-1

    Port

    RS-485

    1 (Bit range: 1200 bps–9600 bps)

    Audio Input

    1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))

    Audio Output

    1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))

    Alarm Input

    2 (on-off value input: 0–5 VDC)

    Alarm Output

    1 channel

    Alarm Linkage

    Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light

    Alarm Event

    Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

    Power

    Power Supply

    36 VDC/2.23 A ± 25%; PoE++(802.3bt)

    Power Consumption

    Basic power consumption: 18 W

    Max. power consumption: 40 W (IR + intelligent functions + PTZ + Siren and Light Active Deterrence)

    Power Adapter

    Included

    Environment

    Operating Temperature

    –40 °C to +70 °C (–40 °F to +158 °F)

    Operating Humidity

    ≤95%

    Protection

    IP67;IK10;TVS 6000 V lightning proof; surge protection; voltage transient protection

    Structure

    Casing Material

    Plastic; aluminum alloy

    Product Dimensions

    247 mm × 202 mm × 359.8 mm (9.72" × 7.95" × 14.17") (L × W × H)

    Net Weight

    5.3 kg (11.68 lb)

    Gross Weight

    7.12 kg (15.7 lb)
