VTO1301R-W

Overview Specifications Download Sales Enquiry
Compare Favourite

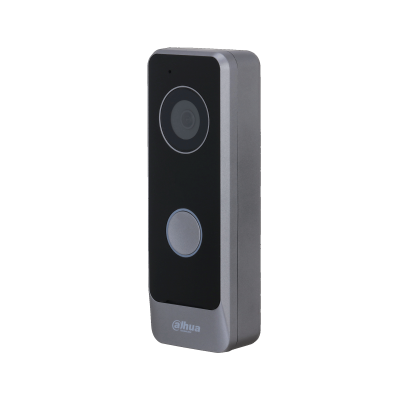

VTO1301R-W

IP & Wi-Fi Villa Door Station

Key Points
    • Ultra Slim Design
    • 2 MP Camera
    • Video Call via App
    • Wi-Fi Support
    • IP65
Sales Enquiry
Datasheet

Specifications

System

Main Processor

Embedded Processor

Button Type

Mechanical

Network Protocol

RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

Basic

Noise Reduction

3D NR; 2D NR

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction

Audio Bit Rate

16 kHz, 16 bit

Function

Web Configuration

Yes

Wi-Fi

Yes

Wireless Standard

IEEE 802.11b; IEEE 802.11g; IEEE 802.11n

Wireless Frequency Range

2.4 GHz

Performance

Casing

PC + ABS

Alarm

Tamper Alarm

Yes

General

Appearance color

Light grey

Power Supply

12–33 VDC, 1 A

Power Adapter

Optional

Installation

Surface Mount

Certifications

CE; FCC

Accessory

Included: Alarm power ribbon cable, rain cover

Product Dimensions

140.7 mm × 50.7 mm × 27 mm (5.54" × 2.00" × 1.06")

Protection

IP65

Operating Temperature

–40 °C to +55 °C (–40 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Altitude

0 m–3,000 m (0 ft–9,842.51 ft)

Power Consumption

≤ 3 W (standby), ≤ 5 W (working)

Gross Weight

0.34 kg (0.75 lb)

Net Weight

0.13 kg (0.29 lb)
