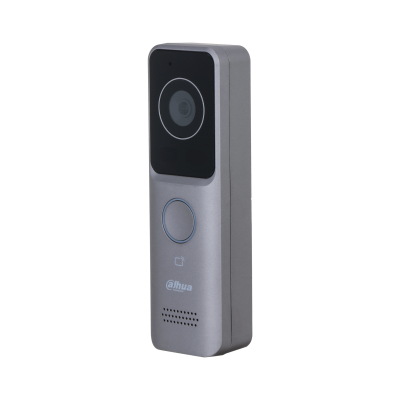

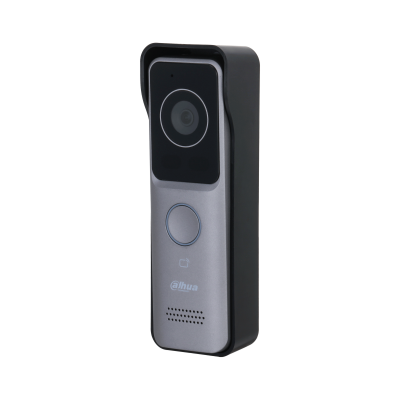

VTO2311R-WP

IP & Wi-Fi Villa Door Station

> Ultra slim design.
> PC and ABS material make it ideal for indoor and outdoor use.
> 1/2.8" 2-MP HD CMOS camera.
> Offers two–way video call with indoor monitors.
> Video and voice messages from visitors can be checked on the indoor monitor
> Video call and unlocking through app.
> IR illumination and auto WDR.
> Wi-Fi connection.
> IP65 rated.
> H.264 and H.265.
> Unlock with IC card.

> PoE power supply.


  • Specifications
  • Accessories
  • Download
  • System

    Main Processor

    Embedded Processor

    Button Type

    Mechanical

    Interoperability

    ONVIF; CGI

    Network Protocol

    RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

    Basic

    Camera

    1/2.8" CMOS 2-MP HD camera

    Field of View

    H: 110°; V: 62°; D: 133°

    WDR

    120 dB

    Noise Reduction

    3D NR; 2D NR

    Video Compression

    H.264; H.265

    Video Resolution

    Main stream: 720p, WVGA, D1, and CIF
    Sub stream: 1080p, WVGA, D1, QVGA, and CIF

    Video Frame Rate

    PAL: 25 fps
    NTSC: 30 fps

    Video Bit Rate

    768 kbps–8 Mbps

    Light Compensation

    Auto IR

    Day/Night

    Auto (ICR)/Color/B/W; Color/B/W

    Audio Compression

    G.711a; G.711u; PCM

    Audio Input

    1

    Audio Output

    Built-in speaker

    Audio Mode

    Two-way audio

    Audio Enhancement

    Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction

    Audio Bit Rate

    16 kHz, 16 bit

    Function

    Communication Mode

    Full digital

    Unlock Mode

    Card; app; indoor monitor

    Card Type

    IC card

    Auto Snapshot

    Yes (SD card is inserted in the indoor monitor or door station)

    Leave Videos

    Yes (SD card inserted in VTH/VTO is needed)

    Web Configuration

    Yes

    Wi-Fi

    Yes

    Wireless Standard

    IEEE 802.11b; IEEE 802.11g; IEEE 802.11n

    Wireless Frequency Range

    2.4 GHz

    Storage

    Micro SD card (max. 256 GB)

    Performance

    Card Reading Distance

    0 cm–3 cm (0"–1.18")

    Issue Card Locally

    Yes

    Casing

    PC+ABS

    Capacity

    Card Capacity

    3000

    Port

    Exit Button

    1

    Door Status Detection

    1

    Lock Control

    1

    Network Port

    1 × RJ-45 10/100 Mbps Ethernet port

    Alarm

    Tamper Alarm

    Yes

    General

    Appearance color

    Light grey

    Power Supply

    12–33 VDC, 1 A ; Standard PoE

    Power Adapter

    Optional

    Installation

    Surface Mount

    Certifications

    CE; FCC

    Accessory

    Included: Alarm power ribbon cable, rain cover

    Product Dimensions

    160 mm × 50 mm × 30 mm (6.30" × 1.97" × 1.18")

    Protection

    IP65

    Operating Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Operating Humidity

    10%–90% (RH), non-condensing

    Operating Altitude

    0 m–3,000 m (0 ft–9,842.51 ft)

    Power Consumption

    ≤ 3.5 W (standby), ≤ 6 W (working)

    Gross Weight

    0.4 kg (0.88 lb)

    Net Weight

    0.18 kg (0.40 lb)
