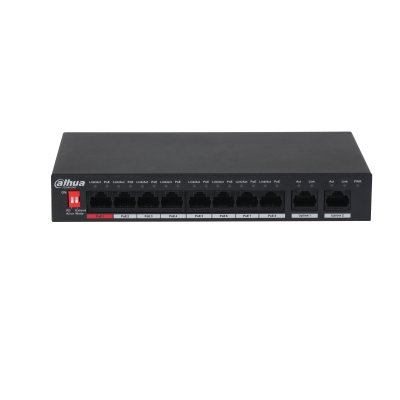

PFS3010-8ET-96

8-Port PoE Switch (Unmanaged)

> Layer two commercial switch
> Supports PoE power management
> Supports wall-mount installation
> Supports anti-theft lock hole
> MAC auto learning and aging, MAC address capacity is 16K
> Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
> RJ45 port supports 10/100 Mbps self-adaptation
> Supports 250 meters long distance PoE transmission
> Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply



  • Specifications
  • Accessories
  • Download
  • Technical Specification

    Model

    PFS3010-8ET-96

    Ethernet Port

    8*10/100Mbps PoE ports

    2*10/100/1000Mbps ports

    PoE Power Consumption

    Port1≤60W, Port2-8≤30W, Total≤96W

    PoE PIN Assignment

    1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

    PoE Power Management

    Support

    PoE Protocol

    IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

    Switching Capacity

    5.6Gbps

    Packet Forwarding Rate

    4.17Mpps

    Packet Buffer Memory

    4Mb

    MAC Table Size

    16K

    Flow Control

    Enable by default

    Application Humidity

    5%~95%

    Power

    DC 48~57V power adapter

    Lightning Protection

    Common Mode 2KV

    Differential Mode 1KV

    ESD Protection

    Air Discharge 8KV

    Contact Discharge 6KV

    Working Temperature

    -10°C~55°C

    Weight

    490g

    Dimension(W×D×H)

    190mm×100mm×30mm
