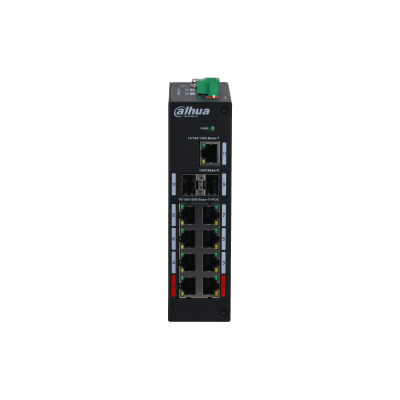

PFS3211-8GT-120

11-Port Unmanaged Desktop Switch with 8-Port PoE

* The parameters and datasheets below can only be applied to V2.0 (version 2.0)
> Intelligent PoE
> 8-pin assignment PoE power supply
> Long distance PoE
> PoE watchdog
> BT 90W
> All-giga ports
> Wide working temperature


  • Specifications
  • Accessories
  • Download
  • Hardware Feature

    Ethernet Port

    Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)

    Port 9-10: 2 × SFP 1000 Mbps (uplink)

    Port 11: 1 × RJ-45 10/100/1000 Mbps (uplink)

    PoE Power Consumption

    Port 1-2≤ 90W, Port 3-8 ≤30W, Total≤120W

    Power Consumption

    Idling: 5 W

    Full load: 120 W

    Standard

    IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3az/IEEE 802.3ab

    PoE

    PoE Protocol

    IEEE 802.3af/ IEEE 802.3at/ Hi-PoE/IEEE 802.3bt

    Power Supply Pin

    1,2,4,5 (V+),3,6,7,8 (V-)

    Long Distance

    250 m long distance PoE transmission

    PoE Power Management

    Yes

    PoE Watchdog

    Yes

    Performance

    Switching Capacity

    33 Gbps

    Packet Forwarding Rate

    16.37 Mpps

    Packet Buffer Memory

    1.75 Mbit

    Flow Control

    Enable by default

    Working Temperature

    –30 °C to +65 °C (-22°F to +149°F)

    Application Humidity

    5%~95% (RH)

    General

    Power Input

    48 V - 57 V DC

    Lighting Protection

    Common mode 4 kV

    Differential mode 2 kV

    ESD Protection

    Air discharge 8 kV

    Contact discharge 6 kV

    Wall-mount Installation

    Yes

    Anti-theft Lock Hole

    Yes

    Weight

    0.67 kg (1.48 lb)

    Dimension

    150mm × 110mm × 42mm (5.91" × 4.33" × 1.65")
