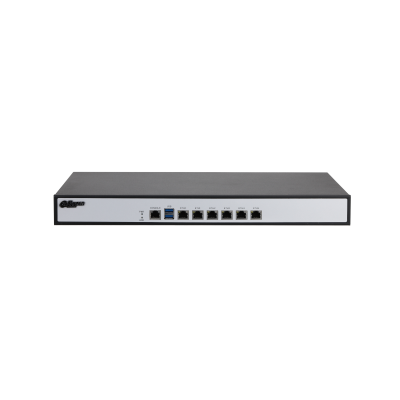

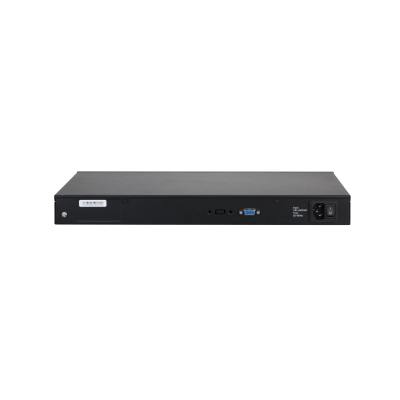

PFM888-AC

Wireless Access Controller

> Support up to 2048 access points and 65535 clients
> Support CAPWAP protocol
> Multi-level deivice management
> Support deployment in L2 or L3 network
> Auto-detect or detect by static IP
> Real-time monitoring of access points and clients


  • Specifications
  • Accessories
  • Download
  • Technical Specification

    Model

    DH-PFM888-AC

    Hardware

    · CPU: Intel Celeron J1900 Quad-Core Processer 2.4GHz

    · Memory: DDR3 8GB

    · Memory of CF card: 4GB

    · Internfaces: 10/100/1000M Base-TX *6 USB *2 Console *1

    · Dimension: 430 ×300 ×44.5(mm )(1U )

    · Power: AC 220V (75W)

    · Working Temperature: 0°C~50°C

    · Weight: 3.37kg

    Performance

    · Support up to 2048 access points

    · Support up to 65535 clients

    · Support up to 1024 templates

    Access Control

    · Portal, Radius

    · It's allowed only one user to log into the web management interface at the same time. If a new user logs into the web management interface,then the logged-in user will be logged out.

    Statistics

    · Platform: Device name, Firmware Version, IP address, CPU Usage, Memory Usage, Run Time, System Time

    · Device (Access Points): Total Units, Online Units, Offline Units

    · Terminal: Total Units, Online Units, Offline Units

    · Alarm

    Device/Terminal Management

    · Device:

    Status: Online, Offline, Unmanaged, Upgrading, Configurating, Failed to upgrade, Failed to configure, etc

    Device Name, Model, IP Address, MAC address, Firmware Version, Run Time, Template,Location, etc

    Wireless: Channel, Channel Width, Output Power, Maximum Transmission Rate, SSID, Encryption Method, TDMA

    Device/Terminal Management

    · Terminal

    CPE:

    Display online CPE, including following information:

    Status, Device Name, Model, IP Address, MAC Address, Location, Signal Strength, Transmission Rate, Firmware Version, Run Time

    Clients:

    Display online clinets which connects to AP, including:

    Clients Type(IOS, Android, PC), IP Address, MAC Address, Location, Signal Strength, Run Time

    · Support delete the offline device list

    · Support sort by Online, Offline, IP, MAC, Group Name, Firmware Version, Run Time

    · Clients Retrieve

    Template Management

    · Display current templates which have been saved

    · Template classification by device type

    · New or edit template, including following:
    Region, Channel, Channel Width, Output Power Setting, Multi-VAP, SSID, Hidden SSID Broadcast, Client Isolation, TDMA, Max User Limitation, Authentication/Encryption Method, Auto-match

    Image Management

    · Display Image Name, Version, File Size, Update Time

    · Support upload and storage image to device

    · Support Auto-upgrade

    · Support Batch-upgrade

    Configuration

    · Support save configuration to local PC

    · Support import configuration

    Log Management

    Log Classification, log export, log upload, log search

    Network and Security

    · Management Protocol: CAPWAP

    · Discovery Method: DHCP (Option43), Static IP, Broadcast

    · VLAN

    · DoS Protection

    Upgrade

    · Support upgrade via web

    · Service Interruption time via upgrade ≤ 7 minutes
